Large capacity 100kg/h-6t/h fully automatic dog cat pet food processing machine extruder equipment plant line
Price:
$19,000.00/sets 1-2 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
FLD
Product Description
PRODUCT SPECIFICATION
Large capacity 100kg/h-6t/h fully automatic dog cat pet food processing machine extruder equipment plant line
Our Pet Food Machine the characteristics of small floor area, flexible placement, easy operation, low energy consumption and large output. A variety of grains can be used as raw materials to produce different dog food. From the raw material to the final product packed in bags the whole process is automatically. It can produce the pet food contains high Protein (60%-70%) High automatically
(just need 2-3 operators)
(just need 2-3 operators)
PLC control
Product Digestibility can reach 70%
Name | Grinder machine |
Usage | corn, sorghum, wheats, beans, cottonseed meal,canola,etc.It can make these grain into flour. |
Motor | 7.5kw, 15kw, 22kw, 55kw, 75kw.... |
Capacity | 100kg/h to 2000kg/h |
Material | stainless steel, carbon steel |
Type | Hammer mill |
Name | Blender |
Usage | To mix the raw materials evenly, fast speed, no leakage. |
Type | including Single axle and double shaft mixer |
Motor | 3kw, 4kw, 7.5kw ,11.0kw,15.0kw,22.0kw.... |
Capacity | 20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. |
Material | stainless steel, carbon steel |

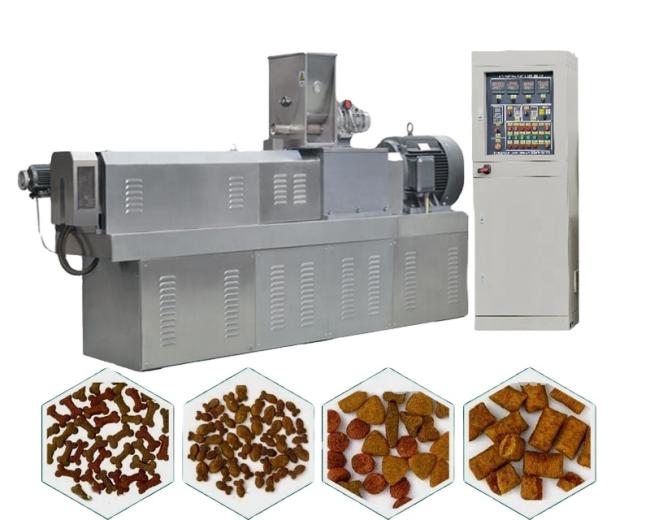

Name | Twin screw extruder(wet type/dry type) |
Usage | To extrude the raw materials and make them to the required shape and size of the fish feed pellets by mould |
Types | FLD 65, 70, 75, 90, 95, 120, 140,160.. |
Motor | 22kw, 30kw, 55kw, 75kw, 90kw, 110kw ,132kw.... |
Capacity | 50kg/h to 6000kg/h |
Material | Screw materials 38CrMoAl stainless steel, carbon steel |
Name | Dryer-Oven |
Usage | This dryer is used to dry final pet fish feed pellet after extruder before packing. |
Types | electrical, steam, gas fired, diesel fired heating type |
Motor | KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc. |
Capacity | 100kg/h to 6000kg/h |
Material | stainless steel, carbon steel |

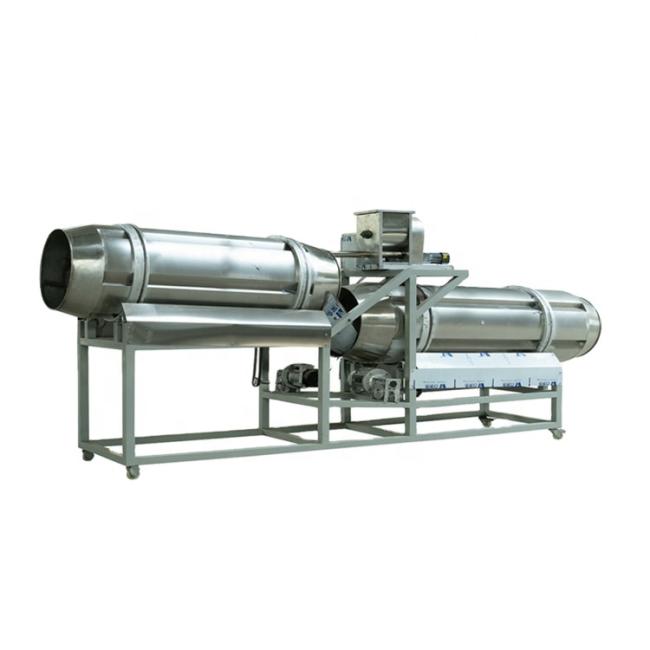

Name | FLavoring machine |
Usage | To mix the oil and flavors on the surface of the fish feed |
Types | single and double flavoring drum |
Motor | 0.75kw,1.5kw... |
Capacity | 100kg/h to 6000 kg/h |
Material | stainless steel |

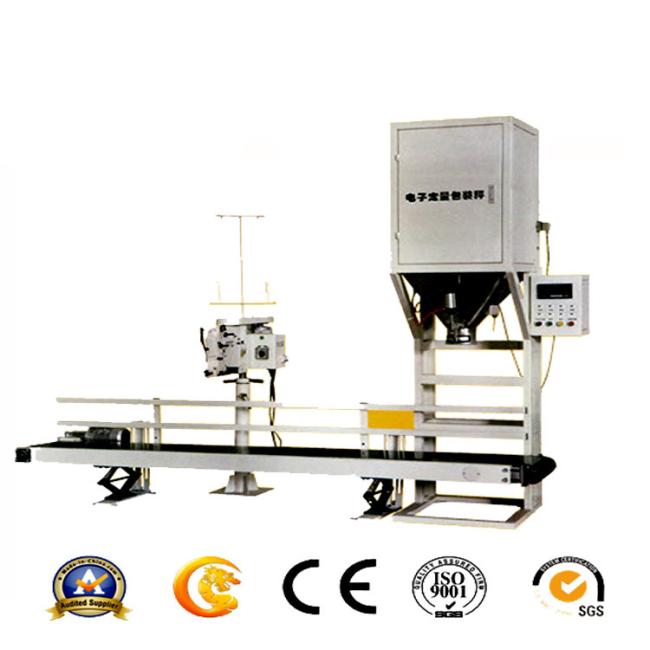

Name | Packing machine |
Usage | To pack the fish feed with required weight |
Types | Semi-Automatic |
Capacity | 1-5kg/bag, 5-25kg/bag, 25-50kg/bag |
Material | stainless steel, carbon steel |
FEATURES AT A GLANCE
*Wide range of applications, can adapt to a variety of production process, replaceable and adjustable screw can have different configurations to adapt different target product.
*Stainless steel DDC with 12 steam injectors and 6 liquid nozzles.
*The gearbox can stand strong torque and thrust up to 400hp.
*Jacket design barrel with liner can achieve heating/cooling function. Steam and water can also be injected directly into the barrel.
*Screw is made of special anti-wear alloy with L/D ratio up to 18:1 that assures smoothly production for all kinds of Automatic Stainless Steel Food Grade Pet Food.
*Fast replacing mechanism for die and screw and on-line adjustment for cutter.
*WF series of extruder has a special frequency control feeder, that assures the feeding process become more smooth and stable.
PRODUCT SAMPLE
PRODUCT PARAMETER
Many types of model with different capacity can be provided. You can choose the most suitable one as per your request.
GET MORE PRODUCTS
CUSTOMER FEEDBACK
Pre-sale services
1).Provide professional advisory services
2).Communicating with customer and learn your requirement
3).Welcome to visit our factory
Services during the sales
1).Confirm every terms and details and sign contract with customers
2).Inspect the machine before leaving the factory.
3).Packing machines and delivery on time
After-sale services
1). Provide installation, commissioning and training
2). Provide necessary technical support and update information
1).Provide professional advisory services
2).Communicating with customer and learn your requirement
3).Welcome to visit our factory
Services during the sales
1).Confirm every terms and details and sign contract with customers
2).Inspect the machine before leaving the factory.
3).Packing machines and delivery on time
After-sale services
1). Provide installation, commissioning and training
2). Provide necessary technical support and update information
PACKAGING& SHIPPING
FAQ
Q During epidemic period, how should we install the processing line without any experience?
Q How long is your machine's guarantee time?
A One year from the machine arrive at your factory.
Q Could we visit your factory to check the machine carefully and closely?
A You're more than welcome to visit Jinan FLD company, we will provide machine test running, face to face discussion and turkey project design solution.
A 1) Before delivery, we will take detailed operation video to show how to assemble each machine, how to operate and maintain the line.
2) Operation manual, circuit diagram etc in English version will be provided.
3) Online support available. If any questions during installation or production, our engineer will help to solve by video call or zoom meeting.
3) Online support available. If any questions during installation or production, our engineer will help to solve by video call or zoom meeting.
Q If we show our workshop size, can you design layout for the whole line?
A Auto CAD layout will be provided as client's workshop size.
A Auto CAD layout will be provided as client's workshop size.
Q If some parts break after warranty, what should we do?
A FLD supply full-life after sales service, whenever new parts needed, we will help to supply new replacements at reasonable price & in shortest time.
A FLD supply full-life after sales service, whenever new parts needed, we will help to supply new replacements at reasonable price & in shortest time.
Q How long is your machine's guarantee time?
A One year from the machine arrive at your factory.
Q Could you afford technician team to guide our installation and commissioning?
A Oversea commissioning service provided, our technician will help to install the machine, and teach local workers about operation and maintenance. Buyer should pay for the technician's round flight ticket, accommodation and salary.
A Oversea commissioning service provided, our technician will help to install the machine, and teach local workers about operation and maintenance. Buyer should pay for the technician's round flight ticket, accommodation and salary.
Q Could we visit your factory to check the machine carefully and closely?
A You're more than welcome to visit Jinan FLD company, we will provide machine test running, face to face discussion and turkey project design solution.
