Pet pellet dog food processing line making machine Extruder
Price:
$19,000.00/sets 1-1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
FLD
Product Description
PRODUCT SPECIFICATION
Dry Kibble Dog Food Extrusion Machine
With the development of pet food, the demand of high-quality product is also increasing. Our pedigree pet dog food processing making machine is a high automatic production line with almost ten years' research experience. The product is rich in nutrition and vitamin, and it also can be made in various shapes.

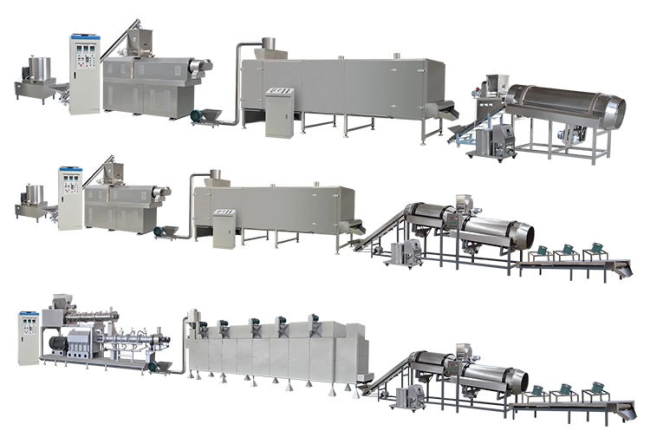

China is a major producer of pet food machines, offering a wide range of options for manufacturers of pet food. These machines can vary in size, complexity, and capabilities depending on the specific needs of the pet food manufacturer. Here are some common types of pet food machines used in China:
Name | Grinder machine |
Usage | corn, sorghum, wheats, beans, cottonseed meal,canola,etc.It can make these grain into flour. |
Motor | 7.5kw, 15kw, 22kw, 55kw, 75kw.... |
Capacity | 100kg/h to 2000kg/h |
Material | stainless steel, carbon steel |
Type | Hammer mill |
Name | Blender |
Usage | To mix the raw materials evenly, fast speed, no leakage. |
Type | including Single axle and double shaft mixer |
Motor | 3kw, 4kw, 7.5kw ,11.0kw,15.0kw,22.0kw.... |
Capacity | 20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. |
Material | stainless steel, carbon steel |
Name | Twin screw extruder(wet type/dry type) |
Usage | To extrude the raw materials and make them to the required shape and size of the fish feed pellets by mould |
Types | FLD 65, 70, 75, 90, 95, 120, 140,160.. |
Motor | 22kw, 30kw, 55kw, 75kw, 90kw, 110kw ,132kw.... |
Capacity | 50kg/h to 6000kg/h |
Material | Screw materials 38CrMoAl stainless steel, carbon steel |
Name | Dryer-Oven |
Usage | This dryer is used to dry final pet fish feed pellet after extruder before packing. |
Types | electrical, steam, gas fired, diesel fired heating type |
Motor | KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc. |
Capacity | 100kg/h to 6000kg/h |
Material | stainless steel, carbon steel |
Name | FLavoring machine |
Usage | To mix the oil and flavors on the surface of the fish feed |
Types | single and double flavoring drum |
Motor | 0.75kw,1.5kw... |
Capacity | 100kg/h to 6000 kg/h |
Material | stainless steel |
Name | Packing machine |
Usage | To pack the fish feed with required weight |
Types | Semi-Automatic |
Capacity | 1-5kg/bag, 5-25kg/bag, 25-50kg/bag |
Material | stainless steel, carbon steel |
FEATURES AT A GLANCE
*Wide range of applications, can adapt to a variety of production process, replaceable and adjustable screw can have different configurations to adapt different target product.
*Stainless steel DDC with 12 steam injectors and 6 liquid nozzles.
*The gearbox can stand strong torque and thrust up to 400hp.
*Jacket design barrel with liner can achieve heating/cooling function. Steam and water can also be injected directly into the barrel.
*Screw is made of special anti-wear alloy with L/D ratio up to 18:1 that assures smoothly production for all kinds of sinking/floating feed.
*Fast replacing mechanism for die and screw and on-line adjustment for cutter.
*WF series of extruder has a special frequency control feeder, that assures the feeding process become more smooth and stable.
PRODUCT SAMPLE
PRODUCT PARAMETER
Many types of model with different capacity can be provided. You can choose the most suitable one as per your request.
GET MORE PRODUCTS
CUSTOMER FEEDBACK
Pre-sale services
1).Provide professional advisory services
2).Communicating with customer and learn your requirement
3).Welcome to visit our factory
Services during the sales
1).Confirm every terms and details and sign contract with customers
2).Inspect the machine before leaving the factory.
3).Packing machines and delivery on time
After-sale services
1). Provide installation, commissioning and training
2). Provide necessary technical support and update information
1).Provide professional advisory services
2).Communicating with customer and learn your requirement
3).Welcome to visit our factory
Services during the sales
1).Confirm every terms and details and sign contract with customers
2).Inspect the machine before leaving the factory.
3).Packing machines and delivery on time
After-sale services
1). Provide installation, commissioning and training
2). Provide necessary technical support and update information
PACKAGING& SHIPPING
FAQ
1. Are you manufacturer or trader?
A: We are professional manufacturer for more than 16 years experience, with professional engineering and after-sales team.
A: We are professional manufacturer for more than 16 years experience, with professional engineering and after-sales team.
2. What service you supply?
A: We supply 7*24h service Pre-sale, in-sale and after-sale. ODM and OEM service are also available.
A: We supply 7*24h service Pre-sale, in-sale and after-sale. ODM and OEM service are also available.
3. Do you supply recipe to buyers?
A: Yes, we will supply all recipe and machine parameter setting to customers.
A: Yes, we will supply all recipe and machine parameter setting to customers.
4. If power supply different from yours, can you supply suitable machines?
A: Yes, motor voltage is customized, we will make it according to your requirements. Most commonly are 415V, 50/60HZ; 440V,50/60HZ and 220V, 60HZ.
A: Yes, motor voltage is customized, we will make it according to your requirements. Most commonly are 415V, 50/60HZ; 440V,50/60HZ and 220V, 60HZ.
5.Besides host extrusion line, what other accessories you can supply?
A: We are able to supply full turkey project, including pre-treatment machines and final packing system. It will complete solutionfrom A to Z.
A: We are able to supply full turkey project, including pre-treatment machines and final packing system. It will complete solutionfrom A to Z.
