National Standard Carbon Steel Material Pet Food Processing Line for High Productivity
1.Description of China Fish food pellet machine:
1.According to different requirements, variety shapes of high-grade feed pellets for fish, shrimps etc.
2.The finished pellets can keep floating for 12 hours without pollution to water.
3.The floating time can be controlled by the puffing degree adjustment
4.Floating feed extruder for pet feed can make pellet from diameter 1mm-12mm just by changing the mould.
5.Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.
6.The cutting device can be adjusted to make pellets of different length.
7.The wet type machine needs a boiler to make steam which can conduct steam to the conditioner and ripen the raw material in advance.
Mixer --- Screw conveyer --- Twin-screw extruder ---Air conveyer --- Layers Dryer --- Hoister---Oil sprayer --- Flavoring Roller --- Cooling conveyer --- sifter.
| Model | SLG65 | SLG70 | SLG75 | SLG85 | SLG95 |
| Installed power | 76kw | 95kw | 140kw | 178kw | 280kw |
| Production Capacity | 120-150kg/h | 200-260kg/h | 300-400kg/h | 400-600kg/h | 1.0-2.0 T/H |
| Size MM | 1600*1800*2000 | 1800*2000*2200 | 2000*2000*2200 | 2500*2600*3000 | 3000*3200*3500 |
wheat/ corn flour,rice flour,bean flour,wheat bran, fish meal, born powder, animal oil,fresh fish/meat,vegetable,fruit and so on
 | Raw material mixer Application:mix the raw materials, fast speed, no leakage. Capacity:20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. Material:stainless steel Power:3kw, 4kw, 7.5kw |
 | Screw feeder Application:convey the Power :1.5kw Capacity:equipment with the output Dimension:4000*590mm |

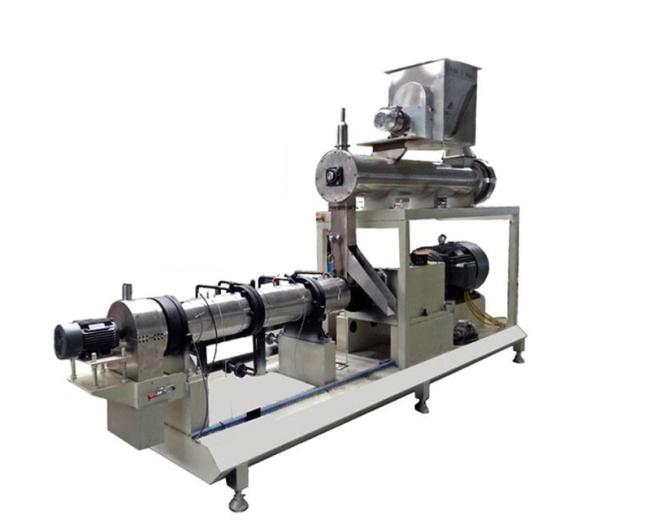

 | Steam Twin screw Fish food extruder Application:To make the raw materials into required shape and size Capacity:200-400kg/h(SLG75-W) Power:30kw, 37kw Working Principle: It consists of feeding system, extruding system, cutting system, heating system; main motor and controlling system. |
 | Air converyer Application:convey the shaped material to dryer oven Power:0.75,1.1,2.2kw(accorging to capacity) Capacity:100-150kg/h,220-250kg/h,800-1200kg/h Material:stainless steel |
 | Dryer Heating type:electrical, steam, gas fired, diesel fired heating type Capacity:100kg/h to 10 ton/h Material:stainless steel, carbon steel Working Principle:The heating source can be electric, gas, steam and fuel. The material is stainless steel 304. It consists of rack system, |
 | Flavoring machine Application:This device is applicable to a wide range of puffing corn snacks and fried snacks in seasoning and coating oil. Power:0.75kw Type:single drum or double drum Capacity:100kg/h to 500 kg/h Material:Stainless steel |
 | Cooling equipment Application:used to cool the final pet food and transfer pet food to packing machine Power0.75kw, 1.6kw Capacity:100-1200kg/h Material:stainless steel(backplate) Remarks:Optional equipment |
 | Packaging machine Usage:To pack the fish feed with required weight Type:Automatic Flowing Process: Manual Bag placing→Automatic filling→Automatic weighing→ Automatic bag conveyor→Automatic bag sewing or heat sealing Weight range:1-5kg/bag, 5-25kg/bag, 25-50kg/bag Material:stainless steel, carbon steel |
Packing: inside plastic bag, outside wooden case for Machine(Based on the customers' need adopt the wooden case or wooden pellets, etc.).
Delivery Details : 3-30 days after order
Jinan FLD Machinery Co; Ltd. is a professional supplier of food processing machines. Our company's Motto is: "Technology Makes Easy". We offer to cooperate with our customers for mutual and beneficial development.
We have through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.Our main products line include food extrusion machine, soya meal/meat processing machines, industrial micro wave oven, packaging machines, rice cake machine etc. Most importantly, we also provide formulas, technology supports, machine inspection service, etc.
If you have any questions about the China Fish food pellet machine, please don't hesitate to contact with us.
