Floating fish feed production line fish feed making processing extruder machine

1.Description of Tropical fish feed fish feed processing machine:

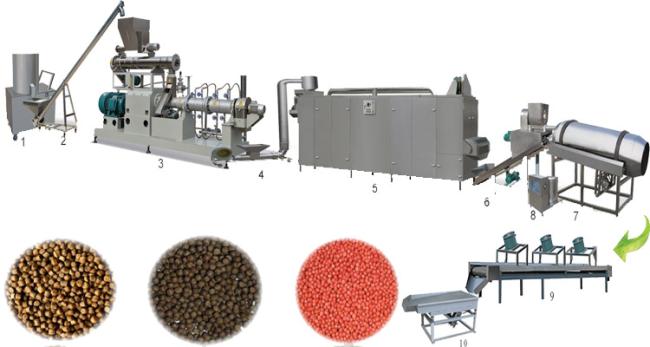

2.Tropical fish feed fish feed processing machine Flow chart:
Our engineer could design the layout drawing according to your dimension of the factory for the fish feed production line.

	Raw material mixer Application:mix the raw materials, fast speed, no leakage. Capacity:20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. Material:stainless steel Power:3kw, 4kw, 7.5kw
	Screw feeder Application:convey the    Power :1.5kw Capacity:equipment with the output Dimension:4000*590mm

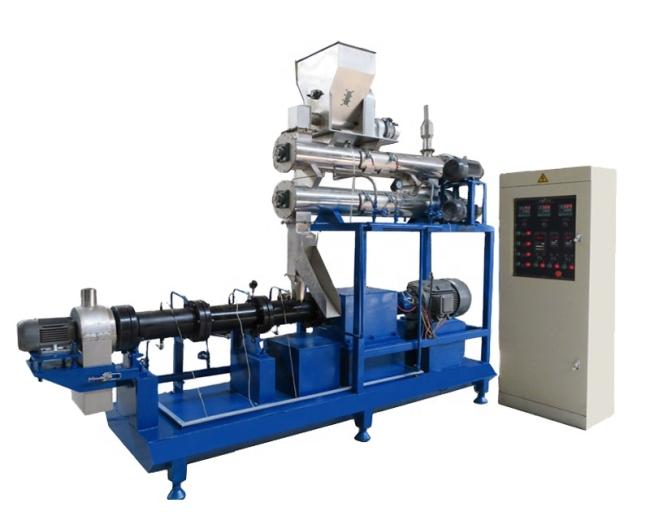

	Steam Twin screw Fish food extruder Application:To make the raw materials  into required shape and size Capacity:200-400kg/h(SLG70-W) Power:30kw, 37kw Working Principle: It consists of feeding system, extruding system, cutting system, heating system; main motor and controlling system.
	Air converyer Application:convey the shaped material to dryer oven Power:0.75,1.1,2.2kw(accorging to capacity) Capacity:100-150kg/h,220-250kg/h,800-1200kg/h Material:stainless steel

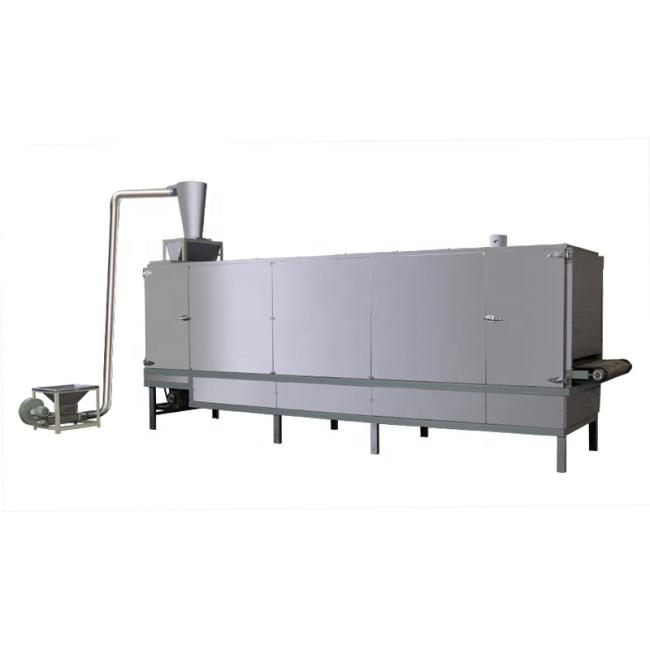

	Dryer Heating type:electrical, steam, gas fired, diesel fired heating type Capacity:100kg/h to 10 ton/h Material:stainless steel, carbon steel Working Principle:The heating source can be electric, gas, steam and fuel. The material is stainless steel 304. It consists of rack system, conmbustion system, dehumidifier system, sheet metal insulation system and controlling system.
	Flavoring machine Application:This device is applicable to a wide range of puffing corn snacks and fried snacks in seasoning and coating oil. Power:0.75kw Type:single drum or double drum Capacity:100kg/h to 500 kg/h Material:Stainless steel
	Cooling equipment Application:used to cool the final pet food and transfer pet food  to packing machine Power0.75kw, 1.6kw Capacity:100-1200kg/h Material:stainless steel(backplate) Remarks:Optional equipment

Pre-sale service:

24 hours online service.

Configue the machines as your output or request.

In sale service:

Strictly supervise the manufature of the machines

Convey the manufature information to you in time.

After sale service:

1 year warranty for the machines.

Overseas installation and train the first-line operators.

For any questions, professional technicians will solve for you timely.

Jinan FLD Machinery & Equipment Co., LTD., is a professional food machinery manufacturer in China. An exceptional engineering team, personal customer service center and high-quality manufacturing capabilities have evolved exponentially since our humble beginnings in 2004, making us one of the preeminent providers of reliable extrusion equipment world-wide. We can guarantee customers superior quality machines up to design requirements and perfect working state. Our technicians can also provide all kinds of relevant technology to make the food production clean, healthy and safe.

   We have through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.Our main products line include food extrusion machine, soya meal/meat processing machines, industrial micro wave oven, packaging machines, rice cake machine etc. Most importantly, we also provide formulas, technology supports, machine inspection service, etc.

If you have any questions about the Mini floting fish food machine, please don't hesitate to contact with us. We are looking forward to your inquiry and make a long business relationship with you in the future!
