65mm Screw Diameter Automatic Fish Feed Pellet Machine for Floating Fish Feed Production
1.Description of animal feed pellet fish food pellets production line:
Floating fish feed machine is widely used for producing grains into high-grade aquatic feed
pellets for fish, catfish, shrimps, crab etc. The puffing fish feed pellets can float on the water surface without dissolution for over 24 hours. According to your requirement and production scale, With different moulds, the machine can produce different diameter food, from 1mm to 10 mm. The food can meet different stage fish.
| Model | SLG65 | SLG70 | SLG85 | SLG95 |
| Installed power | 76kw | 95kw | 178kw | 280kw |
| Production Capacity | 120-150kg/h | 200-260kg/h | 400-600kg/h | 1000-1500kg/h |
| Size MM | 1600*1800*2000 | 1800*2000*2200 | 2500*2600*3000 | 3000*3200*3500 |

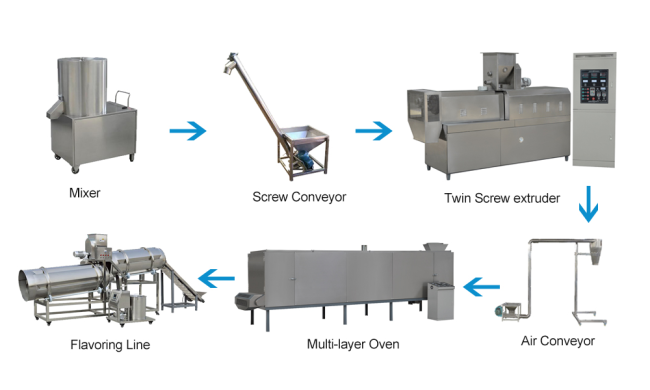

 | Installed Power: 4kw Consumption:3kw/h Output: 30kg/batch-40kg/batch Mixing Time:(2minutes-3minutes)/batch Size: 1030*920*1350mm | ||||||||||||
 | Screw feeder Application:convey the material Power :0.75kw Capacity:equipment with the output Dimension:3100*590*2200mm Material:stainless steel | ||||||||||||
 | Twin screw food extruder Application:To make the raw materials into required shape and size Type :SLG65, 70, 85,95 Capacity:100-150kg/h(SLG65) Power:22kw, 37kw, 75kw Material: Screw materials 38CrMoAl stainless steel, carbon steel. | ||||||||||||
 | Air converyer Application:convey the shaped material to dryer oven Power:0.75,1.1,2.2kw(accorging to capacity) Capacity:100-150kg/h,220-250kg/h,800-1200kg/h Material:stainless steel | ||||||||||||
 | Dryer Application:the expanded food go through the "s" passage, to be dried to increase the self life. Heating type:electrical, steam, gas fired, diesel fired heating type Capacity:100kg/h to 10 ton/h Material:stainless steel, carbon steel.
| ||||||||||||
 | Flavoring machine Application:To mix the oil and flavors on dry final pet food Power:0.75kw Type:single drum or double drum Capacity:100kg/h to 500 kg/h Material: Stainless steel 1.Spraying the oil in the roller. | ||||||||||||
 | Cooling equipment Application:used to cool the final pet food and transfer pet food to packing machine Power0.75kw, 1.6kw Capacity:100-1200kg/h Material:stainless steel(backplate) Remarks:Optional equipment | ||||||||||||
 |
|
Q1: what is your company after-sale service?
Our service is turn-key mode ,which include installment debugging and train
Our engineers available to service machine overseas .
We can free supply the basic formula of raw meterials
Q2: If machines wearable parts need to change, what should we do?
we can offer the wearable parts all the time ,and offer video
Q3: What is the payment terms if we want to buy the machines?
L/C T/T 30% down payment ,70% balance before delivery
