Customized Aquatic Floating Fish Feed Processing Machinery for Your Requirements
1.Description of floating fish feed pellet machine:
Aquatic Floating Fish food feed processing machinery uses meat meal, fish meal, corn powder, soya meal and other grains powder as main materials to make the fish food, pet food such as dog, cat, bird food etc. With different shapes and tastes by changing the dies and formulations. The fish and pet foods are made under high temperature condition, and popular to the pet food market.
1. The screw is made of alloy (38CrMoAL) by nitriding process, high strength and wear-resting. And it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
2. It adopts speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine guarantees stable materials feeding in the whole food process.
3. The gearbox has automatic lubrication function, with extends gear life.
4. Radiator is increased on driving part for forced cooling effect, and it ensures extruder operate safely.
5. Barrel with water-cooled circulation, raw materials not only for corn/rice, also for wheat flour/starch with high viscosity. Different moisture-extrusion temperature ratio, whole-expanded and half expanded as different type of products.
6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
| Model | SLG65 | SLG70 | SLG85 | SLG95 |
| Installed power | 76kw | 95kw | 178kw | 280kw |
| Production Capacity | 120-150kg/h | 200-260kg/h | 400-600kg/h | 1000-1500kg/h |
| Size MM | 1600*1800*2000 | 1800*2000*2200 | 2500*2600*3000 | 3000*3200*3500 |

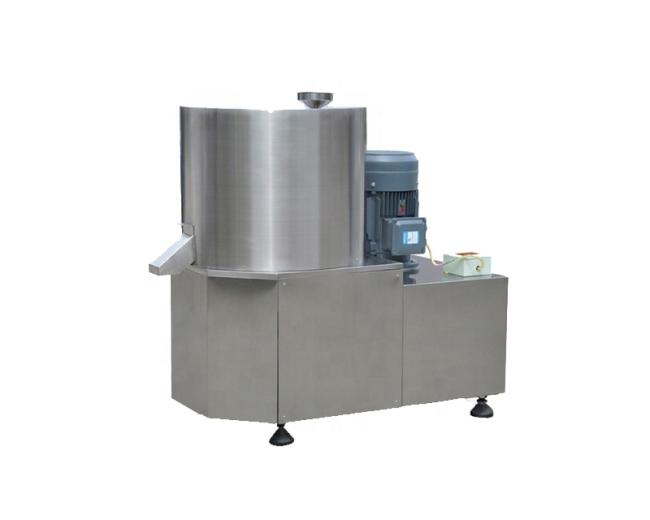

 | Raw material mixer Application:mix the raw materials, fast speed, no leakage. Capacity:20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. Material:stainless steel Power:3kw, 4kw, 7.5kw Dimension:880*510*1170mm | ||||||||||||
 | Screw feeder Application:convey the Power :0.75kw Capacity:equipment with the output Dimension:3100*590*2200mm Material:stainless steel | ||||||||||||

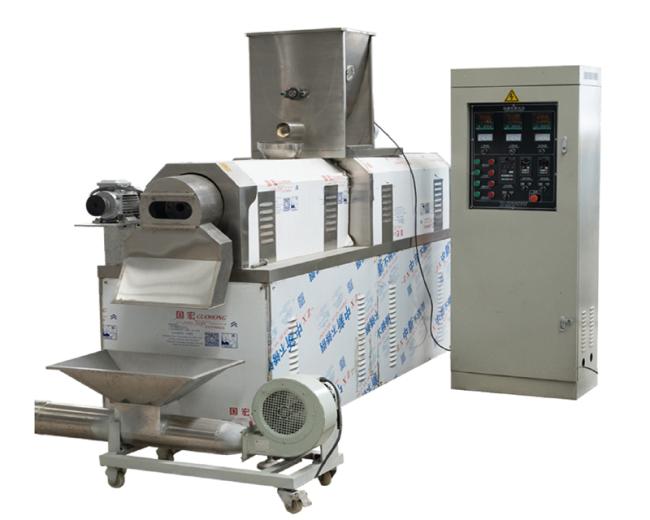

 | Twin screw extruder Application:To make the raw materials into required shape and size Type :SLG65, 70, 85,95 Capacity:100-150kg/h(SLG65) Power:22kw, 37kw, 75kw Material:Screw materials 38CrMoAl stainless steel, carbon steel | ||||||||||||

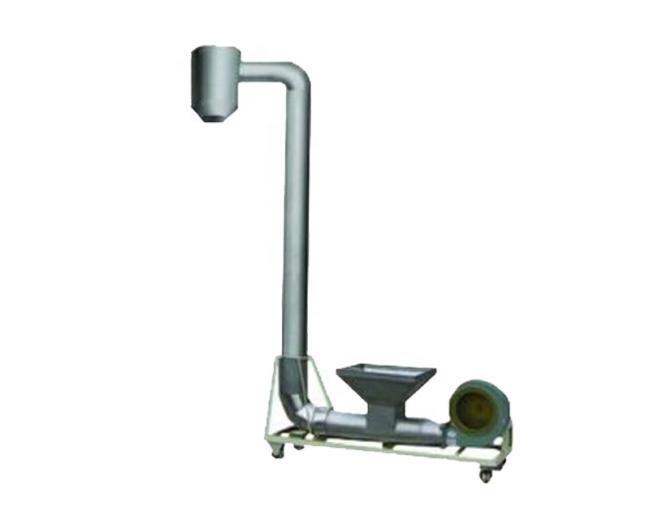

 | Air converyer Application:convey the shaped material to dryer oven Power:0.75,1.1,2.2kw(accorging to capacity) Capacity:100-150kg/h,220-250kg/h,800-1200kg/h Material:stainless steel | ||||||||||||
 | Dryer Application:the expanded food go through the "s" passage, to be dried to increase the self life. Heating type:electrical, steam, gas fired, diesel fired heating type Capacity:100kg/h to 10 ton/h Material:stainless steel, carbon steel | ||||||||||||

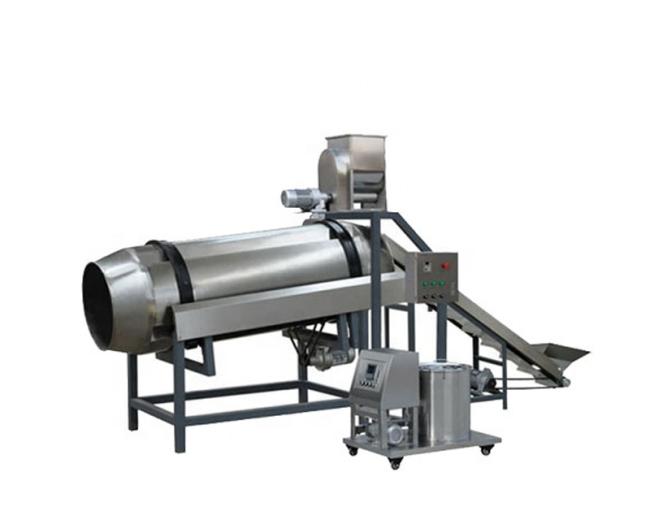

 | Flavoring machine Application:To mix the oil and flavors on dry final pet food Power:0.75kw Type:single drum or double drum Capacity:100kg/h to 500 kg/h Material:Stainless steel | ||||||||||||
 | Cooling equipment Application:used to cool the final pet food and transfer pet food to packing machine Power0.75kw, 1.6kw Capacity:100-1200kg/h Material:stainless steel(backplate) Remarks:Optional equipment | ||||||||||||
 |
|
1. Pre-sale Service
All you inquiry or email will be replied within 24 hours
we will offer your suitable price, suitable capacity machine according to your requirements.
2.On-purchase service
During producion period, we will update processing schedule and send you production pictures on time.When shipping machine ,we will choose best way(by air, by sea or by courier) to ship your machine accoring to your request.
Machine operation manual in English version And install video will be sent to you for reference.
3.After-sales
all machines have one year warranty.
We offer after sales service for 24 hours, Clients can contact us any time.
When some problems can't be solved by clients, our engineer will go to door to support.
