High automatic fish feed pellet processing machine 1.2-1.50t/h fish feed granule making machine
Price:
$19,000.00/sets 1-1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
FLD
Product Description
PRODUCT SPECIFICATION
High automatic fish feed pellet processing machine fish feed granule making machine
Fish feed pet food processing making machine fish feed milling machine is used for processing sinking and floating aquatic feeds for fish and for dogs and cats (pet food), birds,. Which is high and new technical program as to catch the developing pet food market. Pet food line mainly use maize, fish powder, meat powder and some food additive as main raw material, through mixing,extruding, roasting, flavoring to get the final puffed pet food. This line is fully automatic, high capacity and with different of
shapes. It can produce such as cat food, dog food, fish food, bird food and so on.

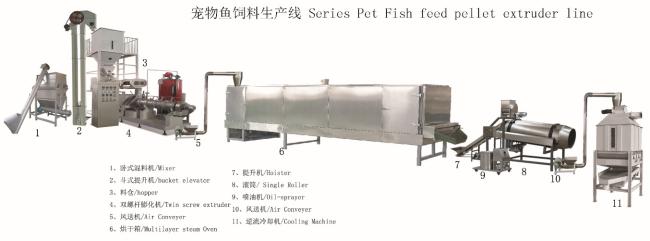

Ribbon Blender---Bucket Elevator---Storage Hopper---Conditioner---Twin Screw Extruder---Air Conveyor---Seven layer dryer---Air Conveyor---Oil Sprayer---Flavoring Roller---Cooling Conveyor---Air Conveyor---Sifter
Name | Grinder machine |
Usage | corn, sorghum, wheats, beans, cottonseed meal,canola,etc.It can make these grain into flour. |
Motor | 7.5kw, 15kw, 22kw, 55kw, 75kw.... |
Capacity | 100kg/h to 2000kg/h |
Material | stainless steel, carbon steel |
Type | Hammer mill |
Name | Blender |
Usage | To mix the raw materials evenly, fast speed, no leakage. |
Type | including Single axle and double shaft mixer |
Motor | 3kw, 4kw, 7.5kw ,11.0kw,15.0kw,22.0kw.... |
Capacity | 20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. |
Material | stainless steel, carbon steel |
Name | Twin screw extruder(wet type/dry type) |
Usage | To extrude the raw materials and make them to the required shape and size of the fish feed pellets by mould |
Types | FLD 65, 70, 75, 90, 95, 120, 140,160.. |
Motor | 22kw, 30kw, 55kw, 75kw, 90kw, 110kw ,132kw.... |
Capacity | 50kg/h to 6000kg/h |
Material | Screw materials 38CrMoAl stainless steel, carbon steel |
Name | Dryer-Oven |
Usage | This dryer is used to dry final pet fish feed pellet after extruder before packing. |
Types | electrical, steam, gas fired, diesel fired heating type |
Motor | KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc. |
Capacity | 100kg/h to 6000kg/h |
Material | stainless steel, carbon steel |
Name | FLavoring machine |
Usage | To mix the oil and flavors on the surface of the fish feed |
Types | single and double flavoring drum |
Motor | 0.75kw,1.5kw... |
Capacity | 100kg/h to 6000 kg/h |
Material | stainless steel |
Name | Packing machine |
Usage | To pack the fish feed with required weight |
Types | Semi-Automatic |
Capacity | 1-5kg/bag, 5-25kg/bag, 25-50kg/bag |
Material | stainless steel, carbon steel |
FEATURES AT A GLANCE
1. Speed control technology of frequency converter is adopted to make the equipment run more smoothly and save electricity.
2. Screw and machine tube are heat treated with alloy steel, high hardness and long life,using a modular structure, can be combined arbitrarily.
3. Screw and machine tube are heat treated with alloy steel, high hardness and long life,using a modular structure, can be combined arbitrarily.
4. Automatic temperature control system to make the temperature control more intuitive, more accurate parameters;
5. Screw has self - cleaning function, no need to remove screw cleaning when stop.
PRODUCT SAMPLE
PRODUCT PARAMETER
GET MORE PRODUCTS
CUSTOMER FEEDBACK
Pre-Sales Services
1 We can provide the customized services according our customers’ needs.
2 We can provide online consulting services whenever and whatever possible.
3 We can provide the testing machine services according our customer’s demands.
4 We can provide the designed drawing about equipment layout and other details.
5 We are welcome our customer can visit our factory and give the most detailed introduction.
6 We can scrupulously check the machine before delivery.
7 We can provide the installed/operation/services maintenance manual in English version.
8 We can inform you the products processing before delivery.
9 We can provide 1 year complete warranty and life-time maintenance service.
After-Sale Services
1 We will sent more than 2 years experience engineer to provide on-site free installation, commissioning and training services to
offer the buyer technical support.
2 We will provide free training of equipment maintenance and operating personally.
3 We will provide the formulas and clean and maintenance technical support.
4 We can provide online video services to provide help if have something urgent.
5 All spare parts and wearing parts are attached with the machinery for free.
1 We can provide the customized services according our customers’ needs.
2 We can provide online consulting services whenever and whatever possible.
3 We can provide the testing machine services according our customer’s demands.
4 We can provide the designed drawing about equipment layout and other details.
5 We are welcome our customer can visit our factory and give the most detailed introduction.
6 We can scrupulously check the machine before delivery.
7 We can provide the installed/operation/services maintenance manual in English version.
8 We can inform you the products processing before delivery.
9 We can provide 1 year complete warranty and life-time maintenance service.
After-Sale Services
1 We will sent more than 2 years experience engineer to provide on-site free installation, commissioning and training services to
offer the buyer technical support.
2 We will provide free training of equipment maintenance and operating personally.
3 We will provide the formulas and clean and maintenance technical support.
4 We can provide online video services to provide help if have something urgent.
5 All spare parts and wearing parts are attached with the machinery for free.
PACKAGING& SHIPPING
• Inside package is plastic film, outside is wooden or plywood case(based on the customers’
need).
• Only plastic film nude packing with wooden pallet.
• We can supply fumigation package and certificate.
• Shipping, train, express or upon clients' demands.
need).
• Only plastic film nude packing with wooden pallet.
• We can supply fumigation package and certificate.
• Shipping, train, express or upon clients' demands.
FAQ
Q: Are you a trade company or a manufacturer?
A: we are a manufacturer, welcome to visit our factory and check the machines.
A: we are a manufacturer, welcome to visit our factory and check the machines.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss before
contract.
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss before
contract.
Q: Could you supply all the parameters about the machines?
A: Yes, we will supply all the parameters, price, layout drawing, factory design etc.
A: Yes, we will supply all the parameters, price, layout drawing, factory design etc.
Q: What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shippment after inspection.
A: 30% T/T in advance , 70% balance before shippment after inspection.
: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
Q:do you supply any formula to buyer?
A: yes, we supply formulas to buyer.
