Factory wholesale sinking fish feed processing line multifunctional Aquatic feed processing line
Price:
$19,000.00/sets 1-1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
FLD
Product Description
PRODUCT SPECIFICATION

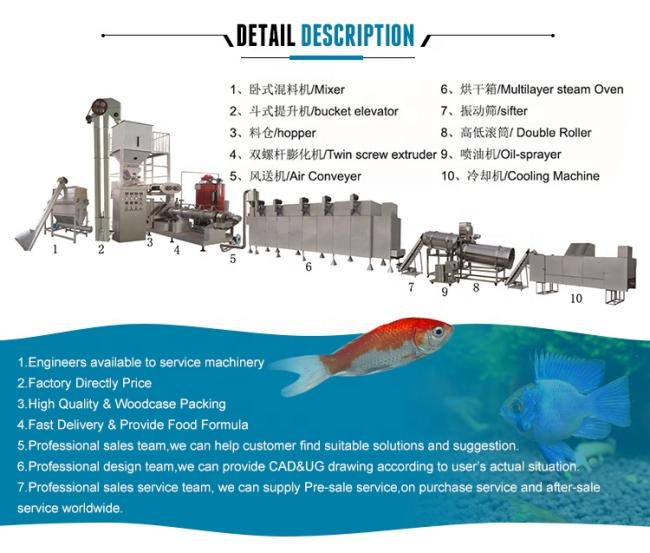

Factory wholesale sinking fish feed processing line multifunctional Aquatic feed processing line
1. Extruder for fish feed production process is deliberately made for special feed, which needs high in-shape rate and good-looking appearance. fish feed production process is mainly used for sinking
floating/slow sinking fish feed. Effectively protect the aquaculture water body from pollution to improve the quality of life.
2. Raw materials: adopts corn flour, fish meal as raw materials
3. Products: fish feed process line can be used to produce fish pellets, the pellets size can be from 0.6mm to 9.0mm by adjusting
the moulds from extruder; meanwhile it can produce dog food, cat food and so on.
4.how to produce the floating fish food .we should control the pressure(30-40Mpa)/tempreture(120-160degree)/water in the barrel .
Name | Grinder machine |
Usage | corn, sorghum, wheats, beans, cottonseed meal,canola,etc.It can make these grain into flour. |
Motor | 7.5kw, 15kw, 22kw, 55kw, 75kw.... |
Capacity | 100kg/h to 2000kg/h |
Material | stainless steel, carbon steel |
Type | Hammer mill |
Name | Blender |
Usage | To mix the raw materials evenly, fast speed, no leakage. |
Type | including Single axle and double shaft mixer |
Motor | 3kw, 4kw, 7.5kw ,11.0kw,15.0kw,22.0kw.... |
Capacity | 20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. |
Material | stainless steel, carbon steel |
Name | Twin screw extruder(wet type/dry type) |
Usage | To extrude the raw materials and make them to the required shape and size of the fish feed pellets by mould |
Types | FLD 65, 70, 75, 90, 95, 120, 140,160.. |
Motor | 22kw, 30kw, 55kw, 75kw, 90kw, 110kw ,132kw.... |
Capacity | 50kg/h to 6000kg/h |
Material | Screw materials 38CrMoAl stainless steel, carbon steel |
Name | Dryer-Oven |
Usage | This dryer is used to dry final pet fish feed pellet after extruder before packing. |
Types | electrical, steam, gas fired, diesel fired heating type |
Motor | KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc. |
Capacity | 100kg/h to 6000kg/h |
Material | stainless steel, carbon steel |
Name | FLavoring machine |
Usage | To mix the oil and flavors on the surface of the fish feed |
Types | single and double flavoring drum |
Motor | 0.75kw,1.5kw... |
Capacity | 100kg/h to 6000 kg/h |
Material | stainless steel |
Name | Packing machine |
Usage | To pack the fish feed with required weight |
Types | Semi-Automatic |
Capacity | 1-5kg/bag, 5-25kg/bag, 25-50kg/bag |
Material | stainless steel, carbon steel |
FEATURES AT A GLANCE
1.Our Fish Feed Machine can produce the floating fish feed and Sinking fish feed, It can also produce the Shrimp feed.
2.This machine is suitable for fish farmer, fish feed factory.
3.The fish feed size from diameter 1mm to 20mm It use Corn, soya meal, wheat bran, Fish meal, shrimp meal as the main raw material
4.The Fish feed Machine is high automatically work From the raw material to the final product packed in bags the whole process is automatically.
5.High automatically (just need 2-3 operators) Machine temperature and speed is automatic control
6.It produce the fish feed is suitable for small fish and big fish It can use Fresh meat as the raw material. Big output (From 100kg/hour to 2500kg/hour)
PRODUCT SAMPLE
PRODUCT PARAMETER
GET MORE PRODUCTS
CUSTOMER FEEDBACK
1. Free consultation service before, during, and after sales;
2. Free Project planning and design services upon clients' special demands;
3. Debugging and inspecting of equipment until everything is functional before leaving the factory;
4. Overseas installation and training of equipment maintenance and operating personally;
5. Provide basic production techniques and formulas;
6. 1 year complete warranty for Pet Food Machine.
PACKAGING& SHIPPING
FAQ
Q: Are you a trade company or a manufacturer?
A: we are a manufacturer, welcome to visit and check the machine to my factory.
A: we are a manufacturer, welcome to visit and check the machine to my factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is according to quantity.
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
A: 30% T/T in advance ,balance before shippment.
Q: How about the after-service?
A: We will send 1 engineer to the buyer’s factory for a 10-day period installation and training to the operators.
A: We will send 1 engineer to the buyer’s factory for a 10-day period installation and training to the operators.
Q:do you supply any formula to buyer?
A:yes, we supply formula to buyer.
A:yes, we supply formula to buyer.
