High Capacity Dry Cat Pet Food Production Line Fish Feed Dog Food Making Machine
1.Description of Pet Dog Catfish Food Processing Machine:
The products are cooked and sterilized with high degree and high pressure of the extruder, so it is easy to be absorbed and popular to the pet market.

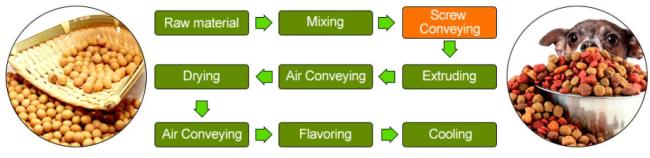

Mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→cooling machine→packing machine
1.Raw Materials: Meat Meal, Fish Meal, Corn Powder, Soya Meal and Other Grain Powder.
2.Products: Pet Food, Like Dog, Cat, Fish, Bird Food etc. with Different Shapes and Tastes byChanging the Dies and Formulations
3.Dry Pet Food Processing Machine Dog Food Cat Food Production Machinery Capacity: 120-150 KG/H,200-250 KG/H,400-500 KG/H,800-1000 KG/H.
4.Voltage:Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers' local voltage according to different countries.
6.Technical Parameter:
| Model | SLG65 | SLG70 | SLG75 | SLG85 | SLG95 |
| Installed power | 76kw | 95kw | 130 | 178kw | 280kw |
| Production Capacity | 120-150kg/h | 200-260kg/h | 300-400KG/H | 400-600kg/h | 1000-1500kg/h |
| Size MM | 1600*1800*2000 | 1800*2000*2200 | 2200*2000*2200 | 2500*2600*3000 | 3000*3200*3500 |
8.Dog food making machine Product Details:
| 1 | Raw material mixer Application:mix the raw materials, fast speed, no leakage. Capacity:20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. Material:stainless steel Power:3kw, 4kw, 7.5kw Dimension:880*510*1170mm |
| 2 | Screw feeder Application:convey the Power :0.75kw Capacity:equipment with the output Dimension:3100*590*2200mm Material:stainless steel |
| 3 | Twin screw extruder Application:To make the raw materials into required shape and size Type :SLG65, 70, 85,95 Capacity:100-150kg/h(SLG65) Power:22kw, 37kw, 75kw Material:Screw materials 38CrMoAl stainless steel, carbon steel |
| 4 | Air converyer Application:convey the shaped material to dryer oven Power:0.75,1.1,2.2kw(accorging to capacity) Capacity:100-150kg/h,220-250kg/h,800-1200kg/h Material:stainless steel |
| 5 | Dryer Application:the expanded food go through the "s" passage, to be dried to increase the self life. Heating type:electrical, steam, gas fired, diesel fired heating type Capacity:100kg/h to 10 ton/h Material:stainless steel, carbon steel |
| 6 | Flavoring machine Application:To mix the oil and flavors on dry final pet food Power:0.75kw Type:single drum or double drum Capacity:100kg/h to 500 kg/h Material:Stainless steel |
| 7 | Cooling equipment Application:used to cool the final pet food and transfer pet food to packing machine Power0.75kw, 1.6kw Capacity:100-1200kg/h Material:stainless steel(backplate) Remarks:Optional equipment |
• Inside package is plastic film, outside is wooden or plywood case (Inflated kibble small wet dog energy saving pet cat food processing machine packaging based on the customers' need)
• Only plastic film nude packing with wooden pallet.
• We can supply fumigation package and certificate.
• Shipping, train, express or upon clients' demands.
Jinan FLD Machinery Co,.Ltd is a leading manufacturer for snack food extruder. We have many years' experience of making extruder machines and providing special customize service.We can provide customers with personalized equipment or complete plant layout and production lines to meet customer needs.
Our Services
As Inflated kibble small wet dog energy saving pet cat food processing machine manufacturer, Jinan FLD Machinery Co,.Ltd has exported automatic production line to more than 80 countries and regions, such as South Africa, India, Malaysia, Indonesia, Brazil and so on.
If you are interested in pet dog food making machine,kindly contact us!
