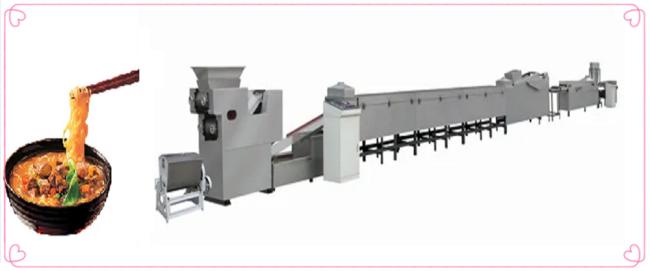

Mini Automatic Fast Food Frying Instant Noodle Making Machine

Automatic stainless steel equipment fried instant noodle production line compact structure,original design and stable performance,is developed on the base of like produces and requirements in the world market,it realizes high automation ,convenient operation,low energy and small floor space ,that assures all working procedures from feeding flour to finished products can be accomplished once.

1. Raw Materials: Wheat Flour
2. Products: Instant Noodle
3. Capacity: 11000PCS/8H
4. Flow Chart: Mixing -Shaping -Boiling -Frying-Cutting -Cooling
5. Voltage:380V/50HZ/Three Phase, 220V/50HZ/Single Phase or Change As Required
6. Machines Materials: All the machines are made by food grade stainless steel.

1. Mixer / Dough maker

The main function of Flour Mixer is to mix flour, salt, alkali, water and other additives evenly, this is the first step of instant noodle producing.
Technical parameter:
Power: 3 KW
Capacity: 50 kg/time
Dimension:1100×650×800 mm

2. Double pressing shaper

1.  This equipment consists of five pairs of down rollers and wave formers.
2. Function: press the mixed raw material to belt shape, and roller pressing the belt make it thinner, at last a cutting knife will cut it to strips and the wave former will make wave shape on each strip.
3.  The speed of this equipment is adjusted by a transducer which is easy to control and operate.

3. Boiling Machine

1. This equipment consists of body frame, boiling cases, conveying belt and steam pipelines.
2. Wave shaped noodle strips will be cooked by the steam when it goes through the case and it will have the strength and transparency characteristic after boiling.
3. The speed is adjustable which can be compatible with the Pressing shaper

Frying machine

1. This equipment consists of stainless frame, oil container, heat exchanger, driving part, fried shaping case and shaper part.
2. The main function of this equipment is to fry the boiled noodle and dehydrate it, after the frying, the noodle pieces will become square shape or round shape, each piece will be identical.

Cooling machine

This equipment consists of body frame, cooling machine and conveying bet, its duty is to cool the fried noodle piece rapidly.
Technical parameter:
Conveying speed: auto shift gears

We are a professional food machines manufacturer in Jinan City, China. We have much experience in Extrusion snack food processing, including Directly puffed snack food machine, Shaping and core filled snack food machine, Fried Crispy snack food machine, Popular Breakfast cereal Corn Flakes machine, Baby food machine, TVP/TSP machine, Modified Starch machine, Dog food machine and Fish food machine etc.

1. Free consultation service before, during, and after sales;

2. Free Project planning and design services upon clients' special demands;

3. Debugging and inspecting of equipment until everything is functional before leaving the factory;

4. Overseas installation and training of equipment maintenance and operating personally;

5. Provide basic production techniques and formulas;

6. 1 year complete warranty for korea puffed popped rice cake machine.
