Portable Grain Flour Powder Grinder Corn Mill Grinding Machine Spice Milling Crushing Machine for Corn
1) Simple structure in new design structure ,easy in installation and maintainance.
2) Adopting advanced toothed disc mill technology to get high quality powder.
3) Powder mesh size can be 0.06mm, 1.2mm, and 3,5mm according to customer's requirements.
4) Running in a high automatization and working stably, very low rate of shutdown or other faults problems.
5) Small in size but big in capacity, suitable for commercial scale production.
6) Low investment and high payback.
Other models in different capacities, please see below.

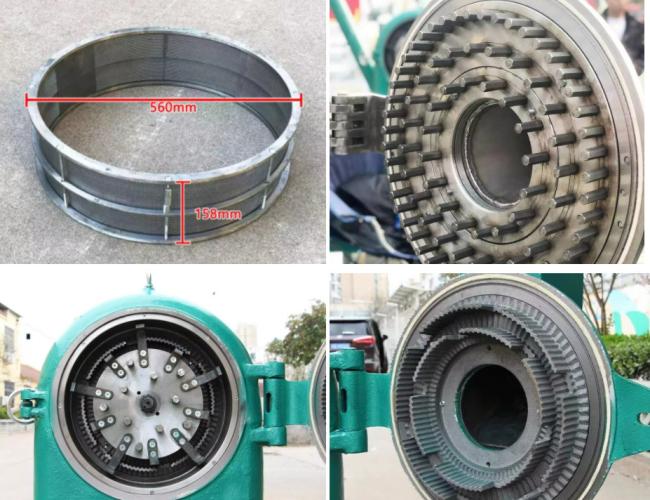

Grinding chamber(Note: the grinding chamber is made from high quality 45 steel, then through heating treatment process, which will be stronger and good abriasion resistant.)
| Model | FSJ-15 | FSJ-23 | FSJ-36 | FSJ-45 |
| Rotary speed | 9000rpm | 5800rpm | 3600rpm | 3000rpm |
| Rotator diameter | 150mm | 230mm | 370mm | 450mm |
| Blade QTY | 3 | 4 | 4 | 5 |
| Knuckle gear QTY | 8 | 8 | 8 | 12 |
| Circles of square gear | 1 | 2 | 2 | 2 |
| pitch | 9 | 19 | 16.5 | 16.5 |
| Sieve size | 0.6, 1.2mm | 0.6, 1.2, 3.6mm | 0.6, 1.2, 3.6mm | 0.6, 1.2, 3.6mm |
| Motor | 1.1kw | 3kw | 7.5kw | 11kw |
| Dimension | 565*305*610mm | 800*500*1000mm | 1050*680*1325mm | 1150*755*1425mm |
| Capacity | 55kg/h | 180kg/h | 450kg/h | 650kg/h |
| Weight | 18kg | 65kg | 158kg | 224kg |
Corn, wheat, rice, rice soaked in water, soybean, salt, sugar, seasoning, pepper, pepper, Chinese herbal medicine milling, feed, soybean meal, bran, corncob, rice shell, shell, oyster shell, bamboo powder, wood powder, down, feather, carbon powder, graphite, chemical fertilizer, asphalt, gypsum, pigment, rosin, magnesium chloride, wet caking materials, etc
1).Disk mill is suitable for home, small factory or unit use.
2).It is small, strong and reliable. It can use single phase 2.2kw motor. It can work without motor power.
3).It is mostly wide use crushing machine. In life and industrial activities, it is really an ideal all purpose crushing machine.
1) All kind of grains of corn, sorghum, rice, soybean, etc.
2) Water soaked soybean.
3) All kind of animal feed
4) Chemical industrial material
5) Herbal medicine
6) Agricultural plant including fresh sweet potato, fresh potato, pepper, fresh fruit, etc.
7) Pepper etc spice material
8) Peanut hull, rice hull, wheat hull, corn cob, tree bark, leaves, straws.
9) Shrimp, fish powder, sea food
10) Dehydrated vegetables, cakes, tea. Etc.
11) Gypsum powder
12) Metal calcium
13) Wine factory
14) Fish bone factory.
Q:Can your company accept the customized product?
A:Yes,OEM &ODM service is available.We can make the products according to your size,design,color,that will be better if you can send us the product pictures for our reference.
Q:Can we order a sample to see the product quality?
A:Yes,of course.
Q:What is your MOQ?
A:Depending on your needs.
Q:Can we order a trial order to test the market?
A:Yes,we very wecome.
Q:Can the product be printed our Logo?
A:Yes
Q:How is delivery?
A:5-25days after design confirm.
Q:What about Payment term?
A:30% TT deposit+70% TT before loading(70% against B/L coppy for repeat order cutomers)
