Corn Flakes Processing Machinery
Corn Flakes Processing Machinery Information:
Corn flakes/breakfast cereals are a kind of breakfast with high nutritional value. They usually use corn powder and other cereals as main raw material, through mixing, extruding, flaking, drying, baking, coating and cooling, to get crispy flakes. It always service as breakfast cereal mixed with milk of coffee. But it can also be a kind of leisure snacks. This process line can also make other shapes of cereals such as rings, balls, chocos, curls etc
1.Flour mixer : to mix various raw materil evenly.
2.Screw conveyor : to convey raw material to extrude

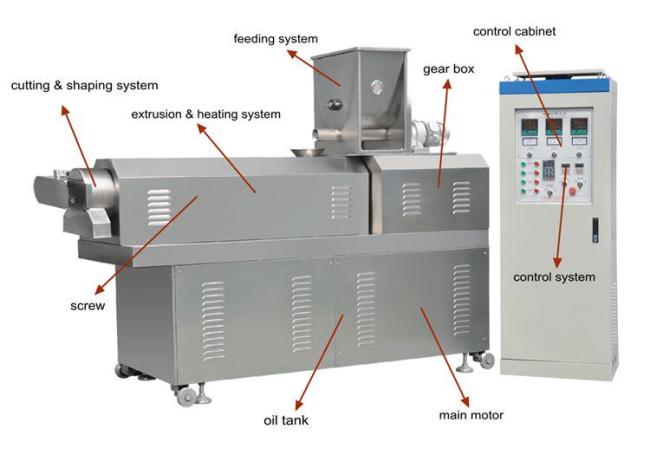

3.Twin/Double screw extruder :to extruder and cook the raw material into different shapes breakfast cereal
4.Water injector: to inject water on the producing process.
5.Vibrating cooler: to spread the products and cool it quickly.
6.Air conveyor: to convey the food to the next machine
7.Flakes presser: to press the particles into thin flakes (its size of flakes can be adjusted)
8.Higher vibrating cooler: to spread the flakes and sancks food and cool it quickly.
9.Belt drying oven: to dry snacks food by circulating belt.
10.Belt conveyor: to elevate the snacks food to the next machine
11.High temperature toaster: to use hot air to dry the snacks food.
12.Flavoring machine: to spray flour ,sugar oil and other seansons on the food to get decilious food.
13.Extending drying oven: to dry the corn flakes after it being coated sugar.
14.Cooling conveyor: to cool food.
| Model | SLG65-III | SLG70-III | SLG85-III |
| Install Power | 76KW | 95kw | 178kw |
| Power Consumption | 54KW | 66kw | 125kw |
| Capacity | 80-120KG/H | 150-200kg/h | 280-350kg/h |
| Dimension | 40×3×2.5m | 45×3×4m | 48.5×5×4m |
6.Chocolate Sweet Flavored Corn Flakes Processing Line Main Features:
1. The screws are made by alloy steel (38CrMoAL) and special craft by nitriding process, The HRC hardness is around 60---62, it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
2. The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel coating.
3. The gearbox has automatic lubrication function, with extends gear life.
4. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
5. SIEMENS(CHINA) brands electronic parts used in the controller box, make sure the extrusion process perfect.
6. Main Motor from SIEMENS(CHINA), ensure its powerful extrusion and excellent performance.
Packing and delivery
• Inside package is plastic film, outside is wooden or plywood case(based on the customers'
need).
• Only plastic film nude packing with wooden pallet.
• We can supply fumigation package and certificate.
Jinan FLD Machinery Co., Ltd. is a professional supplier of food processing machines. Our company's Motto is: "Service and quality are equally important". We offer to cooperate with our customers for mutual and beneficial development. All Inquiries are welcome.
A. ) Consultation service before, during, and after sales;
B. ) Project planning and design service;
C. ) Debugging of equipment until everything is functional;
D. ) Management of equipments' long distance shipping from seller's factory to the named place by buyer;
E. ) Training of equipment maintenance and operating personally;
F. ) New production techniques and formulas;
G. ) Provide 1 year complete warranty and life-time maintenance service.
