Frying Potato Pellet Snacks Chips Making Machine
1. Automatic Frying Potato Pellet Snacks Chips Making Machine Information:
As the professional manufacturer of the automatic batch fryer machine which basics on customer's demands, we designed top quality whole line solution for satisfying different capacity demands. The batch fryer machine uses electricity/gas as the heat source, manual discharging, automatic stirring, and simple operation. The fryer has the automatic temperature control system , also multi-functional industrial fried pellet snacks batch frying equipment can separate inferior oil, which is completely safe and easy to clean.
(1).Frying Potato Pellet Snacks Chips Making Machine Production process:

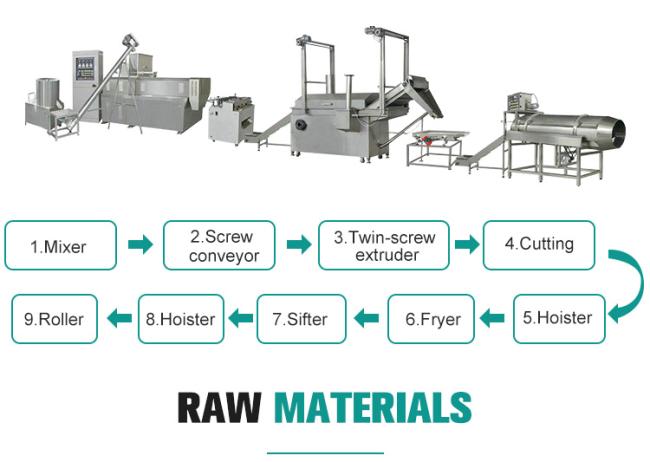

Raw material→flour Mixing→extruding→cooling→drying→Frying→conveying→hoisting→flavoring→(packing )
(2).Frying Potato Pellet Snacks Chips Making Machine configuration:
1.Flour Mixer
The first step of food processing is to mix various raw materials, additives, and a certain amount of water and stir evenly. Built-in "work" type structure, features: uniform and fast mixing.
2. Feeder
The mixed raw materials are conveyed to the forming machine by means of spiral rotation and lifting. The parts in contact with the raw materials are made of stainless steel, and the food is transported in a closed space, which is clean and hygienic.
3. Forming Machine
The most important step in making food, its role is to make the material change under the thrust of the screw in the closed barrel of high temperature and high pressure close to vacuum, and then discharged through the mold and formed.
4. Compound Molding Machine
The compound molding machine is to extrude and compound the blank material made by the extruder into various shapes through multiple pairs of rollers. By changing the mold, various shapes of food can be produced.
5. Hoist Machine
The finished products are promoted to the next production equipment through the food-grade conveyor belt.
6. Continuous Fryer
Continuous frying machine has single layer and double layer. The food can be turned over automatically. The output is large and the efficiency is high. The temperature is freely controlled, and the finished product has no crushing rate.
7. Vibrating Screen
The vibrating screen has two functions:
1. It can separate the adhered food;
2. Remove excess fat from fried foods.
8. Single Drum Seasoning Line
The single drum seasoning line has a powder and oil spray system, through the rolling of the cylinder, the powder or syrup is evenly wrapped on the surface of the food.
Frying Potato Pellet Snacks Chips Making Machine
| Model | SLG65-III | SLG70-III | SLG85-III |
| Install Power | 76KW | 95kw | 178kw |
| Power Consumption | 54KW | 66kw | 125kw |
| Capacity | 120-150KG/H | 240-260kg/h | 300-500kg/h |
| Dimension | 17×2×2.5m | 22×2×2.5m | 26×2×3.5m |
a. We can keep product design in the same level with internationally advanced technology consistently.
b. We have high diathesis staff and excellent processing equipment, and quality control runs through the whole production process from parts stock to the beginning of production.
c. We can guarantee customers superior quality machines up to design requirements and perfect working state.
d. Our technicians can also provide all kinds of relevant technology to make the food production clean, healthy and safe.
e. We will dispatch our technicians to your factory to guide you installation and commissioning work and training your operator.
f. We provide 1 year complete Guarantee and life-time maintenance service.
Inside: plastic bag for the Frying Potato Pellet Snacks Chips Making Machine.
Outside: wooden case (adopt the wooden case or wooden pellets depended on clients' requirement).
Transportation:
Shipping, train, express, or upon clients' demands.
Jinan FLD Machinery Co., Ltd. is a leading supplier of high quality Twin Screw Extruders and other food processing lines. We are located in Jinan city, the Capital of Shandong Province.
We have ten years' experience of working with our customers providing specialist designs and practical solutions for a wide range of process needs. We can improve client's equipment and provide related training on new advanced technique.
We can guarantee customers superior quality machines up to design requirements and perfect working state. Our technicians can also provide all kinds of relevant technology to make the food production clean, healthy and safe.
