Automatic Dog Cat Pet Dry Food Pellet Processing Line Making Machine
1.Description of Dog Cat Pet Dry Food Pellet Processing Line:
1).Our processing line adopt international advanced technology, the pellets size are very even.
2).we can adjust the cutter speed and the dies to get the different diameter and the length product
3).The Electric heating device system can control the temperature accurately
4).High temperature and high pressure can kill the salmonellosis andbacterial infections.
5).This line can produce high-protein fish feed.
6).The processing line can produce both floating and sinking fish feed.
7).This line only need three workers
3. Voltage in China of Pet Food Making Machine: Three phases: 380V 50HZ, Single phase: 220V 50HZ, we can make it according to customers' Local voltage according to different countries.
4.Technical Parameter
| Model | SLG65 | SLG70 | SLG85 | SLG95 |
| Installed power | 76kw | 95kw | 178kw | 280kw |
| Production Capacity | 120-150kg/h | 200-260kg/h | 400-600kg/h | 1000-1500kg/h |
| Size MM | 1600*1800*2000 | 1800*2000*2200 | 2500*2600*3000 | 3000*3200*3500 |

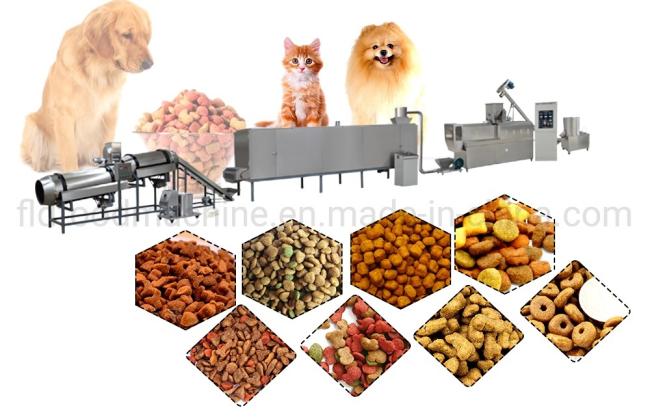

5.dog-food-making-machine making sample
| 1 | Raw material mixer Application:mix the raw materials, fast speed, no leakage. Capacity:20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. Material:stainless steel Power:3kw, 4kw, 7.5kw Dimension:880*510*1170mm |
| 2 | Screw feeder Application:convey the Power :0.75kw Capacity:equipment with the output Dimension:3100*590*2200mm Material:stainless steel |

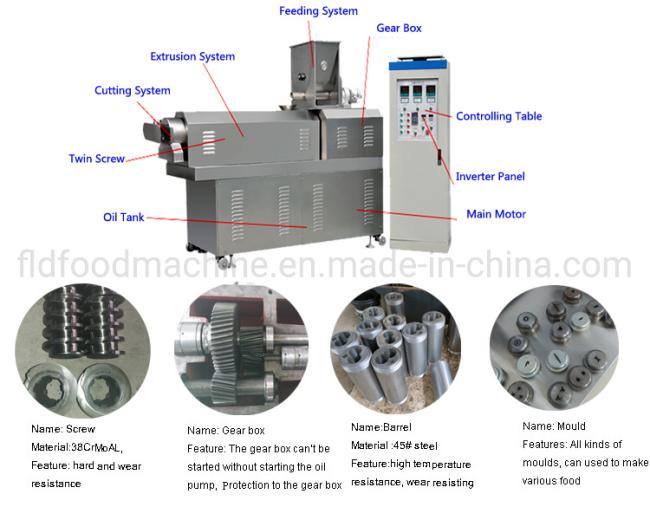

| 3 | dog-food-making-machine Application:To make the raw materials into required shape and size Type :SLG65, 70, 85,95 Capacity:100-150kg/h(SLG65) Power:22kw, 37kw, 75kw Material:Screw materials 38CrMoAl stainless steel, carbon steel |
| 4 | Air converyer Application:convey the shaped material to dryer oven Power:0.75,1.1,2.2kw(accorging to capacity) Capacity:100-150kg/h,220-250kg/h,800-1200kg/h Material:stainless steel |
| 5 | Dryer Application:the expanded food go through the "s" passage, to be dried to increase the self life. Heating type:electrical, steam, gas fired, diesel fired heating type Capacity:100kg/h to 10 ton/h Material:stainless steel, carbon steel |
| 6 | Flavoring machine Application:To mix the oil and flavors on dry final pet food Power:0.75kw Type:single drum or double drum Capacity:100kg/h to 500 kg/h Material:Stainless steel |
| 7 | Cooling equipment Application:used to cool the final pet food and transfer pet food to packing machine Power0.75kw, 1.6kw Capacity:100-1200kg/h Material:stainless steel(backplate) Remarks:Optional equipment |
Package details for Dry pet food production line
1. Packaging Specification :Outside Package:Wooden Packing as Export Standard.
2. Customer's requirement is available.
Our company is a leading manufacturer of high quality Twin Screw Extruders for food industries.We have almost ten years' experience of working with our customers providing specialist designs and practical solution for a wide range of process needs.The latest Computer Aided Design(CAD)technology is used by our experienced design team.We have been supplying the most efficient equipment available to snacks food manufactures around the world.A comprehensive range from mixers to extruders, ovens, flavors offers various tastes and easy to operate designs which lead the industry.
1)Provide factory layout according to your factory size in advance;
2)Provide the basic formula;
3)Inspect the machine before leaving the factory;Oversea installation and commissioning equipment;
4)Technician will work with your workers together and teach your workers how to install machines,
how to operate machines, how to maintain machines during daily working;
5)Our engineers will teach your workers how to clean the extruder, how to change the screw,
how to change barrel etc, and provide technology support with you forever;
6)Provide English Version of Installation / Operation / Service / Maintenance Manual.
