Full Automatic Pet Dog Cat Food Processing Machine

1.Description of Full automatic Pet dog cat food processing machine:
    Our Pet food machine can make pet food like Dog, Cat, Fish, Bird food etc with various shapes and tastes through changing the dies and formulas,We have full formula of foods and will guide you to use different materials to produce variety quality food.

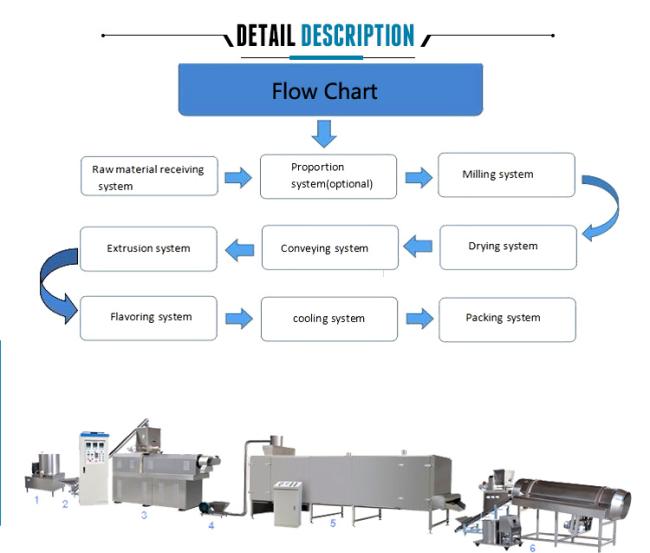

Mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→cooling machine→
packing machine.

1.Raw Materials: Meat Meal, Fish Meal, Corn Powder, Soya Meal and Other Grain Powder

2.Products: Pet Food, Like Dog, Cat, Fish, Bird Food etc. with Different Shapes and Tastes byChanging the Dies and Formulations

3.Dog food making machine Capacity: 120-150 KG/H,200-250 KG/H,400-500 KG/H,800-1000 KG/H.

4.Voltage:   Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to

 customers' local voltage according to different countries.

This dog food production line can be used to produce fish pellets, the pellets size can be from 1.0 mm to 9.0 mm by adjusting the moulds from extruder; meanwhile it can produce dog food, cat food.....

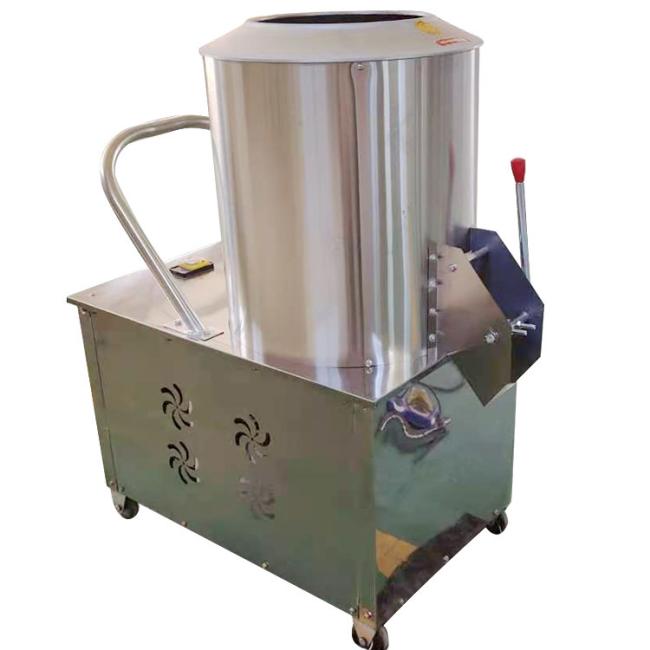

	Raw material mixer Application:mix the raw materials, fast speed, no leakage. Capacity:20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. Material:stainless steel Power:3kw, 4kw, 7.5kw Dimension:880*510*1170mm

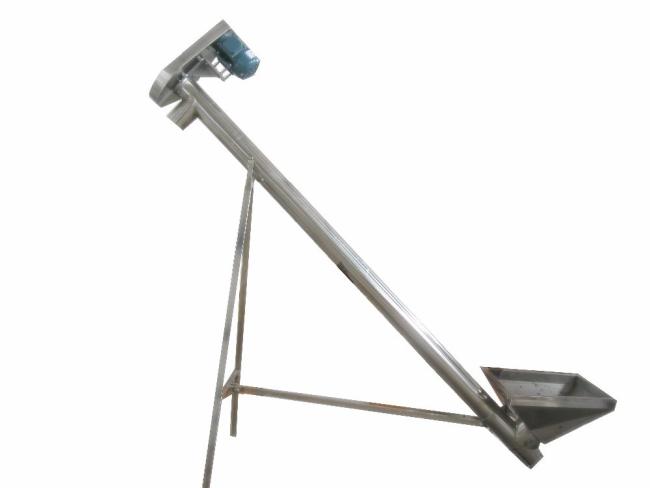

	Screw feeder Application:convey the    Power :0.75kw Capacity:equipment with the output Dimension:3100*590*2200mm Material:stainless steel

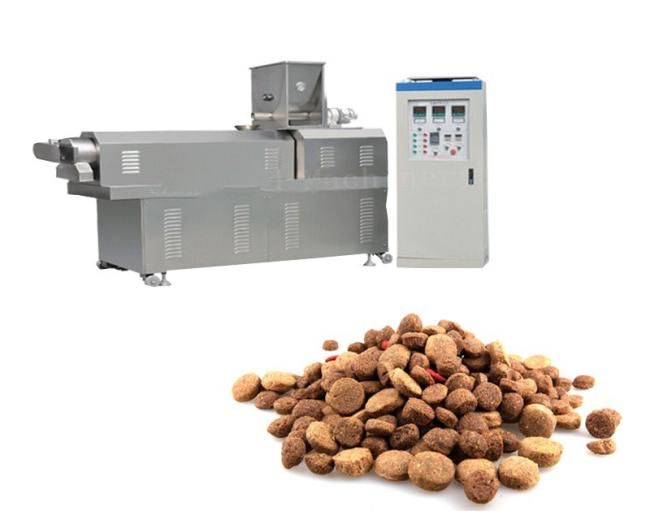

	Twin screw extruder Application:To make the raw materials  into required shape and size Type :SLG65, 70, 85,95 Capacity:100-150kg/h(SLG65) Power:22kw, 37kw, 75kw Material:Screw materials 38CrMoAl stainless steel, carbon steel

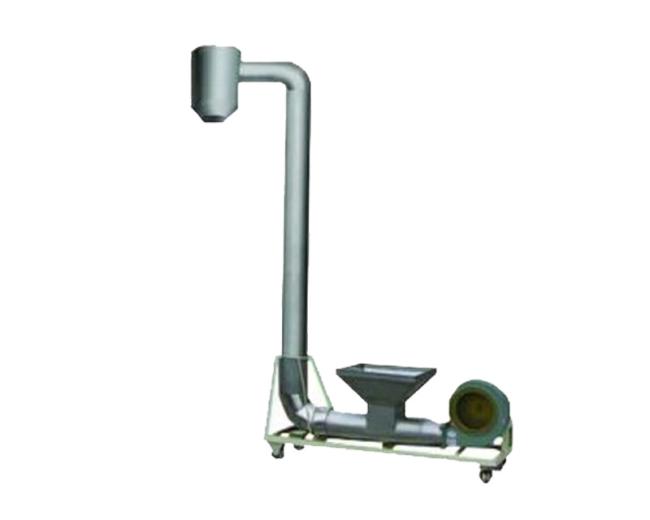

	Air converyer Application:convey the shaped material to dryer oven Power:0.75,1.1,2.2kw(accorging to capacity) Capacity:100-150kg/h,220-250kg/h,800-1200kg/h Material:stainless steel

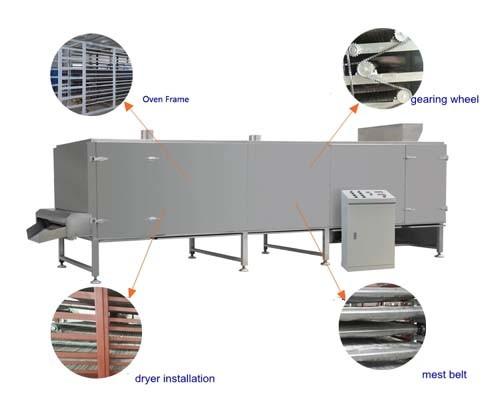

	Dryer Application:the expanded food go through the "s" passage, to be dried to increase the self life. Heating type:electrical, steam, gas fired, diesel fired heating type Capacity:100kg/h to 10 ton/h Material:stainless steel, carbon steel

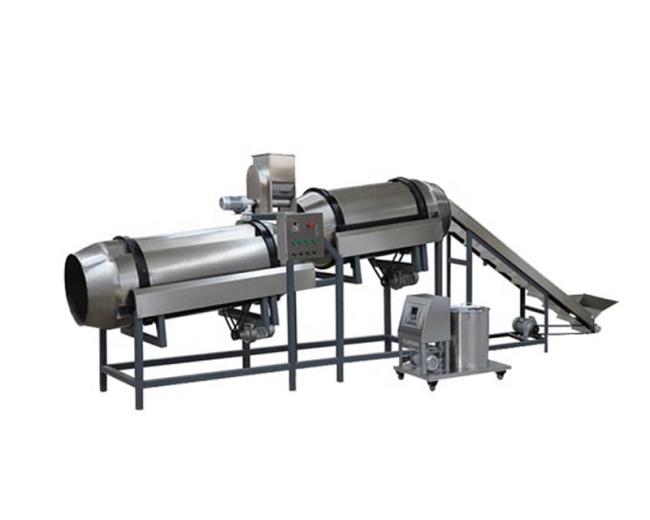

	Flavoring machine Application:To mix the oil and flavors on dry final pet food Power:0.75kw Type:single drum or double drum Capacity:100kg/h to 500 kg/h Material:Stainless steel

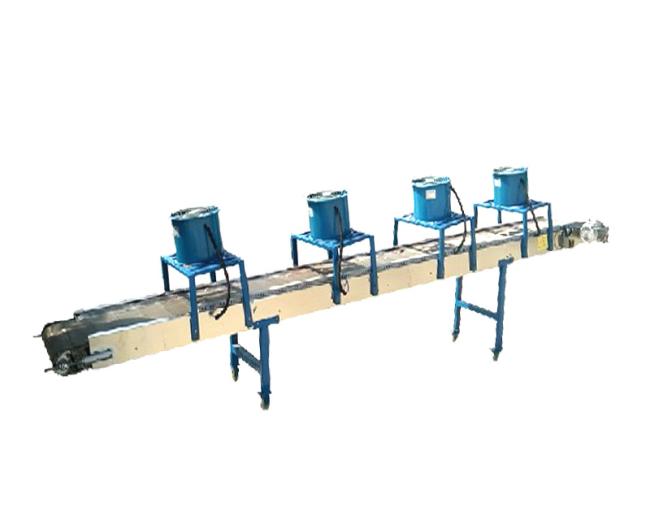

	Cooling equipment Application:used to cool the final pet food and transfer pet food  to packing machine Power0.75kw, 1.6kw Capacity:100-1200kg/h Material:stainless steel(backplate) Remarks:Optional equipment

•  Inside package is plastic film, outside is wooden or plywood case (Inflated kibble small wet dog energy saving pet cat food processing machine packaging based on the customers' need)

•  Only plastic film nude packing with wooden pallet.

•  We can supply fumigation package and certificate.

•  Shipping, train, express or upon clients' demands.

1).Provide factory layout according to your factory size in advance;

2).Provide the basic formula;

3).Inspect the machine before leaving the factory; Oversea installation and commissioning equipment;

4).Technician will work with your workers together and teach your workers how to install machines, how to operate machines, how to maintain machines during daily working;

5).Our engineers will teach your workers how to clean the extruder, how to change the screw, how to change barrel etc, and provide technology support with you forever;

6).Provide English Version of Installation / Operation / Service / Maintenance Manual.

Jinan FLD Machinery Co,.Ltd is a special extrusion machinery manufacturer. Factory covering 6000 sqm.Have 100 workers and 15 engineers.We have 15 years experiences.With our many years' research and study, extrusion techniques have been widely used in many fields. Our products consist of single/double-screw extrusion snacks machinery, breakfast cereal and corn flakes machinery, fish feed machine, pet food machinery, dog chew machinery, fried food machinery, etc. We can supply individual items of equipment or complete factory layouts and lines, which are custom-built to suit the requirements of customers.

If you are interested in pet dog food making machine,kindly contact us!

1. Q: How about the after-service about Dog food maker machine?
    A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.

2. Q:do you supply any formula to buyer?
    A: yes, we supply formulas to buyer.

3.Q:Do you supply Inflated kibble Dog food maker machine?

   A: We have long-term cooperation packing machine supplier, we will help to contact them.
