Pet Dog Food Pellet Processing Extruder

1.Description of Full automatic Pet dog food pellet Processing extruder:

  With the increasing variety of pet, people require more and more different pet foods. In order to meet various feeding demands, Our company developed this line, easy operation, friendly human-machine interface, accurate control to ensure the food can be processed under stable temperature, pressure, humidity and other circumstance.

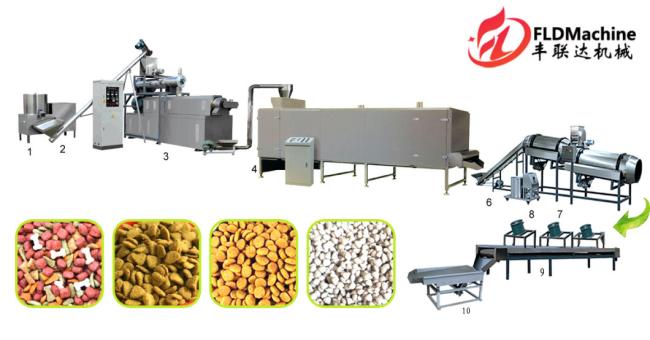

    This dog food production line mainly use the meat meal, fish meal, bone powder, corn powder, soya meal and other grains' powder as main materials to produce the innovative shapes, high nutritional and savory taste pet food for dog, cat, fox, bird etc.

2.Raw Materials: Corn flour, wheat flour, rice flour, fish powder, bone powder, fresh bone and meat paste etc.Or using the corn feeds, rice feeds, wheat feeds directly, then grinding. Other nutrient can be added together.

3.Products: Pet Food, Like Dog, Cat, Fish, Bird Food etc. with Different Shapes and Tastes byChanging the Dies and Formulation

 4.Pet dog food pellet Processing extruder Capacity:20-50kg/h,50-80kg/h,120-150 KG/H,200-250 KG/H,400-500 KG/H,600-800kg/h,800-1000 KG/H,1000-1500kg/h

5.Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to  customers' local voltage according to different countries.

This dog food production line can be used to produce fish pellets, the pellets size can be from 1.0 mm to 9.0 mm by adjusting the moulds from extruder; meanwhile it can produce dog food, cat food.....

	Raw material mixer Application:mix the raw materials, fast speed, no leakage. Capacity:20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. Material:stainless steel Power:3kw, 4kw, 7.5kw Dimension:880*510*1170mm
	Screw feeder Application:convey the    Power :0.75kw Capacity:equipment with the output Dimension:3100*590*2200mm Material:stainless steel

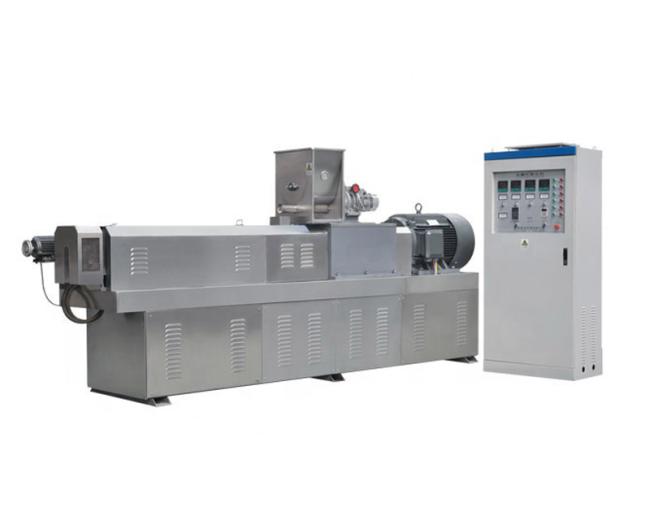

	Twin screw extruder-Dog food production equipment Application:To make the raw materials  into required shape and size Type :SLG65, 70, 85,95 Capacity:100-150kg/h(SLG65) Power:22kw, 30kw, 75kw,90KW Material:Screw materials 38CrMoAl stainless steel, carbon steel

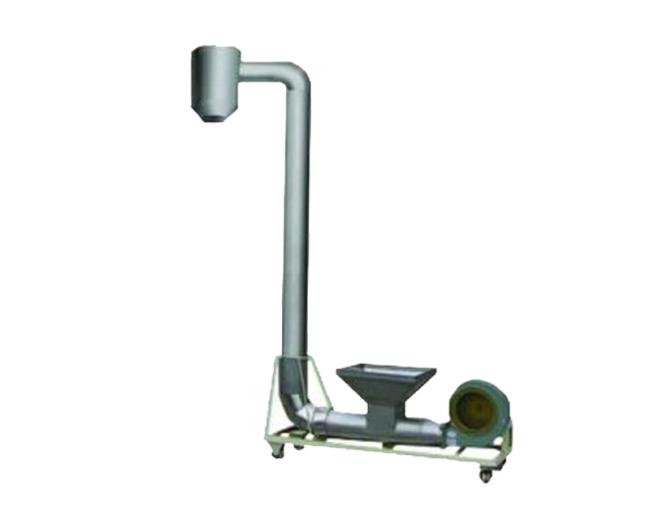

	Air converyer Application:convey the shaped material to dryer oven Power:0.75,1.1,2.2kw(accorging to capacity) Capacity:100-150kg/h,220-250kg/h,800-1200kg/h Material:stainless steel
	Dryer Application:the expanded food go through the "s" passage, to be dried to increase the self life. Heating type:electrical, steam, gas fired, diesel fired heating type Capacity:100kg/h to 10 ton/h Material:stainless steel, carbon steel

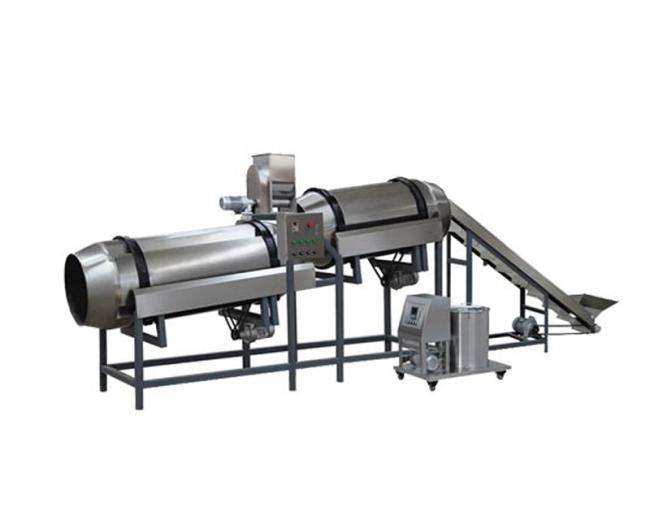

	Flavoring machine Application:To mix the oil and flavors on dry final pet food Power:0.75kw Type:single drum or double drum Capacity:100kg/h to 500 kg/h Material:Stainless steel

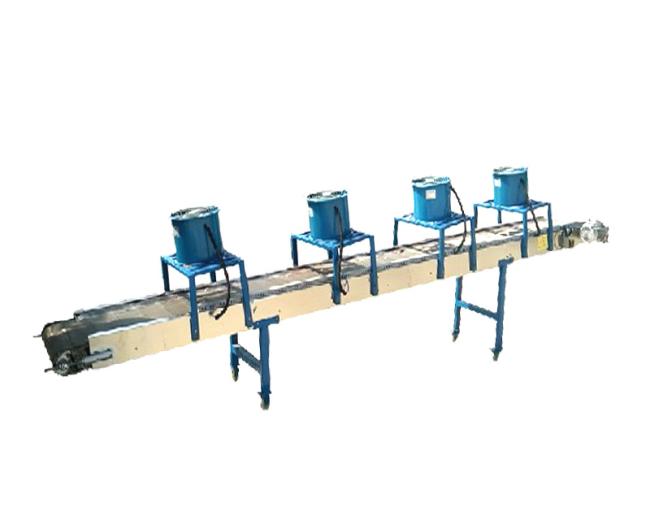

	Cooling equipment Application:used to cool the final pet food and transfer pet food  to packing machine Power0.75kw, 1.6kw Capacity:100-1200kg/h Material:stainless steel(backplate) Remarks:Optional equipment

•  Inside package is plastic film, outside is wooden or plywood case (Inflated PET FOOD MACHINE packaging based on the customers' need)

•  Only plastic film nude packing with wooden pallet.

•  We can supply fumigation package and certificate.

•  Shipping, train, express or upon clients' demands.

1).Provide factory layout according to your factory size in advance;

2).Provide the basic formula;

3).Inspect the machine before leaving the factory; Oversea installation and commissioning equipment;

4).Technician will work with your workers together and teach your workers how to install machines, how to operate machines, how to maintain machines during daily working;

5).Our engineers will teach your workers how to clean the extruder, how to change the screw, how to change barrel etc, and provide technology support with you forever;

6).Provide English Version of Installation / Operation / Service / Maintenance Manual.

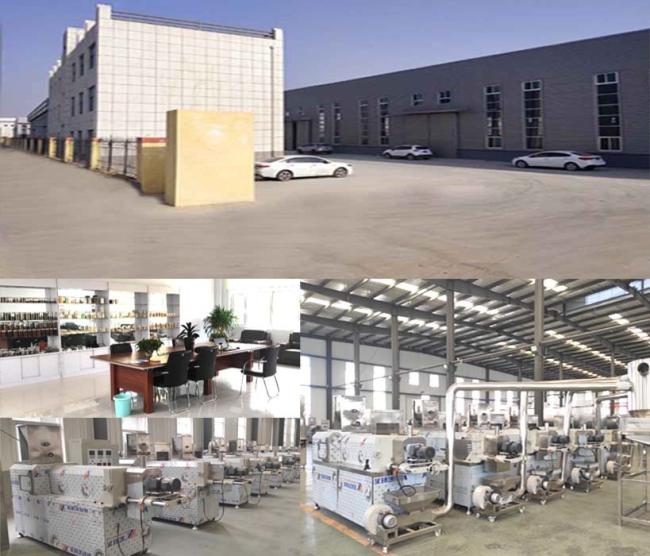

Jinan FLD Machinery Co,.Ltd is a special extrusion machinery manufacturer. Factory covering 6000 sqm.Have 100 workers and 15 engineers.We have 15 years experiences.With our many years' research and study, extrusion techniques have been widely used in many fields. Our products consist of single/double-screw extrusion snacks machinery, breakfast cereal and corn flakes machinery, fish feed machine, pet food machinery, dog chew machinery, fried food machinery, etc. We can supply individual items of equipment or complete factory layouts and lines, which are custom-built to suit the requirements of customers.
                       If you are interested in Pet dog food pellet Processing extruder,kindly contact us!

Q: Are you a trade company or a manufacturer?
A: we are a manufacturer, welcome to visit our factory and check the machines.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss before contract.

Q: Could you supply all the parameters about the machines?
A: Yes, we will supply all the parameters, price, layout drawing, factory design etc.

Q: What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shippment after inspection.

Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.

Q:do you supply any formula to buyer?
A: yes, we supply formulas to buyer.
