Stainless Steel Pet Dog Food Processing Equipment with Model NO. SLG65

1.Description of Full automatic Pet dog food processing equipment:

    Pet food is generally puffed and dried by meat meal, fish meal, bone meal, corn meal. Hot Sale Pet Dog Food Equipment is used to produce pet foods such as cats, dogs, foxes, birds, and floating and sinking fish feeds for aquatic products such as fish and shrimps. Hot Sale Pet Dog Food Equipment has an excellent elite team, cutting-edge science and technology, a huge production scale, and an attitude of excellence.

1.Raw Materials: Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran , wheat bran, fish powder, bone powder etc.

2.Products: Pet Food, Like Dog, Cat, Fish, Bird Food etc. with Different Shapes and Tastes byChanging the Dies and Formulation

3.Pet Dog Fish food processing plant Capacity: 120-150 KG/H,200-250 KG/H,400-500 KG/H,800-1000 KG/H.

4.Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to

 customers' local voltage according to different countries.

This dog food production line can be used to produce fish pellets, the pellets size can be from 1.0 mm to 9.0 mm by adjusting the moulds from extruder; meanwhile it can produce dog food, cat food....

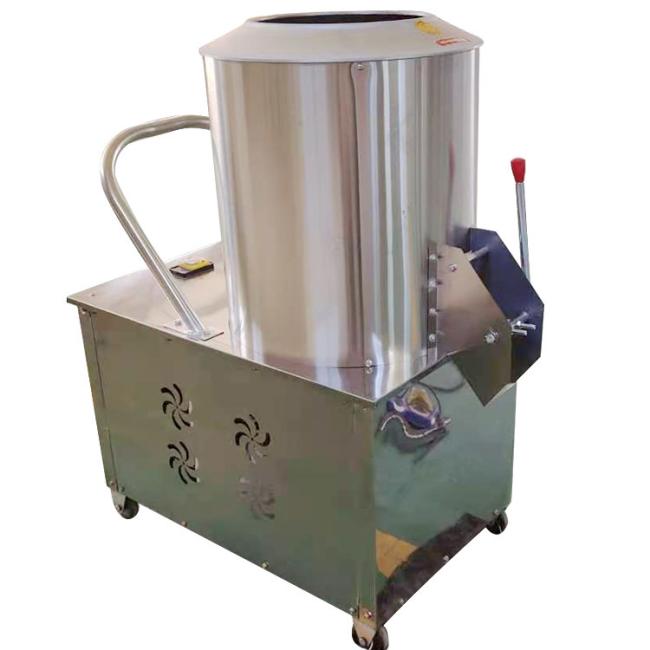

	Raw material mixer Application:mix the raw materials, fast speed, no leakage. Capacity:20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. Material:stainless steel Power:3kw, 4kw, 7.5kw Dimension:880*510*1170mm
	Screw feeder Application:convey the    Power :0.75kw Capacity:equipment with the output Dimension:3100*590*2200mm Material:stainless steel

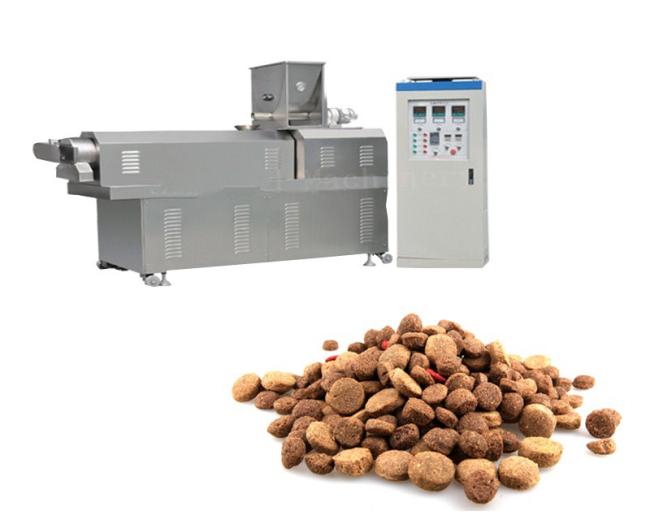

	Twin screw extruder-Pet dog food processing equipment Application:To make the raw materials  into required shape and size Type :SLG65, 70, 85,95 Capacity:100-150kg/h(SLG65) Power:22kw, 30kw, 75kw,90KW Material:Screw materials 38CrMoAl stainless steel, carbon steel
	Air converyer Application:convey the shaped material to dryer oven Power:0.75,1.1,2.2kw(accorging to capacity) Capacity:100-150kg/h,220-250kg/h,800-1200kg/h Material:stainless steel
	Dryer Application:the expanded food go through the "s" passage, to be dried to increase the self life. Heating type:electrical, steam, gas fired, diesel fired heating type Capacity:100kg/h to 10 ton/h Material:stainless steel, carbon steel

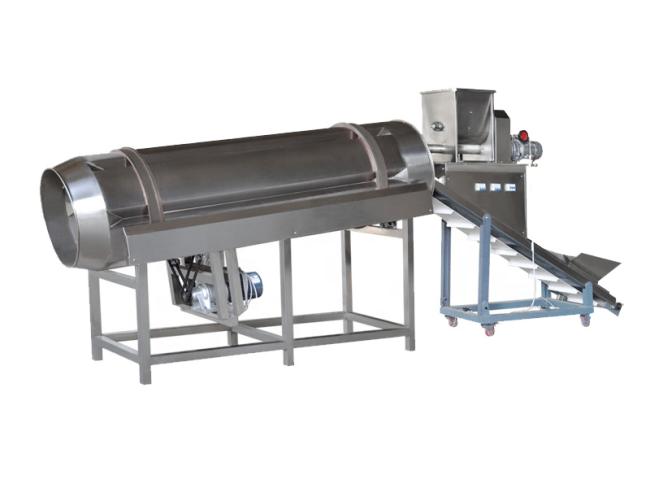

	Flavoring machine Application:To mix the oil and flavors on dry final pet food Power:0.75kw Type:single drum or double drum Capacity:100kg/h to 500 kg/h Material:Stainless steel
	Cooling equipment Application:used to cool the final pet food and transfer pet food  to packing machine Power0.75kw, 1.6kw Capacity:100-1200kg/h Material:stainless steel(backplate) Remarks:Optional equipment

1.Use anti-rust oil to wipe the equipment for dry pet dog food pellet making processing extruder machine
2.air cushion film packaging equipment for pet food production line price
3.with a wooden box for the final step of packaging

(1) Free consultation service for all processes;

(2) Free project planning and design services;

(3) Free debugging till every machine running well;

(4) Free delivery management for loading, shipment and transportation;

(5) Free workers training of equipment maintenance and operating;

(6) Free new production techniques and formulas after sales;

(7) 1 year complete warrantee and lifetime maintenance service and cost price spare parts.

Jinan FLD Machinery Co,.Ltd is a special extrusion machinery manufacturer. Factory covering 6000 sqm.Have 100 workers and 15 engineers.We have 15 years experiences.With our many years' research and study, extrusion techniques have been widely used in many fields. Our products consist of single/double-screw extrusion snacks machinery, breakfast cereal and corn flakes machinery, fish feed machine, pet food machinery, dog chew machinery, fried food machinery, etc. We can supply individual items of equipment or complete factory layouts and lines, which are custom-built to suit the requirements of customers.

If you are interested in Pet Dog Fish food processing plant,kindly contact us!

Q: What kinds of products can be made?
A: corn flakes, puffs, breakfast cereals food, animal feed, animal feed, soy protein texture food.

Q: What's the delivery time?
A: We usually need 40-45 days for large sizes, depends on the finished product, so machine wash-change.

Q: What about the installation service?
A: Depending on the whole line of equipment price list, it usually takes 2-3 weeks. We will provide you with installation instructions, such as start, as well as their operation machines for quality control, testing of different recipes.

Q: What is the warranty period for using the device?
A: 1 year for auger and cylinder due to modular design, changing the wearing parts will be OK, unlike a full set of screws, no need to change the whole set.
