Industrial Pet Food Pellet Machine
1.Description of Full automatic Pet food extruder machine:
We have two types of Pet food pellet machine, dry type and wet type, through feeding materials, extruding,cutting, drying, oil spraying, packing , the finished products are done once time fully automatically. The production line has following features: many models, flexible equipment configuration, wide range of raw materials, a wide variety of final products, and simple operation, can greatly improve the production efficiency and quality of fish feed, promote the growth of fish, and is the best choice for dog food production industry
Mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→cooling machine→
packing machine.
1.Raw Materials: Meat Meal, Fish Meal, Corn Powder, Soya Meal and Other Grain Powder
2.Products: Pet Food, Like Dog, Cat, Fish, Bird Food etc. with Different Shapes and Tastes byChanging the Dies and Formulations
3.Pet food pellet machine Capacity: 120-150 KG/H,200-250 KG/H,400-500 KG/H,800-1000 KG/H.
4.Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to
customers' local voltage according to different countries.
| Model | SLG65 | SLG70 | SLG75 | SLG85 | SLG95 |
| Installed power | 76kw | 95kw | 130 | 178kw | 280kw |
| Production Capacity | 120-150kg/h | 200-260kg/h | 300-400KG/H | 400-600kg/h | 1000-1500kg/h |
| Size MM | 1600*1800*2000 | 1800*2000*2200 | 2200*2000*2200 | 2500*2600*3000 | 3000*3200*3500 |
 | Raw material mixer Application:mix the raw materials, fast speed, no leakage. Capacity:20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. Material:stainless steel Power:3kw, 4kw, 7.5kw Dimension:880*510*1170mm |

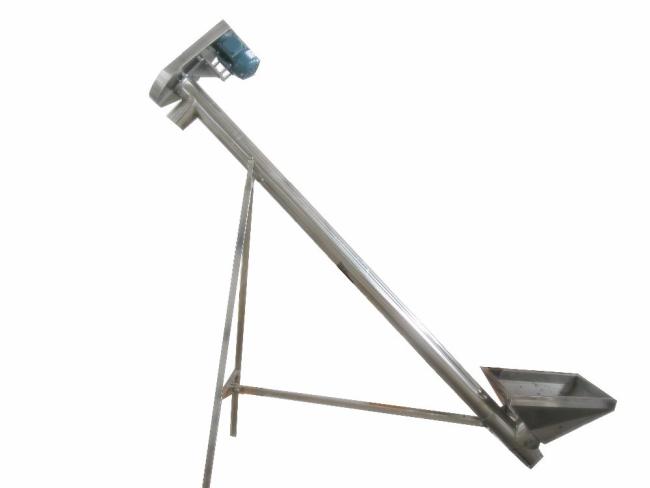

 | Screw feeder Application:convey the Power :0.75kw Capacity:equipment with the output Dimension:3100*590*2200mm Material:stainless steel |
 | Twin screw extruder-Pet food pellet machine Application:To make the raw materials into required shape and size Type :SLG65, 70, 85,95 Capacity:100-150kg/h(SLG65) Power:22kw, 37kw, 75kw Material:Screw materials 38CrMoAl stainless steel, carbon steel |

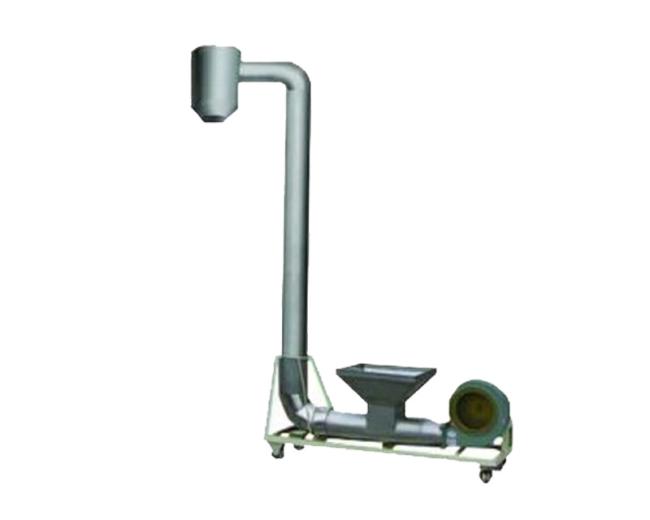

 | Air converyer Application:convey the shaped material to dryer oven Power:0.75,1.1,2.2kw(accorging to capacity) Capacity:100-150kg/h,220-250kg/h,800-1200kg/h Material:stainless steel |
 | Dryer Application:the expanded food go through the "s" passage, to be dried to increase the self life. Heating type:electrical, steam, gas fired, diesel fired heating type Capacity:100kg/h to 10 ton/h Material:stainless steel, carbon steel |

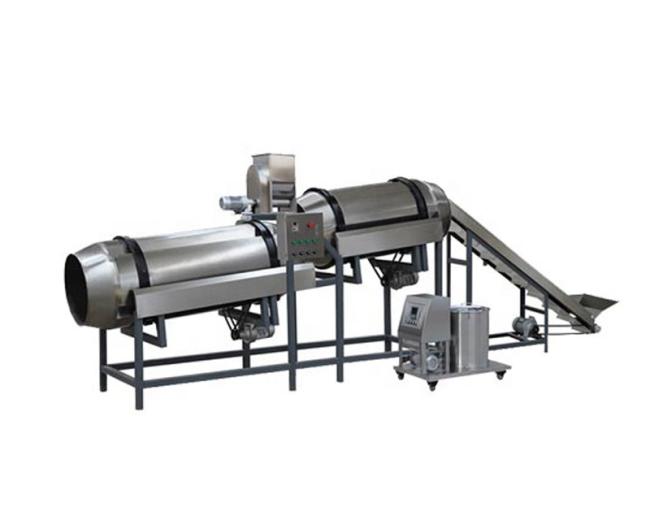

 | Flavoring machine Application:To mix the oil and flavors on dry final pet food Power:0.75kw Type:single drum or double drum Capacity:100kg/h to 500 kg/h Material:Stainless steel |
 | Cooling equipment Application:used to cool the final pet food and transfer pet food to packing machine Power0.75kw, 1.6kw Capacity:100-1200kg/h Material:stainless steel(backplate) Remarks:Optional equipment |
• Inside package is plastic film, outside is wooden or plywood case (Pet food pellet machine packaging based on the customers' need)
• Only plastic film nude packing with wooden pallet.
• We can supply fumigation package and certificate.
• Shipping, train, express or upon clients' demands.
1).Provide factory layout according to your factory size in advance;
2).Provide the basic formula;
3).Inspect the machine before leaving the factory; Oversea installation and commissioning Pet food pellet machine;
4).Technician will work with your workers together and teach your workers how to install machines, how to operate machines, how to maintain machines during daily working;
5).Our engineers will teach your workers how to clean the extruder, how to change the screw, how to change barrel etc, and provide technology support with you forever;
6).Provide English Version of Installation / Operation / Service / Maintenance Manual.
Jinan FLD Machinery Co,.Ltd is a special extrusion machinery manufacturer. Factory covering 6000 sqm.Have 100 workers and 15 engineers.We have 15 years experiences.With our many years' research and study, extrusion techniques have been widely used in many fields. Our products consist of single/double-screw extrusion snacks machinery, breakfast cereal and corn flakes machinery, fish feed machine, pet food machinery, dog chew machinery, fried food machinery, etc. We can supply individual items of equipment or complete factory layouts and lines, which are custom-built to suit the requirements of customers.
If you are interested in Pet food extruder machine,kindly contact us!
Q: Are you a trade company or a manufacturer?
A: we are a manufacturer, welcome to visit our factory and check the Industrial Pet food pellet machine.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss before contract.
Q: Could you supply all the parameters about the Industrial Pet food pellet machine?
A: Yes, we will supply all the parameters, price, layout drawing, factory design etc.
Q: What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shipment after inspection.
Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
Q:Do you supply any formula to buyer?
A: yes, we supply formulas to buyer.
Q: What's the warranty?
A: warranty one year.
