Automatic Industrial Animal Feed Pet Food Machine Processing Line

1.Description of Automatic Industrial Animal Feed Pet Food Machine Processing Line:

Mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→cooling machine→
packing machine.

1.Raw Materials: Meat Meal, Fish Meal, Corn Powder, Soya Meal and Other Grain Powder.

2.Products: Pet Food, Like Dog, Cat, Fish, Bird Food etc. with Different Shapes and Tastes byChanging the Dies and Formulations

3.Automatic Industrial Animal Feed Pet Food Machine Processing Line Capacity: 120-150 KG/H,200-250 KG/H,400-500 KG/H,800-1000 KG/H.

4.Voltage:   Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to

 customers' local voltage according to different countries.

This dog food production line can be used to produce fish pellets, the pellets size can be from 1.0 mm to 9.0 mm by adjusting the moulds from extruder; meanwhile it can produce dog food, cat food.....

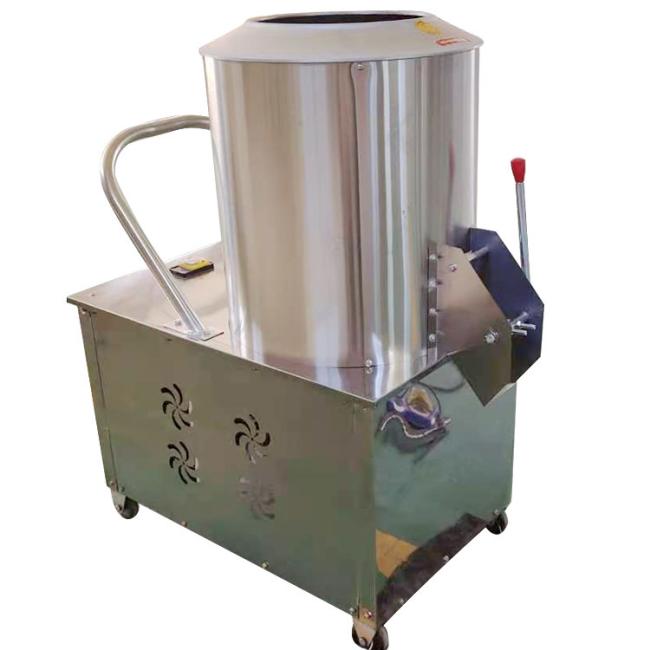

	Raw material mixer Application:mix the raw materials, fast speed, no leakage. Capacity:20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. Material:stainless steel Power:3kw, 4kw, 7.5kw Dimension:880*510*1170mm

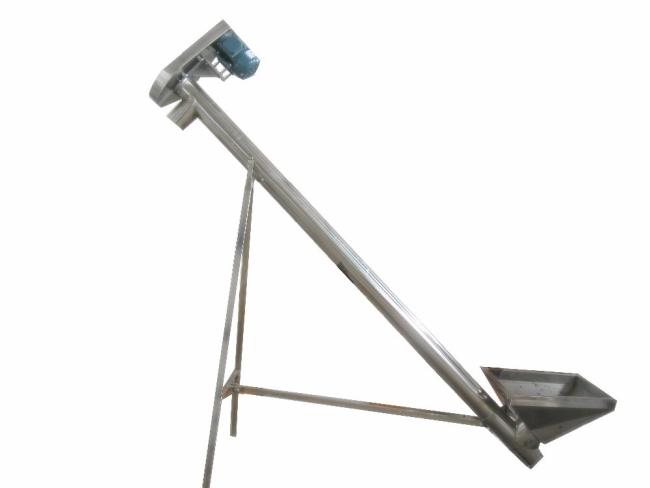

	Screw feeder Application:convey the    Power :0.75kw Capacity:equipment with the output Dimension:3100*590*2200mm Material:stainless steel

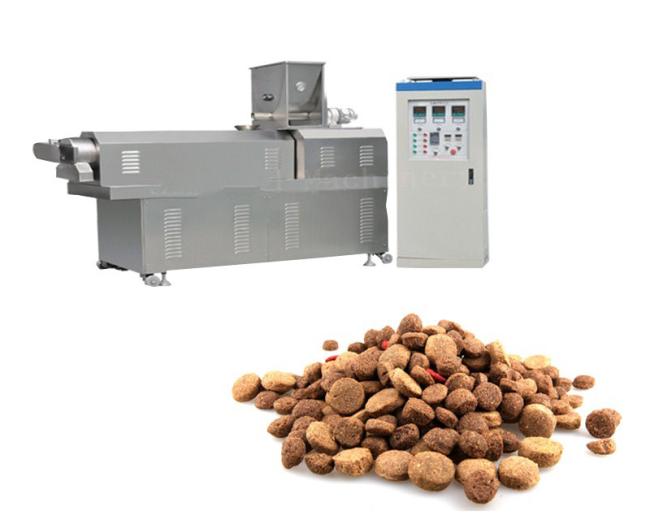

	Twin screw extruder-Automatic Industrial Animal Feed Pet Food Machine Processing Line Application:To make the raw materials  into required shape and size Type :SLG65, 70, 85,95 Capacity:100-150kg/h(SLG65) Power:22kw, 37kw, 75kw Material:Screw materials 38CrMoAl stainless steel, carbon steel

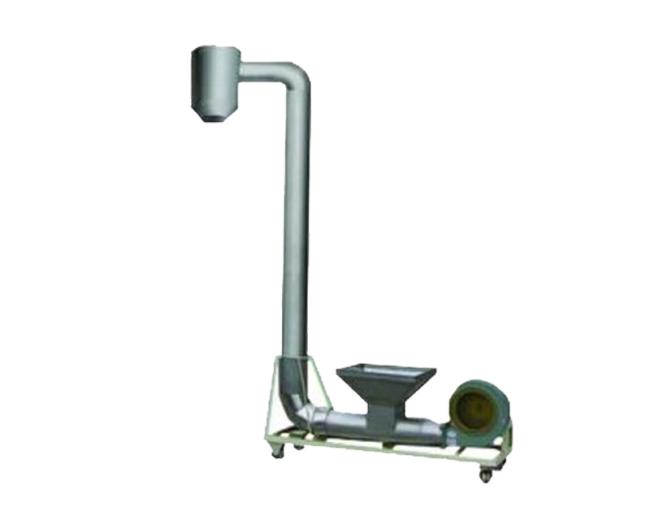

	Air converyer Application:convey the shaped material to dryer oven Power:0.75,1.1,2.2kw(accorging to capacity) Capacity:100-150kg/h,220-250kg/h,800-1200kg/h Material:stainless steel

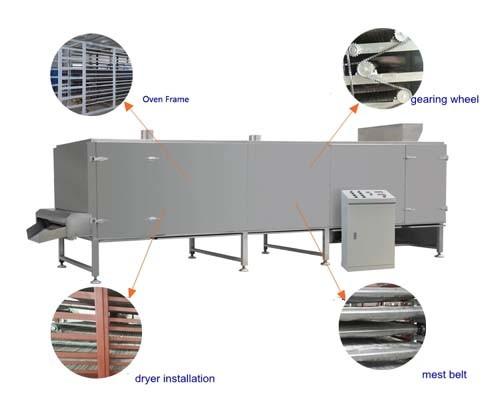

	Dryer Application:the expanded food go through the "s" passage, to be dried to increase the self life. Heating type:electrical, steam, gas fired, diesel fired heating type Capacity:100kg/h to 10 ton/h Material:stainless steel, carbon steel

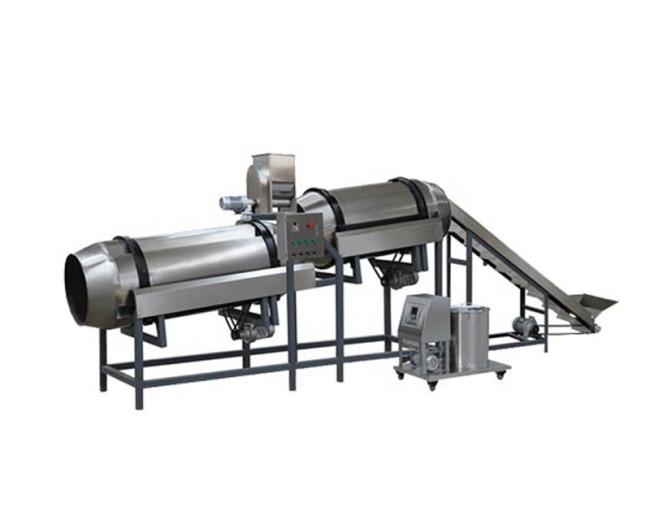

	Flavoring machine Application:To mix the oil and flavors on dry final pet food Power:0.75kw Type:single drum or double drum Capacity:100kg/h to 500 kg/h Material:Stainless steel

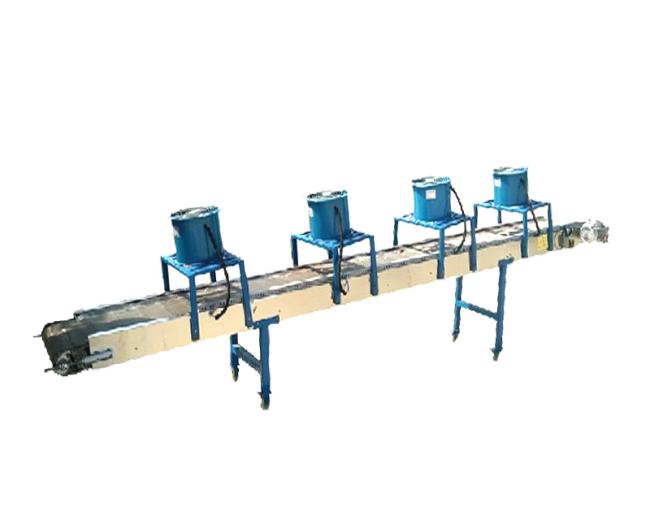

	Cooling equipment Application:used to cool the final pet food and transfer pet food  to packing machine Power0.75kw, 1.6kw Capacity:100-1200kg/h Material:stainless steel(backplate) Remarks:Optional equipment

•  Inside package is plastic film, outside is wooden or plywood case (Automatic Industrial Animal Feed Pet Food Machine Processing Line packaging based on the customers' need)

•  Only plastic film nude packing with wooden pallet.

•  We can supply fumigation package and certificate.

•  Shipping, train, express or upon clients' demands.

We Provide Satisfied Service & Turnkey Solution:
Before sale services:
1. Provide the free consultation of the High Quality Animal Pet Dog Food Making Machine.
2. Provide the standard device and the flow chart.
3. According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.

Services during the sales:
1. Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2. Welcome to visit our factory or the domestic clients' factory.
3. Inspect the machine before leaving the factory.

After sale services:
1. Oversea install and debug the Industrial Dog Food Extrusion Machine.
2. Train the first-line operator.
3. Provide the basic formula
4. Operation/ Service/ Maintenance Manual: Provided In English.
5. We will provide 1-2 engineer to the client's factory for the installation and teach totally in 10 days. The client need provide room, food, round-trip transportation, visa fee and a nominal $40 daily subsidy per person.

Jinan FLD Machinery Co,.Ltd isa leading manufacturer of Industrial Dog Food Extrusion Machine for food industries.

We have almost 20 years' experience of working with our customers providing specialist designs and practical solution for a wide range of process needs.

Jinan FLD has a comprehensive manufacturing program offering equipment and systems to customers in extruded snack food processing machinery and allied industries. We can supply individual items of equipment or complete factory layouts and lines, which are custom-built to meet the requirements of customers.

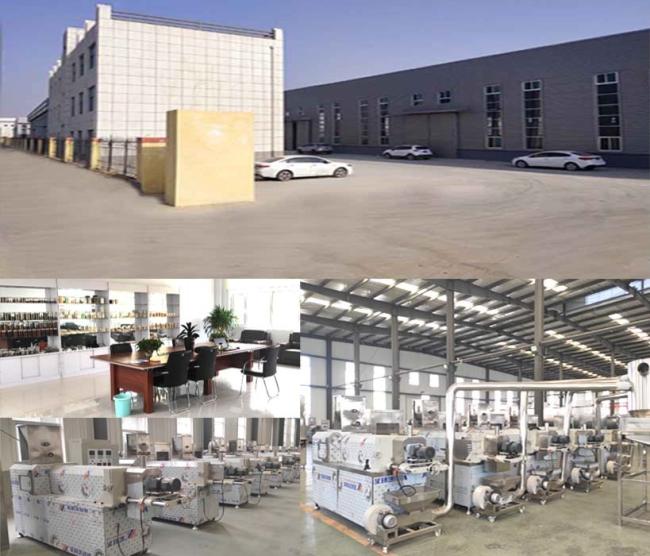

Factory standing area:30000 square meters

Workshop standing area:20000 square metersOffice area:4 floor with 600 square meters.

If you are interested in Automatic Industrial Animal Feed Pet Food Machine Processing Line,kindly contact us!

Q: Are you a trade company or a manufacturer?
A: we are a manufacturer, welcome to visit our factory and check the High Quality Animal Pet Dog Food Making Machine.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss before contract.

Q: Could you supply all the parameters about the Industrial Pet food pellet machine?
A: Yes, we will supply all the parameters, price, layout drawing, factory design etc.

Q: What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shipment after inspection.

Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.

Q:Do you supply any formula to buyer?
A: yes, we supply formulas to buyer.

Q: What's the warranty?
A: warranty one year.
