Aquatic Feed Production Line for Dog Food Industry

1.Description of Aquatic Feed Production Line:

Pet Treat Extruder Machine can produce dog chew snacks and semi moist pet food. It combines two processing lines into one: pet snacks and semi moist pet food.With different moulds, various shapes can be made, such as strip, stick, screw shape, etc.All kinds of perfectly shaped non-crumbing chew snacks in a variety of color combinations.Max. 3-color chew snacks can be produced.Various shapes can be made, such as strip, stick, bone, screw shape, etc. Many kinds of recipes to make different tastes to meet different market demands.Turnkey project provided, from raw materials to packing procedures, fully continuous and automatic.Fully stainless steel 304.

• Materials: corn powder, wheat flaour,fish powder, bone powder,etc and water.
• Capacity : 100-250kg/h.
• Consumption: low electricity and labor consumption.
• Design: With flexible design based on the client's demands, we provide turn key project.

Mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→cooling machine→
packing machine.

1.Raw Materials: Meat Meal, Fish Meal, Corn Powder, Soya Meal and Other Grain Powder

2.Products: Pet Food, Like Dog, Cat, Fish, Bird Food etc. with Different Shapes and Tastes byChanging the Dies and Formulations

3.Aquatic Feed Production Line Capacity: 120-150 KG/H,200-250 KG/H,400-500 KG/H,800-1000 KG/H.

4.Voltage:   Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to

 customers' local voltage according to different countries.

This dog food production line can be used to produce fish pellets, the pellets size can be from 1.0 mm to 9.0 mm by adjusting the moulds from extruder; meanwhile it can produce dog food, cat food.....

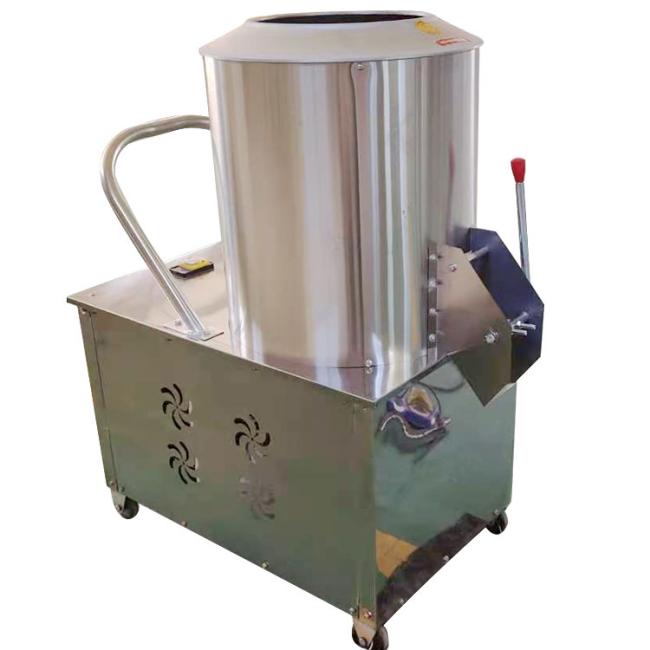

	Raw material mixer Application:mix the raw materials, fast speed, no leakage. Capacity:20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. Material:stainless steel Power:3kw, 4kw, 7.5kw Dimension:880*510*1170mm

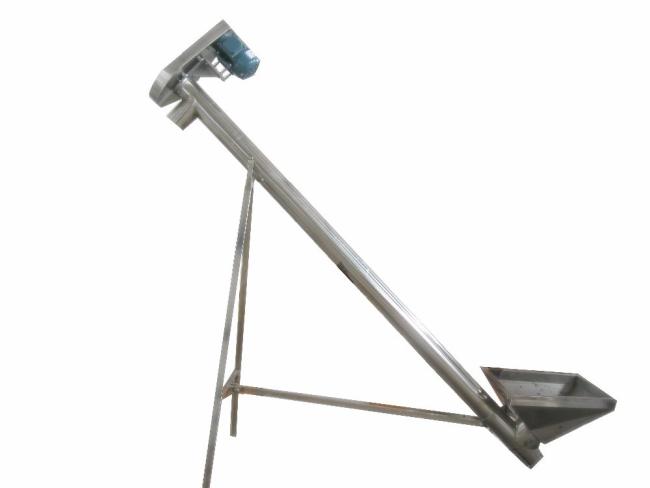

	Screw feeder Application:convey the    Power :0.75kw Capacity:equipment with the output Dimension:3100*590*2200mm Material:stainless steel

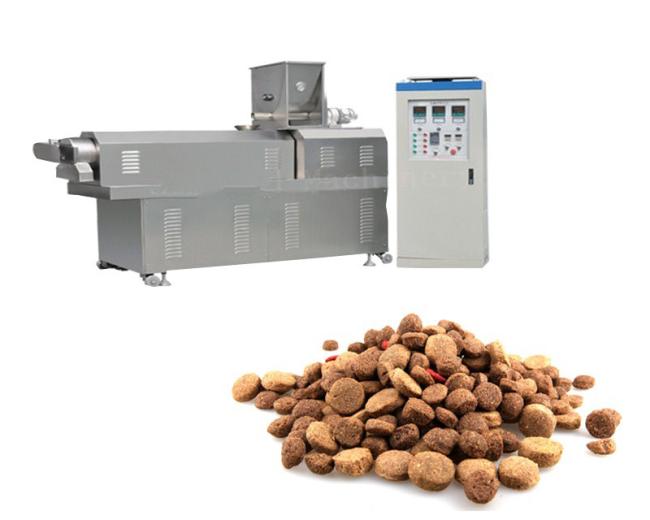

	Aquatic Feed Production Line Application:To make the raw materials  into required shape and size Type :SLG65, 70, 85,95 Capacity:100-150kg/h(SLG65) Power:22kw, 37kw, 75kw Material:Screw materials 38CrMoAl stainless steel, carbon steel

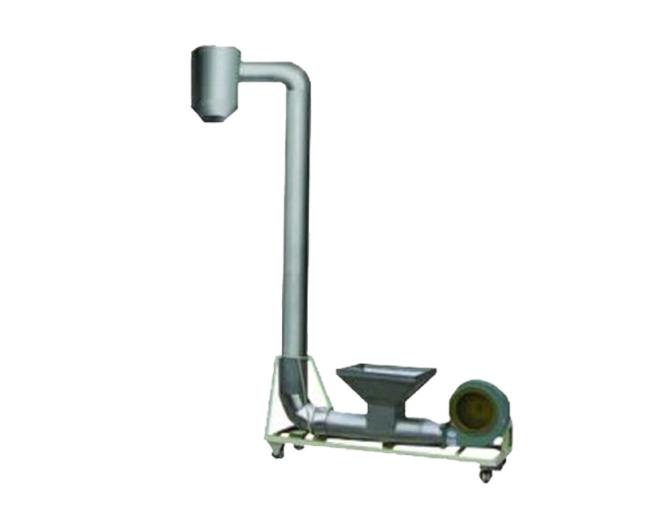

	Air converyer Application:convey the shaped material to dryer oven Power:0.75,1.1,2.2kw(accorging to capacity) Capacity:100-150kg/h,220-250kg/h,800-1200kg/h Material:stainless steel

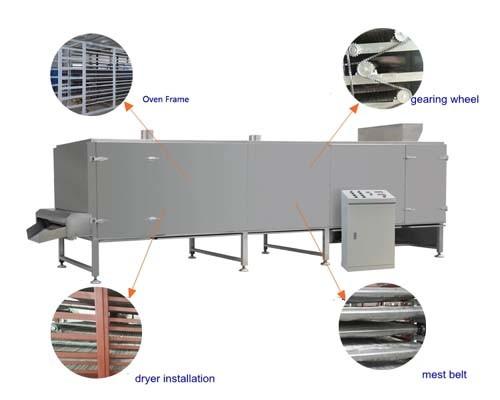

	Dryer Application:the expanded food go through the "s" passage, to be dried to increase the self life. Heating type:electrical, steam, gas fired, diesel fired heating type Capacity:100kg/h to 10 ton/h Material:stainless steel, carbon steel
	Flavoring machine Application:To mix the oil and flavors on dry final pet food Power:0.75kw Type:single drum or double drum Capacity:100kg/h to 500 kg/h Material:Stainless steel
	Cooling equipment Application:used to cool the final pet food and transfer pet food  to packing machine Power0.75kw, 1.6kw Capacity:100-1200kg/h Material:stainless steel(backplate) Remarks:Optional equipment

•  Inside package is plastic film, outside is wooden or plywood case (Aquatic Feed Production Line packaging based on the customers' need)

•  Only plastic film nude packing with wooden pallet.

•  We can supply fumigation package and certificate.

•  Shipping, train, express or upon clients' demands.

We Provide Satisfied Service & Turnkey Solution:
Before sale services:
1. Provide the free consultation of the Dog Cat Bird Fish Pet Food Production Produce Equipment Line.
2. Provide the standard device and the flow chart.
3. According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.

Services during the sales:
1. Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2. Welcome to visit our factory or the domestic clients' factory.
3. Inspect the machine before leaving the factory.

After sale services:
1. Oversea install and debug the Dog Food Cat Food Pet Chew Snack Food Production Line.
2. Train the first-line operator.
3. Provide the basic formula
4. Operation/ Service/ Maintenance Manual: Provided In English.
5. We will provide 1-2 engineer to the client's factory for the installation and teach totally in 10 days. The client need provide room, food, round-trip transportation, visa fee and a nominal $40 daily subsidy per person.

Jinan FLD Machinery Co,.Ltd is a special extrusion machinery manufacturer. Factory covering 6000 sqm.Have 100 workers and 15 engineers.We have 15 years experiences.With our many years' research and study, extrusion techniques have been widely used in many fields. Our products consist of single/double-screw extrusion snacks machinery, breakfast cereal and corn flakes machinery, fish feed machine, pet food machinery, dog chew machinery, fried food machinery, etc. We can supply individual items of equipment or complete factory layouts and lines, which are custom-built to suit the requirements of customers.

If you are interested in Dog Cat Bird Fish Pet Food Production Produce Equipment Line,kindly contact us!

Q: Are you a trade company or a manufacturer?
A: we are a manufacturer, welcome to visit our factory and check the Industrial Pet food pellet machine.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss before contract.

Q: Could you supply all the parameters about the Dog Cat Bird Fish Pet Food Production Produce Equipment Line?
A: Yes, we will supply all the parameters, price, layout drawing, factory design etc.

Q: What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shipment after inspection.

Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.

Q:Do you supply any formula to buyer?
A: yes, we supply formulas to buyer.

Q: What's the warranty?
A: warranty one year.
