Machinery Food & Beverage Machinery Pet Food Processing Machines

Pet Treats Dog Chews Bone Food Making Extruder Machine

Price Negotiable
Price: Negotiable
MOQ: Negotiable
Delivery Time: Negotiable
Product Description
Pet Treats Dog Chews Bone Food Making Extruder Machine Dog Food Extruder Pet Treats Chews Snacks Machine

Product Description

1.Description of  Pet Treats Dog Chews Bone Food Making Extruder Machine:

   Dog chews are specially designed for dogs to stabilize teeth and clean the mouth; the gums are very itchy during the teething stage of the puppy , Which not only relieves the pain, but also protects the items in the home from being damaged. In addition, weight loss is also a major use of dog chews. Dog chews are different from other foods.

   When the dog chews the dog chew, it stimulates the saliva to produce mesobacteric acid and keeps the kennel clean. The dog chew has another major feature of it-toys, which can help pets take care of them when the owner has no time. Pass the time from time to time to avoid pet dogs biting things at home everywhere.
Dog Chew Food Making Machine extruded dog food dog food manufacturing process.

Pet Treats Dog Chews Bone Food Making Extruder Machine

2). Raw Materials: Starch, Wheat Flour, Food Additives.



Detailed Photos

2.Pet Treats Dog Chews Bone Food Making Extruder Machine follow chart:

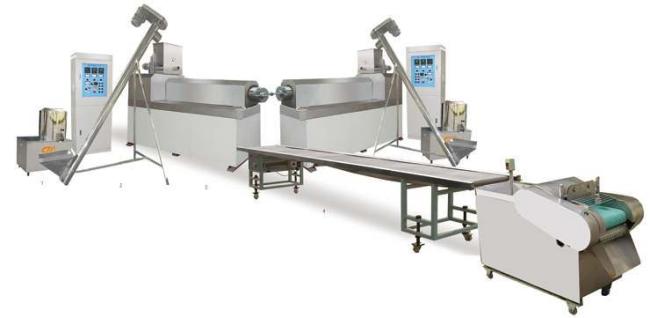

1)Single color Dog chews machine
mixing machine--feeding machine--extruder-conveyor-cutting machine-finished product storage machine-packaging machine

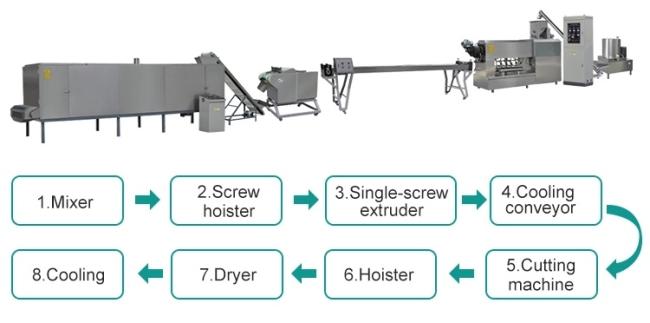

Pet Treats Dog Chews Bone Food Making Extruder Machine(2)Double color Pet Treats Dog Chews Bone Food Making Extruder Machine:
Mixer *2→ Screw conveyer*2→Single-screw extruder*2 → Cooling conveyor → Cutter machine → elevator → Dryer

Pet Treats Dog Chews Bone Food Making Extruder Machine

Mixer

It is a Mixer which can mix all the raw materials (powder form) with water and liquid chemical additives.
Capacity: 20-30kgs per batch

main motor :3kw/4kw/7.5kw



single screw extruder-Pet Treats Dog Chews Bone Food Making Extruder Machine

The Single-screw extruder is made of the feeding system, extruding system, cutting system, heating system and controlling system.

main motor: 30kw



Cutting machine

Some longer shape of the pet chews will need the cutter to cut the pet chews into pieces with different length

main motor: 1.5kw



Cooling machine

It can make the food be cool avoiding sticking together and be suitable for packing. The total length of the conveyor is 5 meters. It is full set stainless steel.The height can be adjusted based on the requirement

main motor:1.5kw



Raw material:Materials: Corn powder, wheat flour,fish powder, bone powder,meat,glycerin,starch etc and water.

Product Parameters

7.Technical Parameter:

Model
Installed Power
Power Consumption
Output
Demension
SSE80
35KW
30KW
60-80kg/h
10*1.3*2.2m
SSE100-II
40KW
35KW
80-160kg/h
12*1.3*2.2m
SSE120-II
47KW
40KW
180-240kg/h
15*1.3*2.2m

8.Pet Treats Dog Chews Bone Food Making Extruder Machine sample
Pet Treats Dog Chews Bone Food Making Extruder Machine

Packaging & Shipping

Inside: Plastic bags for the Dog Food Extruder Pet Treats Chews Snacks Machine.
Outside: Wooden case for the equipment.(According to our customer's demands.)

Firstly the machine packed with winding film or carton.
Secondly fixed on bracket with wire.
Finally packed with wooden case.

Company Profile

Jinan FLD Machinery Co,.Ltd is a professional food machinery manufacturer in Jinan city shandong province China.Our company congregates an exceptional food machine engineering team, personal customer service center and highquality manufacturing capabilities have evolved exponentially,We are working hard on explore constantly not only in the research of extrusion technology, but also in food technics to benefit our clients producing newfangled food in their markets. It making us become one of the preeminent providers of reliable extrusion equipment world-wide.

Pet Treats Dog Chews Bone Food Making Extruder Machine

After Sales Service

  As Inflated kibble small wet dog energy saving pet cat food processing machine manufacturer, Jinan FLD Machinery Co,.Ltd has exported automatic production line to more than 80 countries and regions, such as South Africa, India, Malaysia, Indonesia, Brazil and so on.

If you are interested in  Dog Food Extruder Pet Treats Chews Snacks Machine, kindly contact us!

FAQ

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss before contract.


Q: Could you supply all the parameters about the pet food processing machines?
A: Yes, we will supply all the parameters, price, layout drawing, factory design etc.


Q: What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shippment after inspection.


Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
