400m Drilling Depth 89mm Drill Rod Water Well Drilling Machine 97KW Rated Power
400m Drilling Depth 89mm Drill Rod Water Well Drilling Machine 97KW Rated Power
Machine Introduction
The high efficiency of the RCX400C hydraulic water well drilling machine is not only reflected in the drilling process, but also in its overall design. Full hydraulic control is used to drive the drilling tool rotation, making the drilling efficiency extremely high. At the same time, the layout is reasonable and the operation is more convenient. You can choose crawler or all - terrain chassis for transportation. No matter which mode of transportation, the maneuverability is very good, especially on difficult roads, and the flexibility is extremely high.
This water well drilling machine is strictly processed and produced using advanced technology and machinery to provide users with reliable and excellent performance. Its energy - saving function has also attracted much attention, conforms to the concept of green mining, and is highly praised by the global market. It is worth mentioning that hydraulic water well drilling rigs also have a number of safety features, making them safer and more reliable during operation. They are indispensable and important equipment in modern mining and water conservancy projects.
Machine Specifications
| Model | RCX400C | ||
| Drilling capability | Drilling depth | m | 400 |
| Drill rod | mm | 89 | |
| Max diameter of the work floor | mm | 400 | |
| Feeding system | Max lifting capacity | KN | 200 |
| Max feeding capacity | KN | 100 | |
| Max lifting speed | m/min | 30 | |
| Max feeding speed | m/min | 60 | |
| stroke | mm | 6600 | |
| Top drive | Max torque | N.m | 9200 |
| speed | R/min | 0-143 | |
| I.D | mm | 55 | |
| Deck engine | Type | / | Cu-mmins QSB3.9-C130 |
| Rated power | KW | 97 | |
| Tool winch | Hoisting capacity | KN | 15 |
| Max speed | M/min | 30 | |
| Breakout device | Max breakout torque | N.m | 36000 |
| Vise clamping range | mm | customized | |
| Mud pipe | Internal diameter | mm | 55 |
| pressure | Mpa | 15 | |
| Chassis | Drive mode | / | Crawler chassis |
| Rated power | KW | / | |
| Highest speed | Km/h | 3.3 | |
| Max climbing gradient | % | 39 | |
| Dimension | Working dimension | mm | 4900X3350X9300 |
| Transportation dimension | mm | 6540X2000X2630 | |
| Weight | T | 10.5 | |
Machine Advantages
This water drilling rig adopts a top-mounted driving head with a large spindle diameter, which is suitable for mud drilling, air drilling, air foam drilling and other operations to meet the drilling needs of different terrains and strata. The whole machine has a compact structure and small size, and is suitable for drilling and tunnel transportation in limited spaces. There are two options for the driving device, with wide ground adaptability. Equipped with a telescopic mast ( or optional box mast ) to meet the requirements of long casing drilling construction and improve work efficiency. Integrated visual pressure delivery system can accurately adjust drilling pressure according to drilling depth. Equipped with 4 hydraulic outriggers, it can achieve quick horizontal adjustment and transportation without a crane. The rotating centralizer provides a wide operating space.

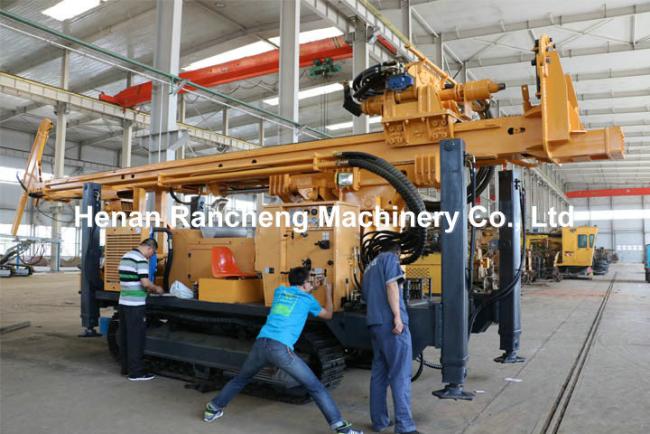

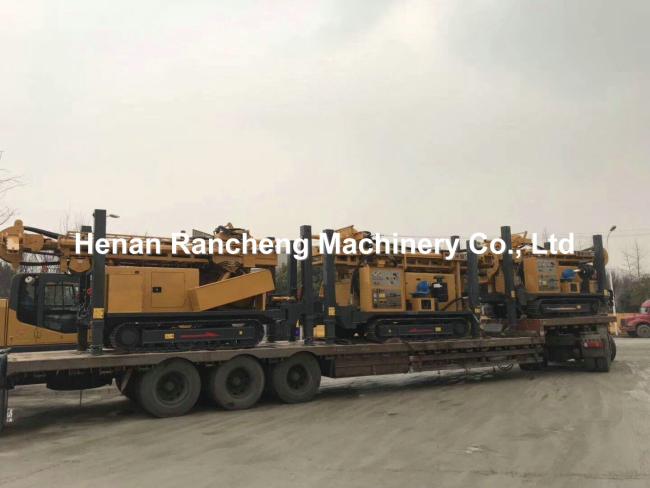

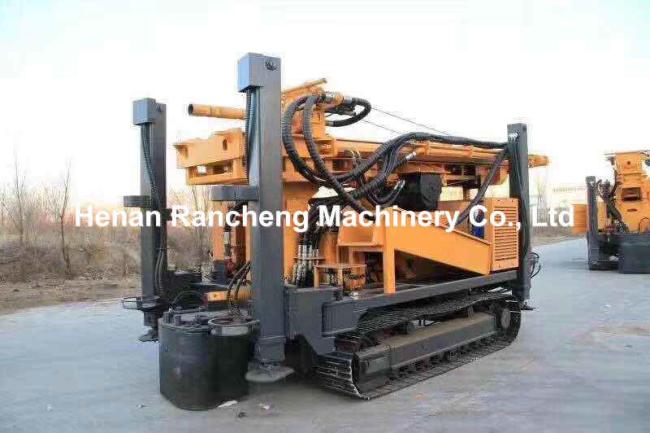

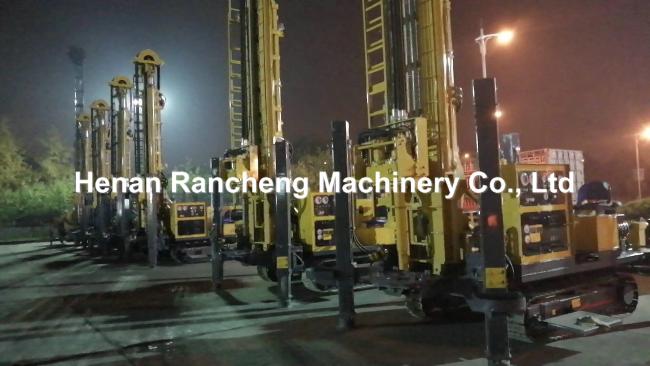

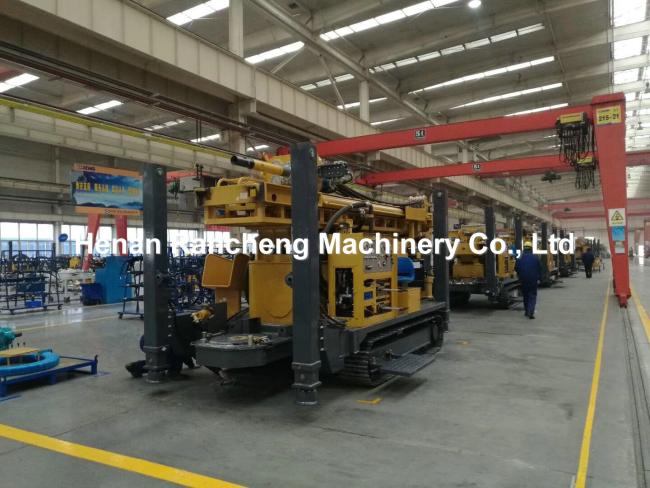

Machine Pictures
