Hydraulic Crawler DTH Drilling Rig Machine 61HP Diesel Engine 40m Bore Depth
40m Bore Depth Hydraulic Crawler DTH Drilling Rig 61HP Diesel Engine
Product Description
The RC115Y hydraulic down - the - hole drilling rig excels in hydraulic technology and is known for its excellent low gas consumption, high rotational torque and flexible hole position adjustment capabilities. Its compact structure and strong stability allow the mast to stand firmly on the ground during the drilling process, thereby significantly improving the accuracy and safety of the operation. The performance of this equipment is stable and reliable, and its drilling efficiency is twice that of traditional low - pressure drilling rigs, which greatly reduces construction costs. The application of multi - valve control system makes operation easier.
This down - the - hole drilling rig is mainly used for blast hole drilling operations in open - pit mining, water conservancy projects, power plant construction, road engineering and other fields. Its low speed and high torque characteristics help extend the service life of the diesel engine. The machine automatically monitors hydraulic and propulsion pressures and is equipped with track tensioners to ensure process reliability. In addition, it is equipped with a spotlight, making night operations possible. After careful processing and manufacturing, combined with advanced technology, it ensures the high quality and high reliability of the equipment.
Product Specifications
| Bore diameter(mm) | 90-140 |
| Bore depth(m) | 40 |
| Walk speed(km/h) | 0-2.5 |
| For rock(F) | 6-20 |
| Air pressure(Mpa) | 0.7-1.6 |
| Air consumption(m³/min) | 7-15 |
| Once promotion(mm) | 3000 |
| Skid pitch(º) | Up and down total 100 |
| swinging angle of skid(º) | left and right total 55 |
| boom swing angle(º) | left and right total 70 |
| Boom pitch(º) | left 45,right 40 |
| Rotation speed(r/min) | 0-120 |
| Climb ability(º) | 30 |
| Dimension(L*W*H)(mm) | 5480*1950*3150 |
| Weight(kg) | 5160 |
Product Features
The equipment has wide applicability and is suitable for drilling diameters ranging from 90 to 140 mm, drilling depths up to 40 meters, and rock hardness ranging from 6 to 20. During the construction process, the walking speed can be flexibly adjusted and operated within the range of 0 - 2.5 km / h to adapt to different construction site requirements. Its air pressure range is 0 . 7 - 1 . 6 MPa, and its air consumption is 7 - 15 cubic meters / minute, ensuring stable work efficiency. The maximum lifting height at one time can reach 3000 mm, giving the equipment greater flexibility during the drilling process. The pitch angle of the skateboard can reach 100 degrees up and down, the left and right swing angles are 55 degrees in total, the left and right swing angles of the boom are up to 70 degrees, and the pitch angles are 45 degrees left and 40 degrees right, meeting the needs of different angles and directions. The wide range of rotation speeds, from 0 to 120 rpm, enables the equipment to respond quickly and adjust flexibly. In addition, the equipment has a 30 - degree climbing ability and can cope with various terrain environments to ensure the smooth progress of construction.

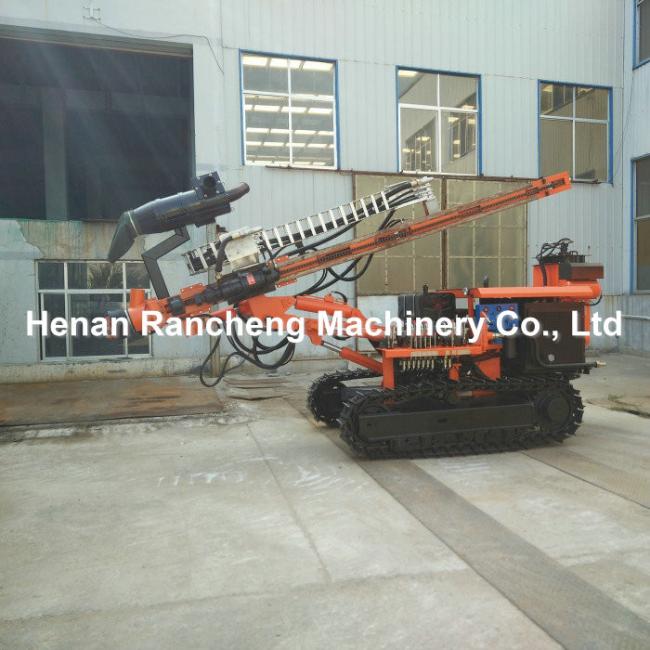

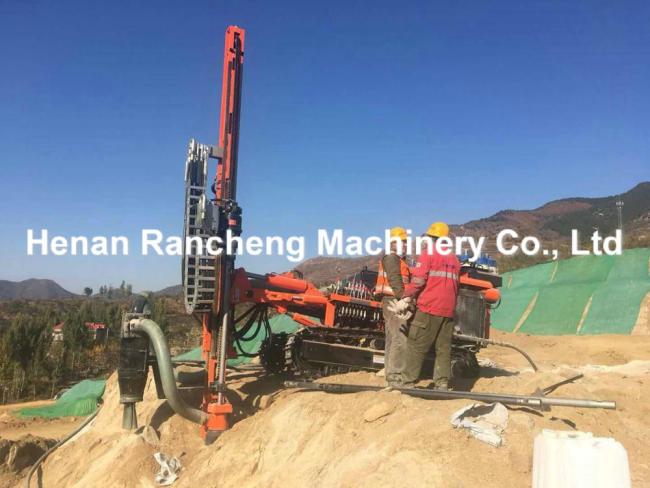

Product Image
