80m Depth Hydraulic Crawler Anchor Engineering Drilling Rig Dourble Power

Product Description

The RC150Y anchor drill rig is a versatile drilling rig that is widely used in many engineering fields. During the construction of hydropower station, it can carry out seepage prevention treatment of dam foundation and dam body and drill drainage holes to ensure the stability and waterproof performance of the dam. In road and railway construction, the rig is mainly responsible for slope management and anchor reinforcement, as well as roadbed reinforcement, to ensure the stability and safety of transportation infrastructure. In tunnel engineering, the RC150Y anchor rig participates in the advance support of the tunnel arch shed to ensure the safety of the tunnel excavation process. In the foundation pit engineering, it can complete the drilling work of the cable anchor and the anti - floating anchor, and enhance the supporting ability of the foundation pit.

In addition, the rig is suitable for ground source heat pump Wells, drilling operations in mines and quarries, and the construction of micro pile holes. Technically, the RC150Y anchor drill adopts auger pipe, which improves drilling efficiency and reduces energy consumption, thus improving the overall operating efficiency and economic benefits. This enables the RC150Y anchor rig to demonstrate its high efficiency and low energy consumption in many fields, making it the ideal choice for all types of engineering drilling.

Product Specifications

Product Features

The RC150Y anchor rig incorporates a dual powertrain with a diesel engine and a high-power motor, offering two drive modes to suit different operating environments. Its control system adopts imported intelligent device, equipped with LCD display and multi - language intelligent controller, which makes operation easy, and has self - diagnosis fault, alarm and shutdown protection functions. In terms of the working area, the design of the drill arm assembly and the motor rotation support expands the propeller range to meet the diverse operating requirements. The walking system is equipped with an integral welded chassis and widened track plate to enhance the stability of the machine, making it more suitable for walking on muddy construction sites and reducing the risk of sinking into the ground. The dual - swing motor design uses dual - motor rotary gears and manual rotary valves to provide high speed low torque and low speed high torque adjustment to adapt to different drilling needs.

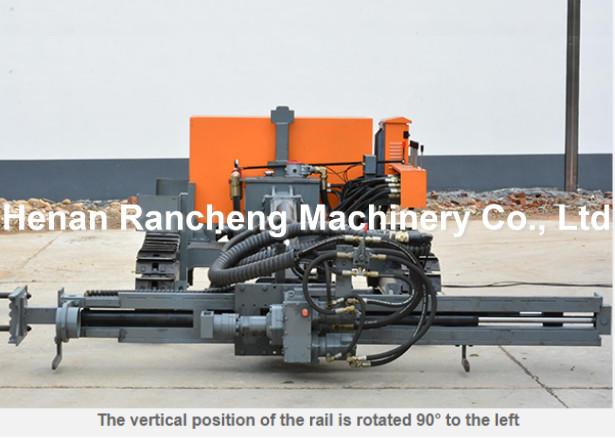

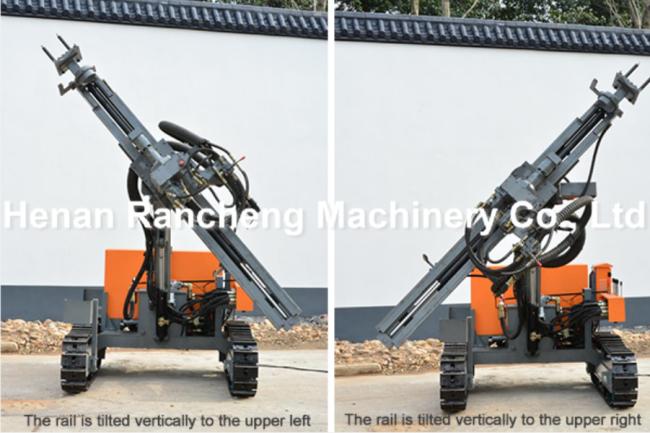

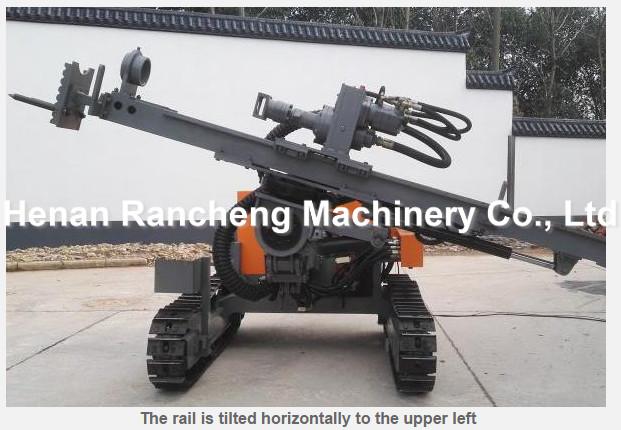

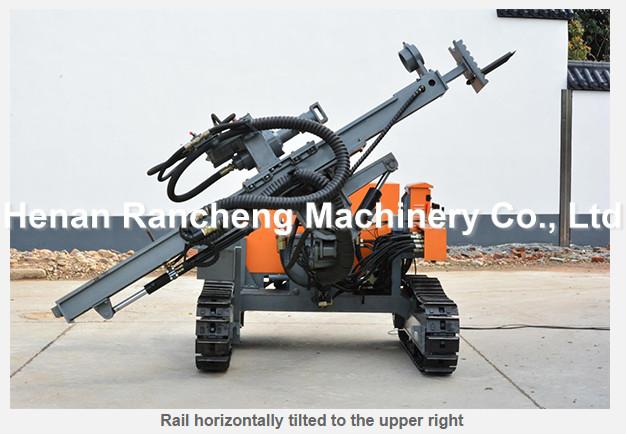

Product Image
