Turbocharged Impact Drilling Air Compressor 140KW 1.2Mpa / 1.5Mpa Working Pressure
15 / 17m³ / min Capacity Turbocharged Drilling Air Compressor Yuchai 140KW
Machine Introduction
KSCY - 570 / 12 - 550 / 15 diesel - driven portable screw air compressor is widely used in many fields, such as roads, railways, mines, etc. It uses a well - known brand diesel engine that complies with environmental standards, is powerful, economical and fuel - saving. The unique air end design enables efficient operation at low speed and can automatically adjust the displacement according to demand. At the same time, it has safe and convenient operating characteristics and multiple protections to ensure stable operation. Features such as high - efficiency filtration, large rotor design and intelligent control make it efficient, energy - saving, durable and reliable, making it an ideal choice.
Technical Parameters
| Model | KSCY-570/12-550/15 | |
| Air Capacity(m³/min) | 17 | 15 |
| Working pressure (MPa) | 1.5 | 1.2 |
| Weight (KG) | 2200 | |
| Dimensions (mm) | 3020×1520×2180 | |
| Tire size × quantity | 6.50-16×4 | |
| Engine | ||
| Manufacturer | Yuchai | |
| Diesel Engine Model | YC6J190-H300 | |
| Type | In-line | |
| Inhalation method | Turbocharged | |
| Cylinder × diameter×stroke×number of cylinders | 105×125×6 | |
| Displacement (L) | 6.494L | |
| Rated Speed (r/min) | 2200 | |
| Unloading speed (r/min) | 1400 | |
| Rated power kW | 140 | |
| Volume of Diesel oil (L) | 15 | |
| Volume of Fuel oil (L) | 150 | |
| Electrical system voltage (V) | 24 | |
| Air compressor | ||
| Air-End model | KAISHAN SKKE152 (Design in USA) | |
| Compression stages | 1 | |
| Compressor oil capacity (L) | 36 | |
| Supply valve Specification × quantity | G2×1,G3/4×1 | |
| Drilling rod | Φ76*3000 mm | |
| Method of dust collecting | Dry type (hydraulic cyclonic laminar flow) | |

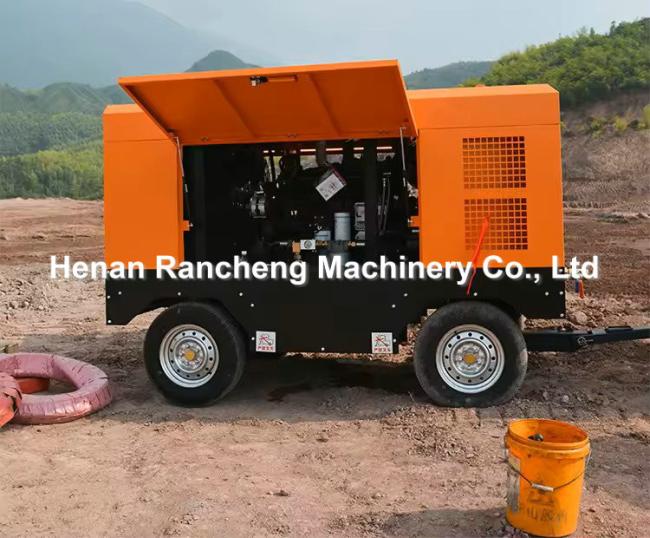

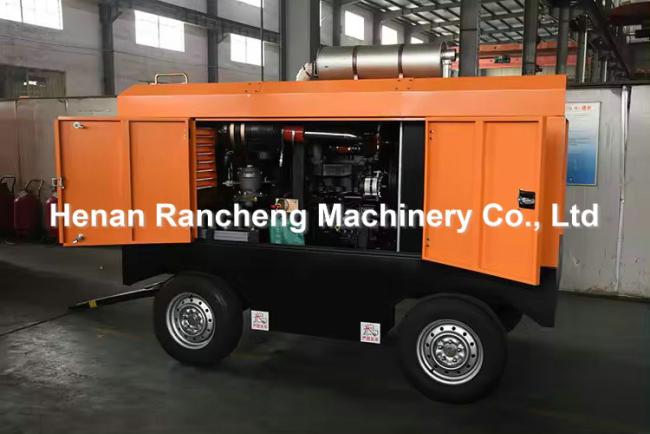

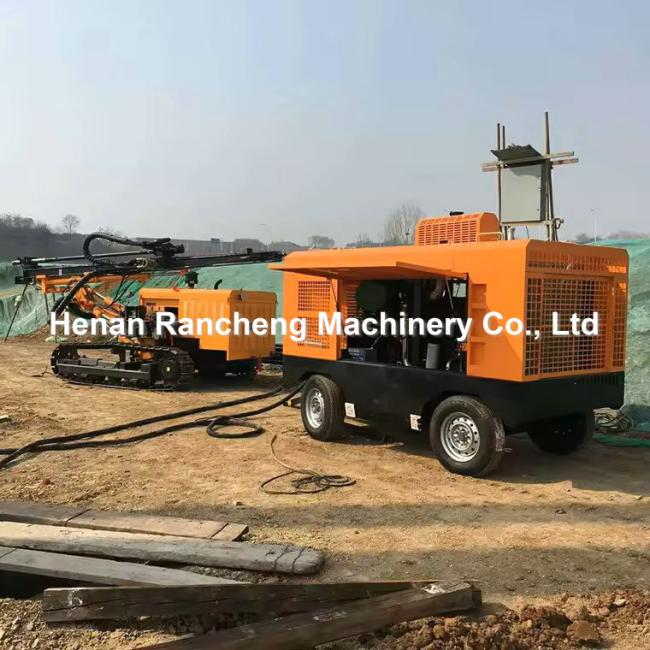

Machine Pictures
