80 / 65mm Cylinder Diameter 100mm Piston Stroke Drilling Mud Pump 15KW Power

Machine Introduction

BW250 mud pump is a multifunctional piston pump specially designed for water well drilling and drilling projects to provide efficient flushing fluid supply. The pump has a three - cylinder double - acting system and four - speed transmission, capable of achieving a flow rate of 250 liters / minute and a maximum pressure of 6MPa. It is suitable for core drilling, drilling operations and can handle thick mud. The lightweight design makes it suitable for transportation in mountainous areas, and the displacement and hole depth can be adjusted to meet different operation needs, including cement grouting. BW250 mud pumps are widely used in exploration, geological survey, transportation, water conservancy, tunnels and building foundations.

Technical Parameters

Machine Advantages

BW250 mud pump is specially designed for geological core drilling. It can efficiently transport flushing fluid to the borehole. It is also suitable for grouting, mine drainage and liquid transportation. The pump is equipped with four levels of flow pressure and adjustable cylinder liner diameter to flexibly match vertical shaft drilling rigs. The piston connecting rod is sealed and durable, and the three - stage design is easy to disassemble and maintain. It is suitable for drilling water wells of 200 - 300 meters, and is an efficient and reliable choice for drilling operations.

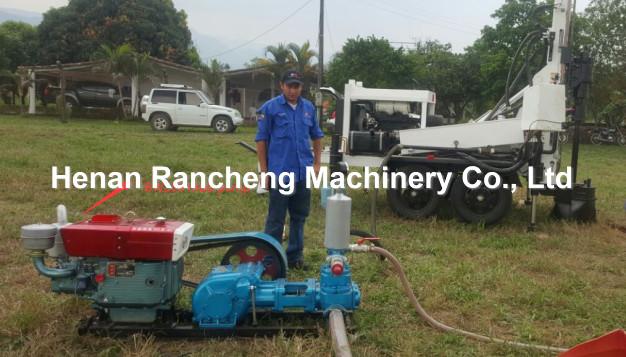

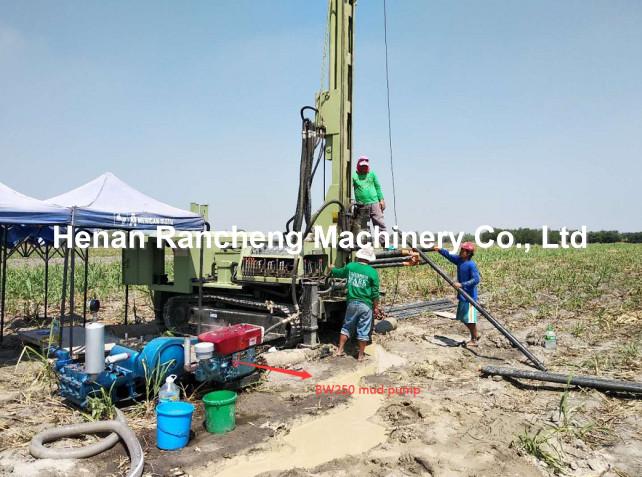

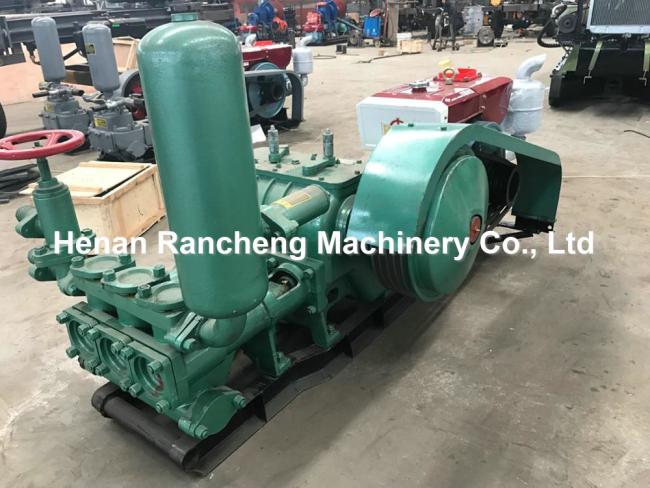

Machine Pictures
