62KW Diesel Engine HDD Drilling Rig Remote Control Directional Drill Rig
Remote Control Directional Drill Rig HDD Drilling Rig 62KW Diesel Engine
Product Description
The RCHD - 160 hydraulic directional drilling rig has become the preferred equipment for urban underground construction projects, specially built for the laying of underground pipes and cables. It can complete drilling tasks efficiently, accurately and economically while ensuring the safety of surface and underground facilities. The equipment's high - performance engine and advanced control system enable it to adapt to complex geological conditions and ensure high operating efficiency. Its user-friendly interface not only increases work efficiency but also reduces costs and environmental impact, making it ideal for utility pipe installations.
Product Specifications
| Model | RCHD-160 Directional Drill Rig |
| Rig weight | 2.2t |
| Dimensions (L×W×H) | 3700*1800*1200mm |
| Engine power | 62kw Thunder Power |
| Max. push & pull force | 160KN/16T |
| Traveling form | Remote control |
| Walking speed | 2km/h |
| Water injection system | 160 type three-cylinder mud pump |
| Max. pressure of mud pump | 2.8MPa |
| Max. flow of mud pump | 160L/min |
| Entry angle | 28° |
| Departure angle | 20° |
| Climbing ability | 35° |
| Torque | 3200N.m |
Product Features
RCHD - 160 small horizontal drilling rig, equipped with Weifan engine, high efficiency and durability. The angle of the boom is adjustable and suitable for various constructions. Rubber tracks and fast travel motors improve mobility. Remote wired control improves safety and operational visibility. The equipment is equipped with a high-pressure cast iron main pump and a high - quality mud pump to ensure performance and longevity. Compact design, suitable for urban underground projects.

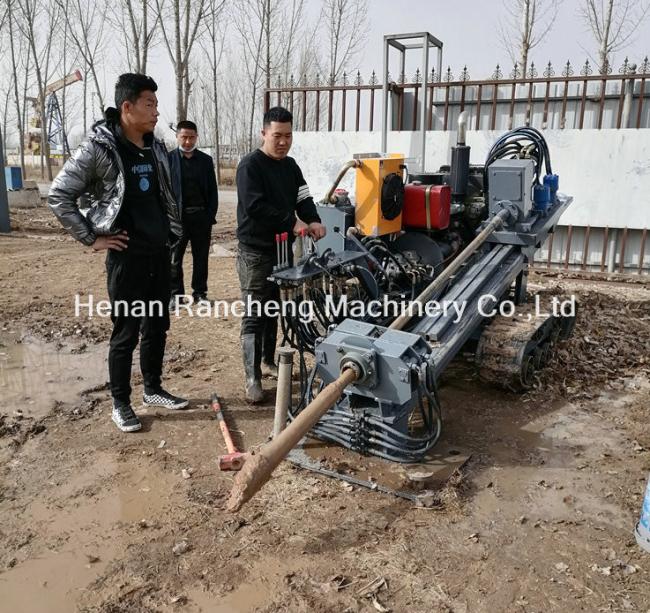

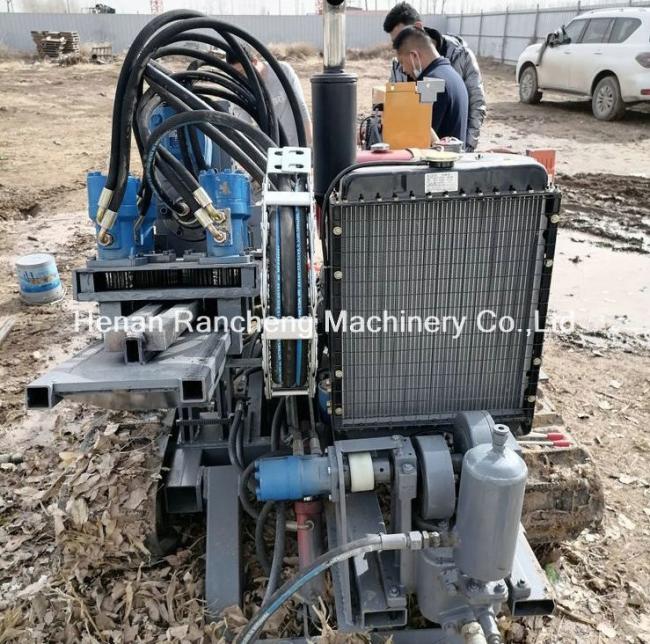

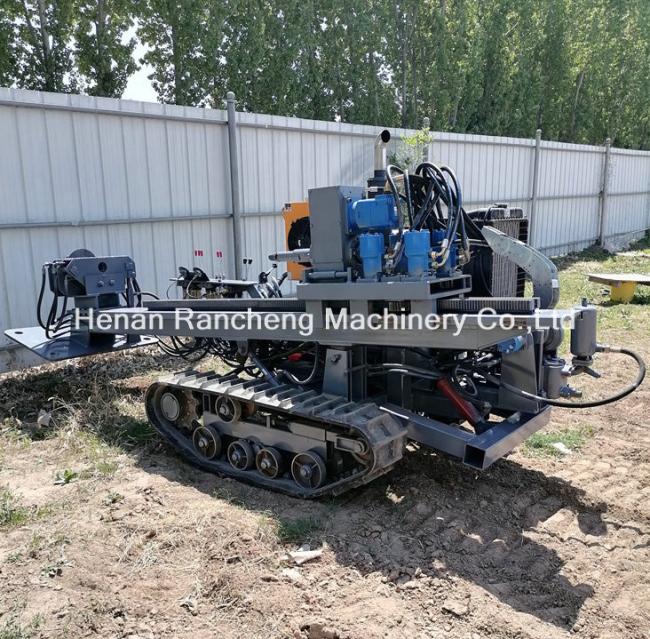

Product Image
