150m Drilling Depth Portable Water Well Drilling Machine With 450mm Borehole Diameter
150m Drilling Depth Portable Water Well Drilling Machine with 450mm Borehole Diameter
Product Description
In a water well drilling project, choosing the right equipment is crucial. We are proud to introduce you to the RCS200P portable well driller. With an impressive drilling depth of up to 150 meters and the ability to drill holes from 100mm to 450mm in diameter, this device is perfect for a variety of water well drilling projects.
However, that's not all. The RCS200P is designed with portability and flexibility in mind. Its two wheels make it easy to move, while the trailer-type design ensures stability and reliability during transportation. In addition, the RCS200P is equipped with a 22HP diesel engine, providing ample power for fast and efficient work.
The RCS200P has a wide range of applications, including farm irrigation wells, courtyard wells, garden wells, and even domestic drinking water wells. Whatever your water well drilling needs are, the RCS200P is your ideal choice.
Applications
This water well drilling machine mainly apply to geothermal drilling, farm irrigation,house yard, gardens ,water well drilling and boring drilling etc,it can drill 70-450mm diameter , Max 150m depth,It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 450mm ,it can apply to different stratum, such as sand,soil,clay,soft rock and so on.
Product Specifications
| Model of drilling machine | RCS200P |
| Drilling machine overall dimension(mm) | 1800*1000*2000 |
| Weight of Drilling machine (kg) | 1000 |
| Drill rod diameter (mm) | Ø50 |
| Drill rod length(mm) | 1500 |
| Rod change method | Full automatic screw thread |
| Drilling depth(m) | 150 |
| Diesel Motor Power (Hp/kw) | 22/16.2 |
| Drilling method | Percussive and rotating type |
| Drilling hole diameter(mm) | Within Ø 450mm |
| Stroke distance (mm) | 2000 |
| Hosting capacity (kg) | 1500 |
Product Features
1. Lightweight and energy-saving: The equipment is lightweight and can effectively save energy.
2. Patented product, unique design: It has a patented unique design and a simple drilling structure.
3. Easy to transport and operate: It is easy to transport, simple to operate, and can be learned how to use it in a short time.
4. Powerful drilling ability: It can penetrate hard formations unless it encounters thick layers of rock.
5. Single-person operation: Only one person is required to operate, reducing labor intensity.
6. Efficient and fast: High work efficiency and fast drilling speed.
7. **Easy to operate and long service life: Easy to operate and long service life.

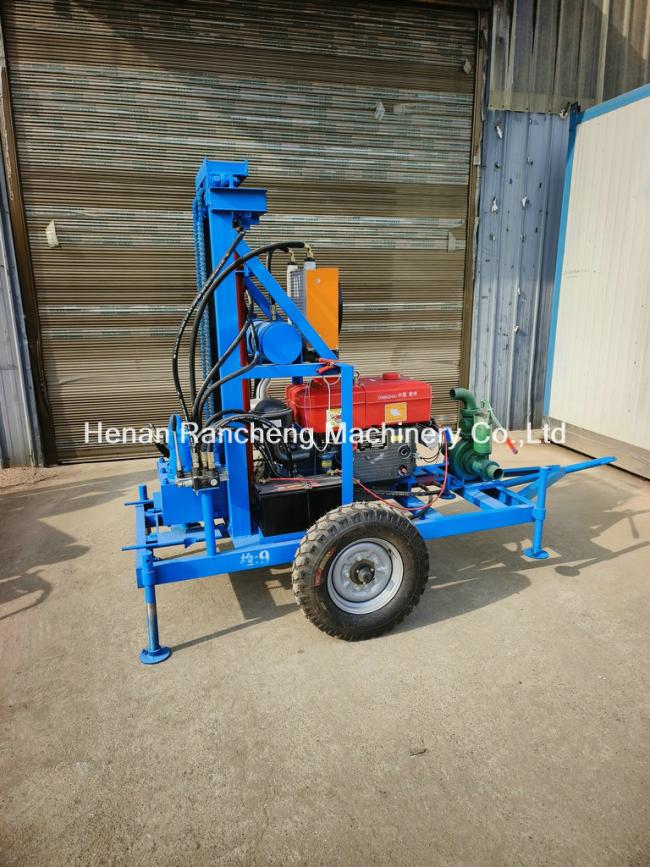

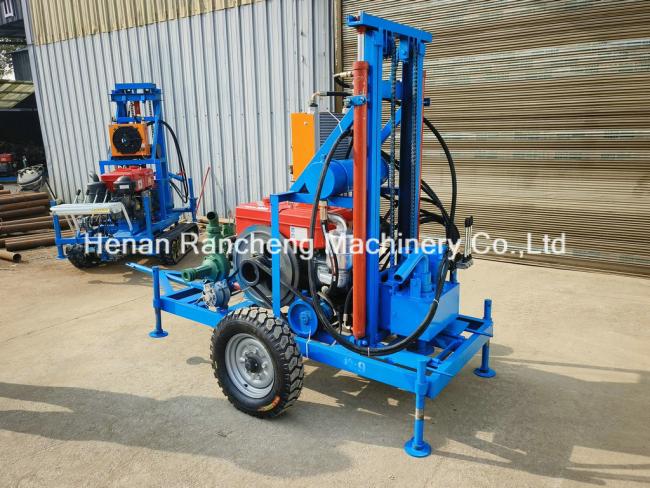

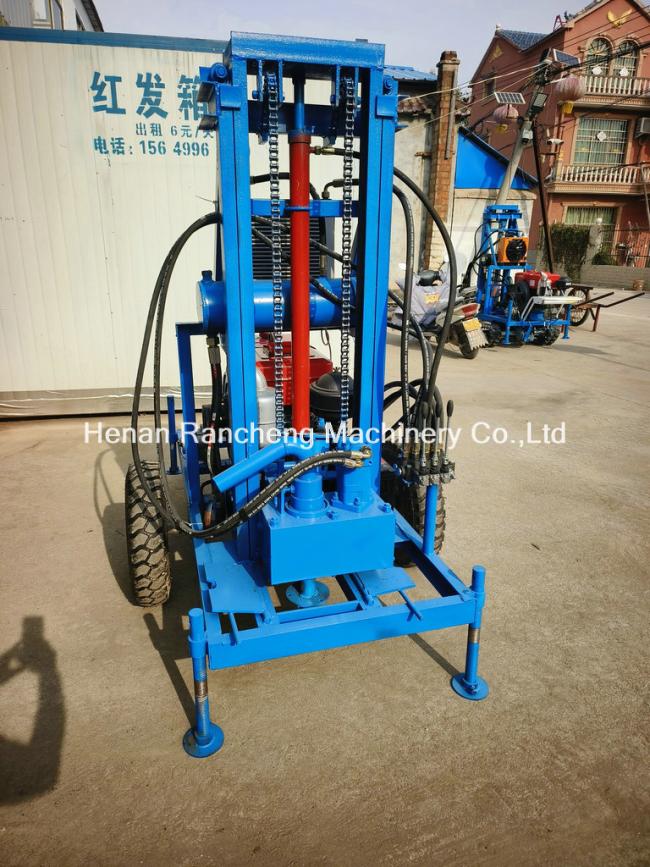

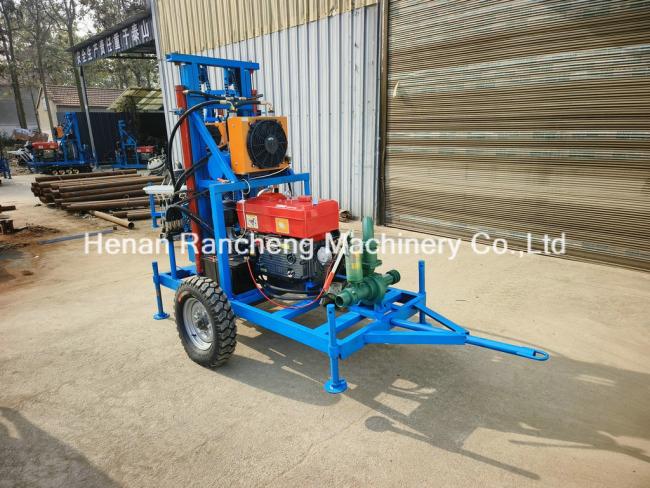

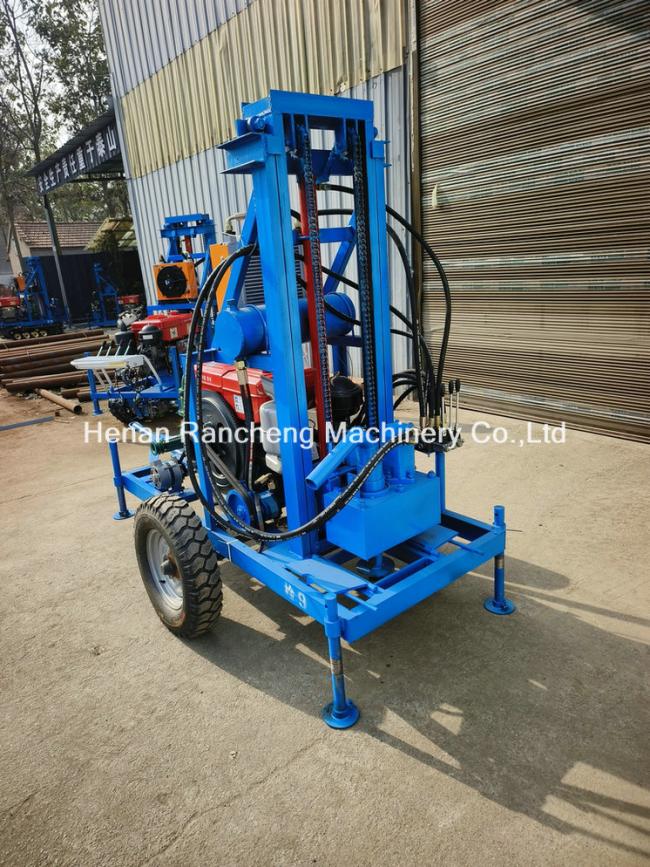

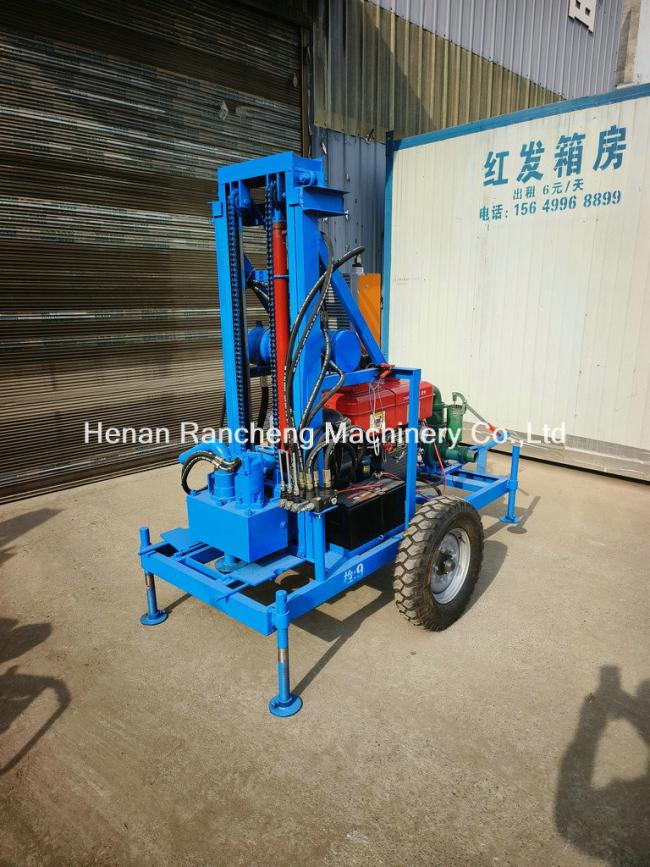

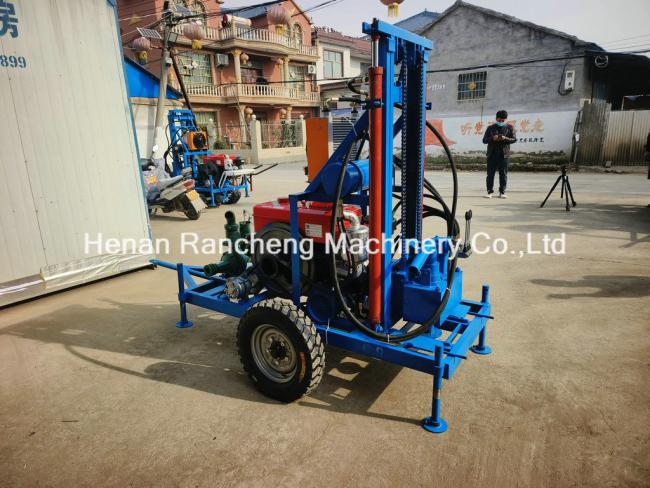

Product Image
