Small Folded Hydraulic Crawler 180m 200m Water Well Drilling Rigs
Small Folded Hydraulic Crawler 180m 200m Water Well Drilling Rigs
Product Description
This series of water well drilling machines has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, low failure rate, etc. It has been recognized by the market once it is launched, and has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields.
Application
The RCF200C is primarily used for drilling various types of wells, including those for irrigation, household drinking water, geothermal applications, hydrological studies, civil projects, and industrial purposes.
Technical Parameters
| Model | RCF200C |
| Bore diameter(Hammer) | 90-350mm |
| Bore depth | 200m |
| Air consumption | 17-35m³/min |
| Air pressure | 1.7-3.0Mpa |
| Pipe diameter | 76mm/89mm |
| Pipe length | 3m |
| Push force | 4T |
| Lifting force | 12T |
| Lifting speed | 2.5m/min |
| feeding speed | 0.5-5m/min |
| Fast lifting speed | 18m/min |
| Fast feeding speed | 35m/min |
| Max torque of the rotary | 3500-4800Nm |
| Rotary speed | 45-70r/min |
| Mud Pump flow | 250L/min (option) |
| High hydraulic leg | 1.4m |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 4000X1800X2300mm |
| Weight | 5000Kg |
| Diesel engine |
58KW Yuchai |
Product advantages
1. Energy saving. Low tower design, can drill indoor and outdoor.
2. Patented product, unique design and simple drilling structure.
3. Easy to transport and can learn how to handle the machine in short time.
4. Assure easily operation and long life service life

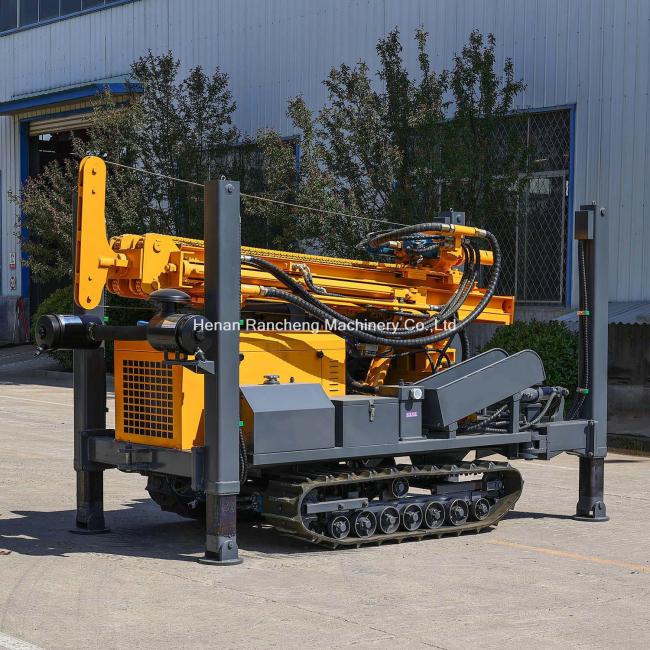

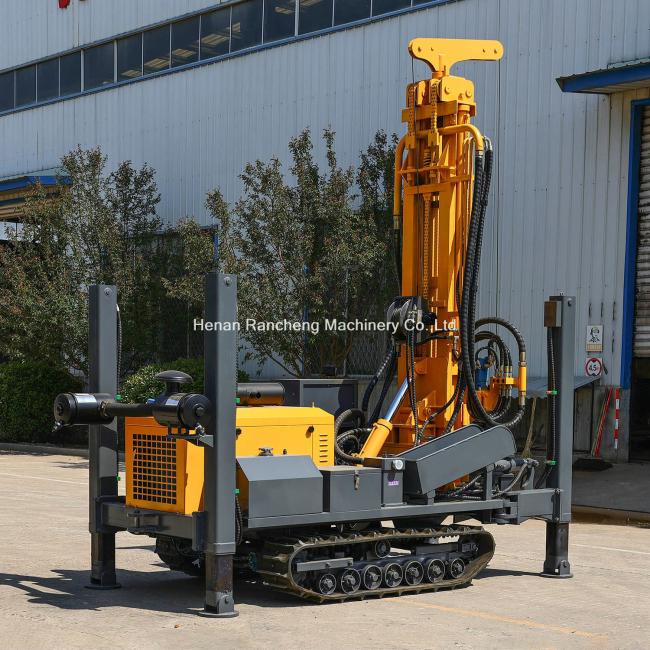

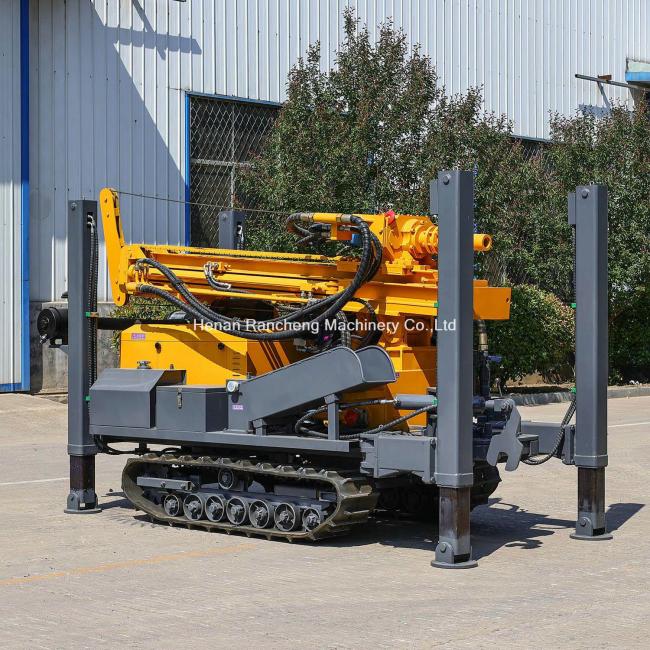

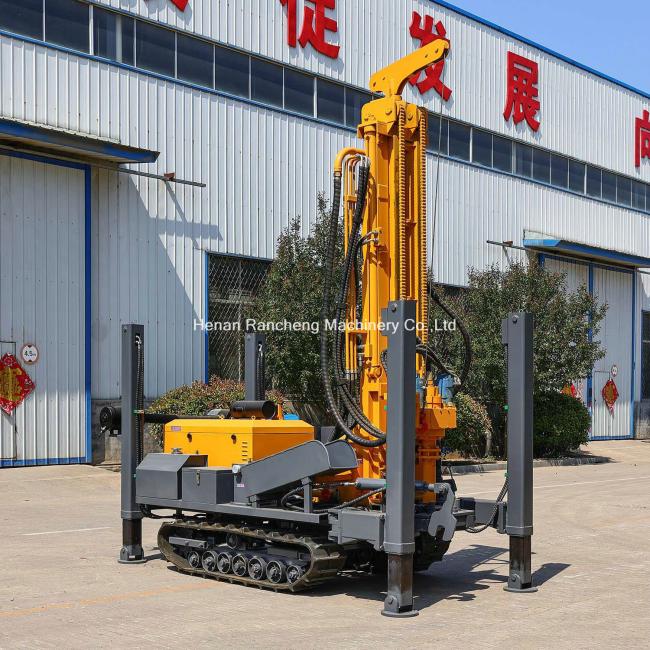

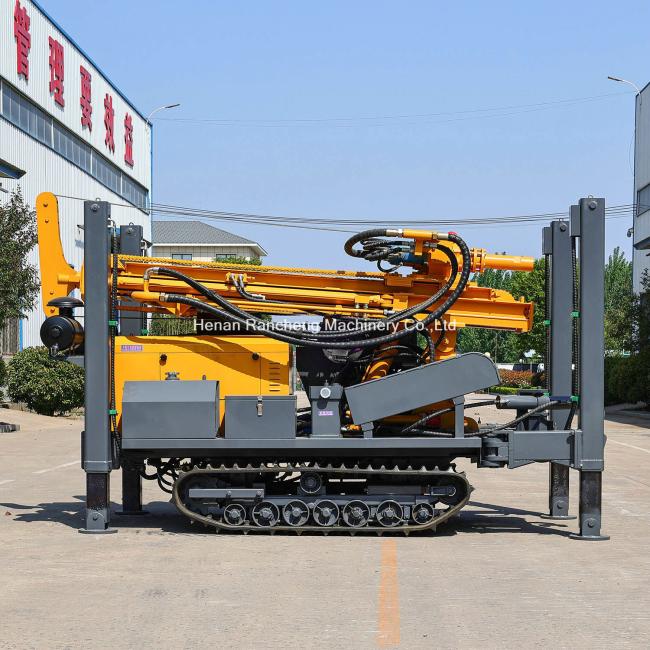

Machine picture display
