200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power
200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power
Machine Introduction
RCF200WT tractor-mounted deepwater drilling rig is a product independently developed by our company. The new generation of DTH plays an important role in achieving faster drilling speed and higher aerodynamics.
The water well drilling rig produced by our company adopts the latest model and advanced hydropower technology, with the characteristics of low consumption, large rotary torque, good hole inclination, etc. It is mainly used in resource exploration projects and hydrological wells, civil water wells, agricultural irrigation, etc. for drilling.
The drilling rigs produced by our company adopt high-quality materials, modern and compact design, higher efficiency, lower failure rate, economical and durable, and high comprehensive cost performance. Due to the positive feedback from most customers, our water drilling rigs have gained real market recognition.
Technical Parameters
| Model | RCF200WT |
| Weight (t) | 4 |
| Hole Diameter (mm) | 140 - 254 |
| Depth (m) | 200 |
| Feed Stroke (mm) | 2000 |
| Travelling Speed (km/h) | 30 |
| Climbing Angle | 25 Degree |
| Tractor Horse Power (hp) | 40 |
| Air Pressure (Mpa) | 1.7 - 2.5 |
| Air Consumption (m^3/min) | 17 - 30 |
| Rod Diameter (mm) | 76 & 89 |
| Rod Length (mm) | 2000 |
| Lifting Force (t) | 12 |
| Rotation Speed (rpm) | 45 -65 |
| Output Torque (n.m) | 4500 -5000 |
| Dimension (mm) | 3400*1500*2200 |
Machine Advantages
1,it drill max 200m depth and 90-245mm diameter
2,it is top head driving ,work with both mud pump and air compressor
3,it use 1.5m lenght drill rod ,76 or 89mm
4,full hydraulic system operation ,famous brand hydraulic system and hydraulic motor ,with stable performance and good quality ,easy to operate and maintainance

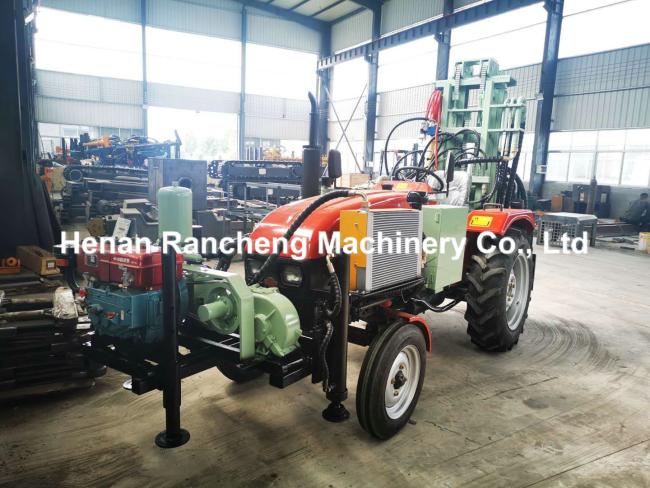

Machine Pictures
