Width 2m-4m Composite Geotextile Plastics Geonet Drainage Net for Project Solutions
Price:
$1.10 - $2.70/square meters
MOQ:
2000 square meters
Delivery Time:
Negotiable
Product Description
Products Description

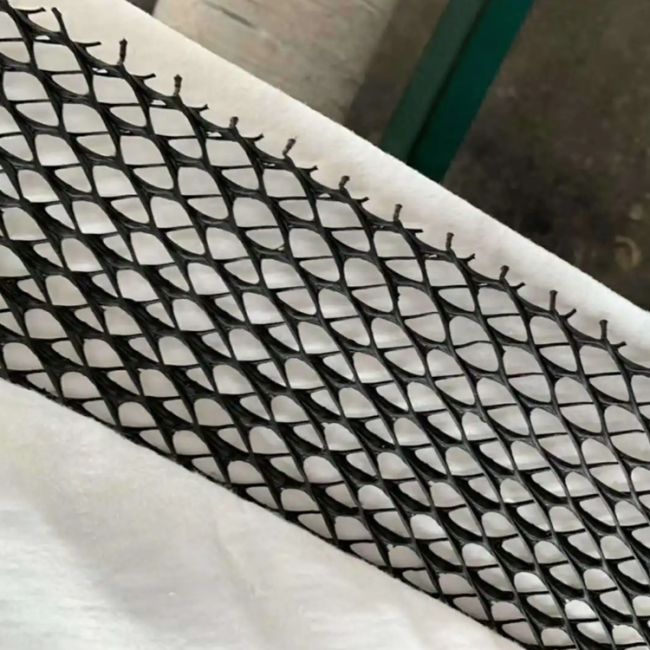

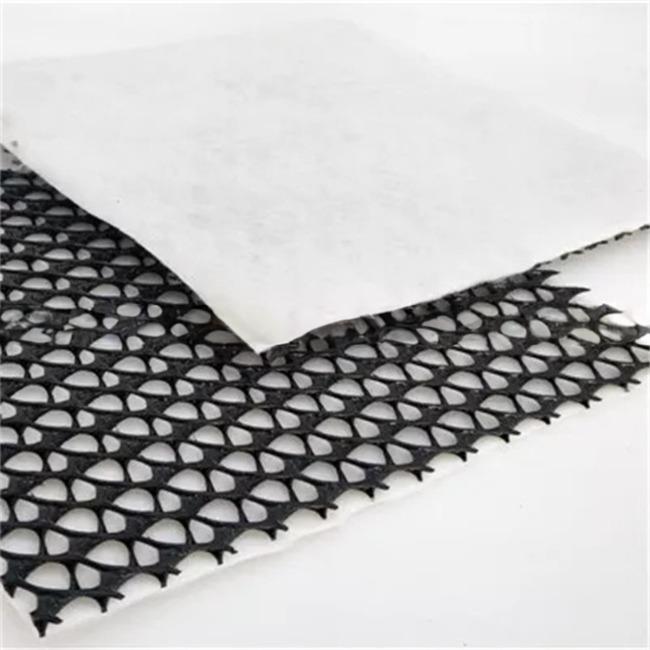

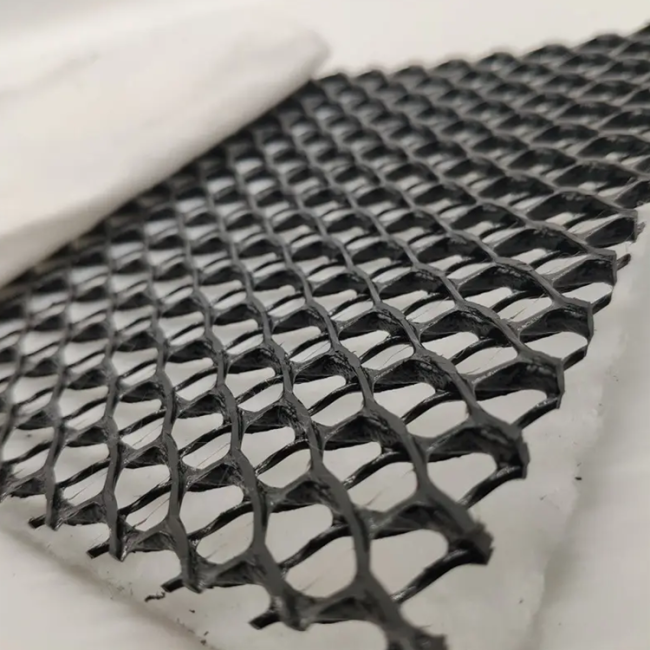

Three-dimensional drainage network (also known as three-dimensional geotechnical drainage plate,
tunnel drainage plate, drainage plate) is composed of three-dimensional plastic network double-sided bonding seepage geotextiles,which can replace the traditional sand and gravel layer, mainly used for landfill,roadbed and drainage of tunnel inner wall.
tunnel drainage plate, drainage plate) is composed of three-dimensional plastic network double-sided bonding seepage geotextiles,which can replace the traditional sand and gravel layer, mainly used for landfill,roadbed and drainage of tunnel inner wall.
Property | Unit | NLDG 50/D200 | NLDG 63/D200 | NLDG 70/D200 | NLDG 80/D200 | NLDG 90/D200 | Test Standard | |||||||
Drainage Net Specification | ||||||||||||||
Hydraulic conductivity (MD) | m2/s | 2.8×10-3 | 2.8×10-3 | 3.2×10-3 | 4.0×10-3 | 5 x10-3 | ASTM D4716 | |||||||
Puncture Resistance | KN/m | 0.17 | 0.17 | 0.17 | 0.17 | 0.17 | ASTM D7005 | |||||||
Core Material Geonet Specification | ||||||||||||||
Thickness | mm | 5 | 6.3 | 7 | 8 | 9 | ASTM D5199 | |||||||
Density | g/cm-3 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | ASTM D1505 | |||||||
Carbon Black Content | % | 2 | 2 | 2 | 2 | 2 | ASTM D1603 | |||||||
Tensile strength (MD) | kN/m | 8 | 10 | 12 | 14 | 16 | ASTM D7199 | |||||||
Hydraulic conductivity (MD) | m2/s | 6 | 8 | 10 | 12 | 14 | ASTM D4716 | |||||||
Geotextile Specification | ||||||||||||||
Unit weight | g/m2 | 200 | 200 | 200 | 200 | 200 | / | |||||||
Geotextile type | Continuous filament non-woven geotextile | |||||||||||||
Application
It is mainly used in railway, highway, tunnel, municipal engineering, reservoir, slope protection and other drainage projects.
Advantages
Three-dimensional composite drainage network is a new geosynthetic material. The structure is a three - dimensional geotextile core. The 3d geotextile consists of a thick vertical rib and a diagonal rib at the top and bottom. Groundwater that can quickly drain off roads has its own pore maintenance system that blocks capillary water under high loads. At the same time, it can also play isolation and foundation reinforcement. A new geosynthetic material. The 3d composite drainage network is made of special 3d geotextiles. A combination of geotextiles (backfiltration) and geotextiles (drainage and protection) provides a complete "backfiltrat

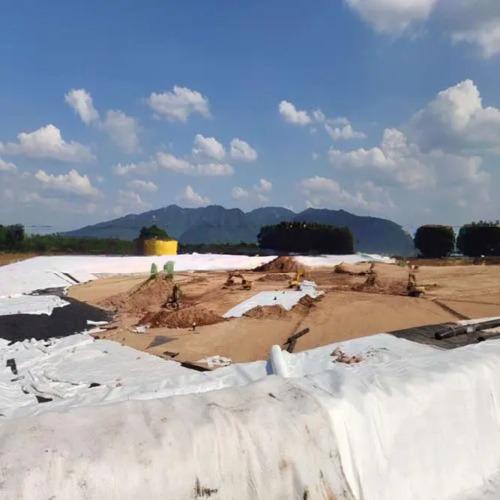

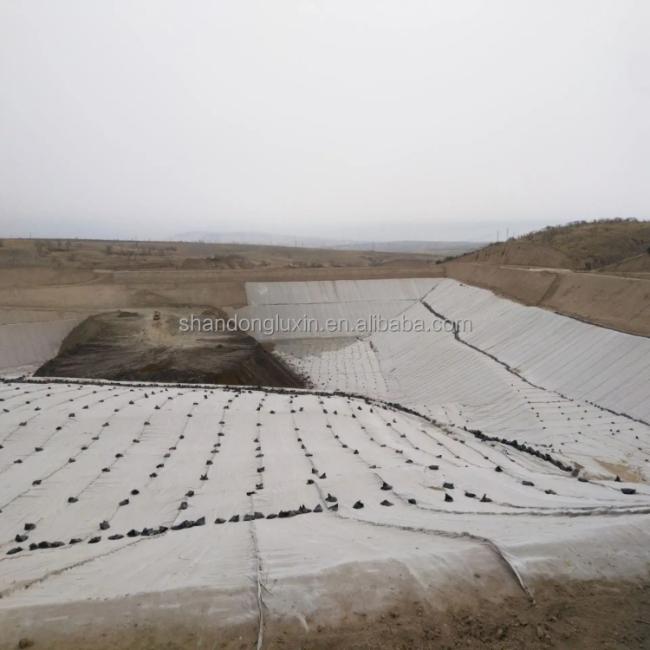

Customer Photos
Company Information
COMPANY PROFILE
FAQ
Q1: Are you trading company or manufacturer? We are factory.
Q2 : Do you provide samples? is it free or extra? Yes, we could offer the sample but do not pay the cost of freight.
Q3 : Do you accept customization? OEM can be acceptable.We can produce according to your indicators.
Q4 : How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock.
Q5 : What is your payment terms? L/C ,D/A ,D/P ,T/T ,Western Union ,Money Gram.
