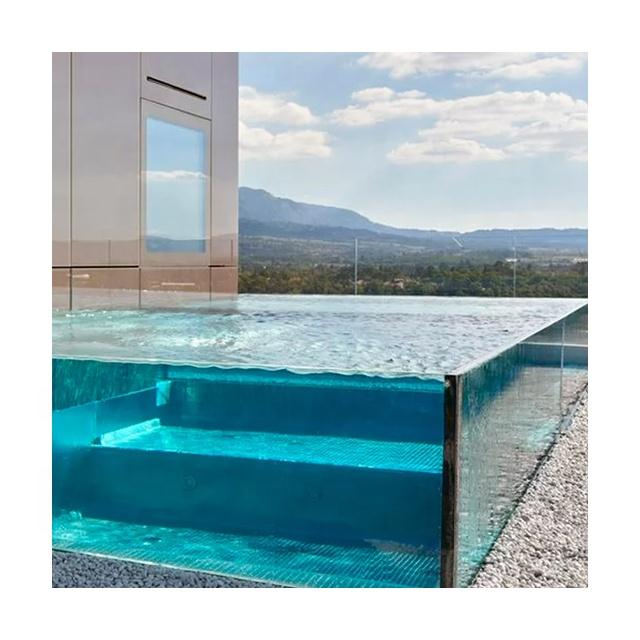

Backyard Infinity Edge Pool with Acrylic Glass View Window and 30-950mm Thickness
Price:
$5.92 - $12.82/kilograms
MOQ:
1pc
Delivery Time:
Negotiable
Brand:
AUPOOL, AUPOOL
Product Description
NO. | Physical Property | ISO | Unit | Result | ||||
1. | Specific gravity / density | D792 | Kg/m | 1175 | ||||
Optical | ||||||||
2. | Luminous Transmittance | GB/T2410-2008 | % | 92.6 | ||||
3. | Haze | GB/T2410-2008 | % | 1.8 | ||||
Mechanical | ||||||||
4. | Tensile Strength | 527-2:2012 | ||||||
a) Maximum tensile strength | MPa | 80.7 | ||||||
b) Elongation at break | % | 4 | ||||||
c)Tensile modulus | MPa | 3010 | ||||||
5. | Flexural Strength | 178:2010 | ||||||
a) Maximum flexural strength | MPa | 87.7 | ||||||
b) Maximum flexural strength | MPa | 2900 | ||||||
6. | Comintsane Yield Stress | 604:2002 | MPa | No Yield Point | ||||
7. | Izod Notched Immpact Stress | D256-10 (Method c) | J/m | 8 | ||||
8. | Shear Strength | D732-10 | MPa | 62.5 | ||||
9. | Rockwell Hardness | 2039-2:1987 | HRL | 105 | ||||
Thermal | ||||||||
10. | Flammability | UL94-2013 (7) | mm/min | 24.1 | ||||
11. | Heat Deflection Temperature | 75-2:2013(Method B) | °C | 106.2 | ||||
12. | Glass Transition Temperature | 11357-2:1999 | ||||||
a)Teig | °C | 105.6 | ||||||
b)Tmg | °C | 114.0 | ||||||
c)Tefg | °C | 122.3 | ||||||
13. | Coefficient of Linear Thermal Expansion | 11359-2:1999 | °C | -40 to 110 | ||||
a)Parallel to flow | um/m-°C | 78.60 | ||||||
b)Perpendicular to flow | um/m-°C | 80.56 | ||||||
Others | ||||||||
14. | Water Absorption | 62:2008 | % | 0.12 | ||||
15. | Odor | None | ||||||
16. | Taste | None | ||||||
Why Choose Us
Strong Production Capacity
7-15 days short production time, huge stock, large capacity.
Flat surface
Milling surface smooth on each panel
QC
Examine the interior of each Acrylic Panel under light
Dry thermostatic polymerization
Due to high technical barriers, only three companies in the world have mastered this process, which essentially solves the problem of acrylic turning yellow under light.
Flexible material
Flexural fracture resistance is very good, laboratory test bending deformation of 50% of the length dimension, hold for 1000 hours, no fracture marks
Strong impact resistance and safety
12 times that of tempered glass, 160 times that of ordinary glass, and will not automatically explode the board
How to order
1.Tell us the size
Tell us your swimming pool length,width and height,water level.It is better have design file.
2.Draft Design
By finite element analysis,we sure the thickness of acrylic,we draw design for you.
3.Production
We start production,cutting,bonding,bending,polishing,QC and packing,shipping to you
4.Installation
We provide you installation guide,our engineer can go to your side to do installation if necessary
Company Profile
Certifications
Packing & Delivery
FAQ
QI. What is your terms of packing? A: 1. use film to cover the surface of the swimming pools and bathtub.2. use EPE to wrap up swimming pools and bathtub; 3. use foam to protect the frame of swimming pools and bathtub; 4. wooden case could make sure strong protection.
Q2. What is your terms of payment? A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Q3. How about your delivery time? A: Generally, it will take 7 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Q4. Can you produce according to the samples? A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost. Q6. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery Q7. How do you make our business long-term and good relationship? A: 1. We keep good quality and competitive price to ensure our customers benefit
2. We respect every customer as out friend and we sincerely do business and make friends with them,no matter where they come from.
