1. Professional Acrylic Swimming Pool Manufacturer
2. Dry constant temperature polymerization technology
3. Outdoor non-yellowing 30 years warranty
4. 93% high transparency
5. Easy installations & cleaning
6. More than 30 patents
Acrylic Swimming Pool Bottom Pool Spliced Together For Villa Jacuzzi And More
Price:
$273.00/square meters
MOQ:
1pc
Delivery Time:
Negotiable
Brand:
AUPOOL
Product Description
Clear Outdoor Acrylic Swimming Pool Made by AUPOOL
Acrylic Panel Specifications
|
PROPERTIES
|
VALUES
|
RULES
|
|
Density
|
1.19 g/cm3
|
ISO 1183-1:2012 Method A
|
|
Rockwell Hardness
|
112L
|
ISO 2039-2:1999
|
|
Tensile Modulus
|
3150MPa
|
EN ISO 527:2012
|
|
Tensile Strength
|
80.0MPa
|
EN ISO 527:2012
|
|
Tensile Strain at Break
|
3.2%
|
EN ISO 527-1:2012
|
|
Water Absorption
|
0.20%
|
ISO 62:2008 Method 1
|
|
Total Luminous Transmittance
|
93.4%
|
ISO 13468-1:1996
|
|
Vicat Softening Temperature
|
105℃
|
ISO 306:2013 Method B50
|
|
Light Ageing Test- UV Exposure
|
Grey scale: 5
|
ISO 4892-3:2016 Cycle 1
|
|
Mean Coefficient of Linear Thermal Expansion
|
72×10-6 K-1
|
ISO 11359-1:2014
|
|
Compressive Stress at Yield
|
129MPa
|
EN ISO 604:2003
|
|
Flexural Strength
|
120MPa
|
ISO 178:2013
|
|
Compressive Yield Strength
|
111MPa
|
ASTM D695-15
|
|
Compressive Modulus
|
3450MPa
|
ASTM D695-15
|
|
Shear Strength
|
59.7MPa
|
ASTM D732-17
|
|
Deflection Temperature under Load
|
100.2℃
|
ASTM D648-18 Method B
|
|
Modulus Elasticity
|
2810MPa
|
ASTM D695-15
|
|
Raw materials
|
100% virgin of Lucite MMA materials
|
|
|
|||
|
Thickness
|
30-150mm one time casting, 150-950mm mm Multi-plate composite overlay
|
|
|
|||
|
Color
|
Transparent(transparent 93%) of cast acrylic panel
|
|
|
|||
|
MOQ
|
1 PCS acrylic panel/curve/tunnel/L shape acrylic panel
|
|
|
|||
|
Below molding sizes are for your reference. Please note that: below size (molding size) ≠ panel net size
|
|
|
|
|||
|
Size
|
Thickness
|
Size
|
Thickness
|
|||
|
1300x2500mm
|
30-70mm
|
1350x2650mm
|
30-100mm
|
|||
|
1450x2700mm
|
30-100mm
|
1600x2600mm
|
30-100mm
|
|||
|
1650x3150mm
|
30-100mm
|
2200x3200mm
|
30-110mm
|
|||
|
1650x3500mm
|
30-100mm
|
2750x4250mm
|
30-130mm
|
|||
|
1800x5000mm
|
30-150mm
|
2100x5500mm
|
30-150mm
|
|||
|
3000x6200mm
|
50-250mm
|
3000x6700mm
|
50-250mm
|
|||
|
3000x8200mm
|
80-250mm
|
3000*8700mm
|
80-250mm
|
|||
|
3000x11500mm
|
100-250mm
|
3700x8100mm
|
120-300mm
|
|||
|
Generally, Our factory introducing the use of acrylic panels into architectural project such as oversize aquarium,outdoor swimming pool and water feature.
|
|
|
|
|||
Products Description
AUPOOL Acrylic Panel
AUPOOL Acrylic Panel
AUPOOL is one of top 3 world largest manufacturers of cast acrylic block.
Pool builders and others can count on us to have the materials they need. We have a large inventory at our Huizhou fabrication centre.
We cut, shape and bond made-to-measure acrylic windows here in China. Installation services also available if needed.
Click Here to Contact Us, We Will Show You More Cases and Our New Products
Products and Applications
Rooftop transparent swimming pool at Khai Hoan Hotel, Vietnam (2016)
Lingyun Pavilion suspended transparent swimming pool in Malaysia (2015)
Yingkou Bayu Bay Magic Hot Spring Park Hanging Transparent Swimming Pool (2020)
Sunshine One Hotel Haitang Bay Sanya suspended transparent swimming pool (2020)
Why Choose Us
Strong Production Capacity
7-15 days short production time, huge stock, large capacity.
Flat surface
Milling surface smooth on each panel

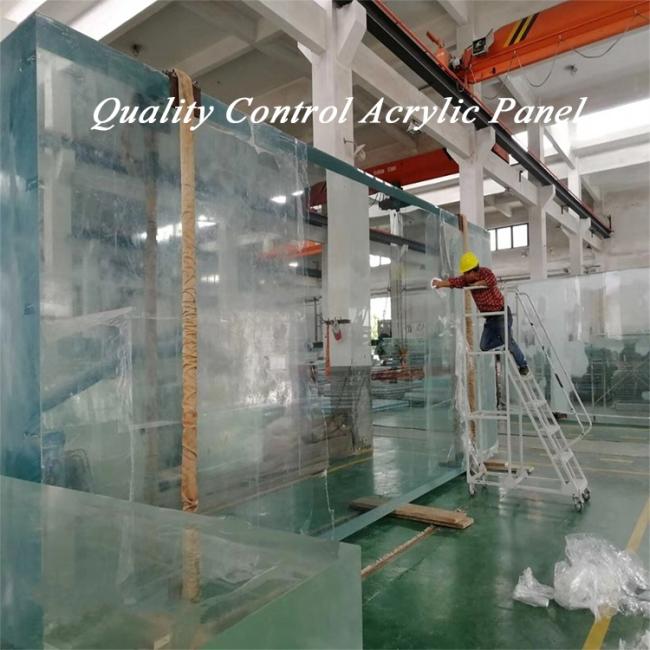

QC
Examine the interior of each Acrylic Panel under light
Dry thermostatic polymerization
Due to high technical barriers, only three companies in the world have mastered this process, which essentially solves the problem of acrylic turning yellow under light.
Flexible material
Flexural fracture resistance is very good, laboratory test bending deformation of 50% of the length dimension, hold for 1000 hours, no fracture marks
Strong impact resistance and safety
12 times that of tempered glass, 160 times that of ordinary glass, and will not automatically explode the board
How to order
Which one do you like, please let me know.
Acrylic in pool
1.Tell us the size
Tell us your swimming pool length,width and height,water level.It is better have design file.
2.Draft Design
By finite element analysis,we sure the thickness of acrylic,we draw design for you.
3.Production
We start production,cutting,bonding,bending,polishing,QC and packing,shipping to you
4.Installation
We provide you installation guide,our engineer can go to your side to do installation if necessary
Company Profile
Our company is at the forefront of technological innovation with our advanced dry constant-temperature polymerization process, ensuring top-notch performance and safety in all of our products. Our unique and thoughtful designs in material application have garnered widespread acclaim from clients around the world, including design firms, real estate developers, hotel operators, pool contractors, landscaping companies, and villa owners in North and South America, Europe, Australia, and beyond. Our commitment to excellence extends beyond product quality and design to our production processes, where we employ state-of-the-art seamless splicing techniques. Additionally, we have revolutionized the way we engage with clients by offering stage-by-stage service contracts that mitigate the risk of loss for our customers. Our track record speaks for itself, having partnered with top-tier clients such as the five-star hotel in Nairobi, Kenya, the Kinta Riverfront Hotel in Ipoh, Malaysia, the Kaiden five-star hotel in Jakarta, Indonesia, and the Sentosa Yacht Club in Singapore. We are proud of our reputation as an industry leader, continuously pushing the boundaries of what is possible and setting new standards for quality and innovation.
Certifications
Packing & Delivery
FAQ
Q1. What types of international clients has the company worked with, and can you provide examples of specific projects they have collaborated on? The company has worked with various types of international clients including design companies, real estate developers, hotel operators, pool engineering firms, landscaping companies, and villa owners in South America, North America, Europe, and Australia. Some examples of projects they have collaborated on include the five-star hotels in Nairobi, Kenya, Ipoh, Malaysia, Jakarta, Indonesia, and the yacht club in Sentosa, Singapore. Q2. Who are some of the company's domestic partners in the real estate and hotel industries in China, and what are some of the notable projects they have worked on together? The company has collaborated with domestic partners such as Shimao Group, Fosun Real Estate, Sunac China, China Overseas Property, Qinchengda Real Estate, JLL Group, Poly Property, Qiaoxin Real Estate, Vanke, Sanzheng Real Estate, and Taikoo Hui on various real estate and hotel projects. Notable projects they have worked on together include the Half-Mountain Hotel in Sanzheng, Sanya Atlantis Hotel, Sunshine One Hotel in Sanya, Shenzhen Hotel, and InterContinental Hotel. Q3. Can you name some of the design companies and equipment engineering firms that the company has collaborated with, and in what capacity have they worked together on projects? Some of the design companies and equipment engineering firms that the company has collaborated with include CCD, Gao Wen'an, and SL.D for design, and Daisylec for equipment engineering. They have worked together on various projects, such as designing the interior of hotels and villas, and providing equipment and technology solutions for the swimming pools in these facilities.
