Description:

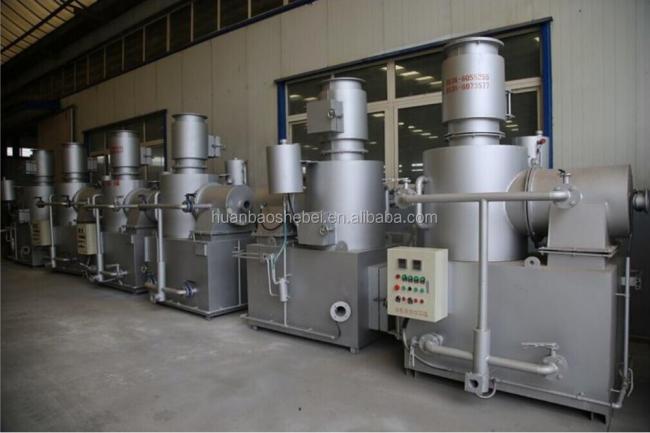

WFS Series Waste Incinerator is a kind of machine that was developed on the basis of Japanese technology, absorbs advantages of similar equipment both at home and abroad. It features unique and advanced merits with compact size, high burning effect, reasonable burning technology, high degree of non-harm etc.It is an ideal choice for waste treatment of hospitals, hotels and various areas.
Features:
(1) Gasifiedpyrolysis incineration is used for burning many kinds of waste.
(2) Waste can be burned once everyday by gasified incineration.
(3) Gasified incineration, mixed incineration and burnout treatment ensures low emission standard of dust,dioxin etc.
(4) Totally enclosed operation is suitable for treating infectious waste to avoid secondary pollution.
(5) Compact structure and small land occupation.
2024 Solid Smokeless Hospital Waste Incinerator with Voltage 380v/220v and 2-13tons
Price:
$3,999.00/sets 1-1 sets
MOQ:
1
Delivery Time:
Negotiable
Brand:
Better
Product Description
PRODUCT DESCRIPTION
Model | WFS-30 | WFS-50 | WFS-150 | WFS-300 | WFS-500 |
Burning Capacity | 20-30kg/time (3-6 times/day) | 30-50kg/time (3-6times/day) | 100-150kg/time (3-6times/day) | 200-300kg/time (3-6times/day) | 300-400kg/time(3-6times/day) |
Incinerator Size m (L*H*B) | 1.45*0.9*1.75 | 1.8*1.15*3 | 2*1.4*3.5 | 2.2*1.4*3.8 | 3*2*4.8 |
Imputing Mouth Width (mm) | 480*600 | 620*800 | 760*960 | 900*1100 | 1080*1280 |
Chimney External Diameter (mm) | 280 | 280 | 300 | 400 | 460 |
Draught Fan | 0.37kw | 0.37kw | 0.5kw | 1.1kw | 1.1kw/0.55kw |
Combustion Improver Device | 0.11kw Oil consumption: 4-6kg/h | 0.11kw Oil consumption: 4-10kg/h | 0.11kw Oil consumption: 4-10kg/h | 0.22kw Oil consumption: 7-14kg/h | 0.22kw Oil consumption: 7-14kg/h |
Re-Burning Device | 0.11 kw Oil consumption 4-6 kg/h | 0.11kw Oil consumption: 4-10kg/h | 0.22kw Oil consumption: 7-14kg/h | 0.37kw Oil consumption: 10-20kg/h | 0.37kw Oil consumption: 15-26kg/h |
Voltage | 380v/220v | 380v/220v | 380v/220v | 380v/220v | 380v/220v |
More Model Information, Please Contact Us.
APPLICATION
WFS series of life waste incinerator is used in a pyrolysis gasification and the most a dvanced around the wind mixed fuel + .two + bum treatment of incineration. The incinerator in a combustion chamber design due to the gasification incineration technology makes the temperature of incinerator furmace goes from 200 to 400 degrees Celsius never produced incombustion process clinker. slag, sintering and other problems.
In the two mixed burning chamber is provided with two times burning burner and tangential air-supply device. At high temperature. the combustible gas in the flue gas can burn fully. can be eficient to gas and air produced by the gasification furnaceis fully mixed combustion. prevent the occurence of carbon material escape styles and delayed firing phenomenon.
The flue gas in the high temperature. combustion chamber with tangential entry and combustion air into the combustion mode etc. the flue gas in the combustion chamber can be flly burning and the use of rotary flow of flue gas dust removal, incineration fue gas residence time in the fumace more than 2seconds. the combustible gas in the fue gas and fly ash completely burned.a dry exhaust gas purification device on the upper part of the incinerator. the adsorption of hydrogen chloride.
Sulfur oxide generated in the incineration. flue gas odor components are decomposed at high temperature. with calcium hydride flter tiles and acid gas and reaction gas Cleaning system. the adsorption of acid gases. the purpose of tail gas purification. The harmful components in smoke is reduced to the national" hazardous waste incineration pollution control standards ( GB18484 2001 )”and other standard below the specified valve.
ABOUT US
OUR SERVICE
RECOMMEND PRODUCT
PACKAGING AND TRANSPORTATION
BUYER'S PRAISE
FAQ
Q: How to buy your incinerator?
A: You can provide us the waste kind and waste quantity(connect us for more details). we will recommand you the suitable model incinerator.
Q: What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 3 to 4 weeks.
Q: How to install after the equipments arriving destination?
A: We will provide detailed illustrations to you. And we will send a technician to guide for installation and debugging. After debugging equipment, he will teach your workers how to use it and how to maintain it.
A: You can provide us the waste kind and waste quantity(connect us for more details). we will recommand you the suitable model incinerator.
Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
Q: What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 3 to 4 weeks.
Q: How to install after the equipments arriving destination?
A: We will provide detailed illustrations to you. And we will send a technician to guide for installation and debugging. After debugging equipment, he will teach your workers how to use it and how to maintain it.
