Dissolved Air Flotation Machine for Chicken Slaughtering Wastewater Pre-treatment
Price:
$4,878.00/pieces >=1 pieces
MOQ:
1
Delivery Time:
Negotiable
Brand:
Better
Product Description
Product Description

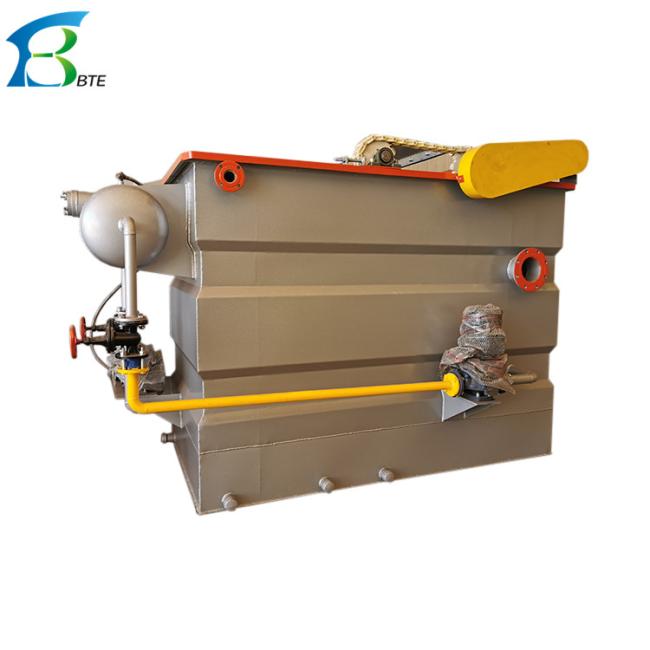

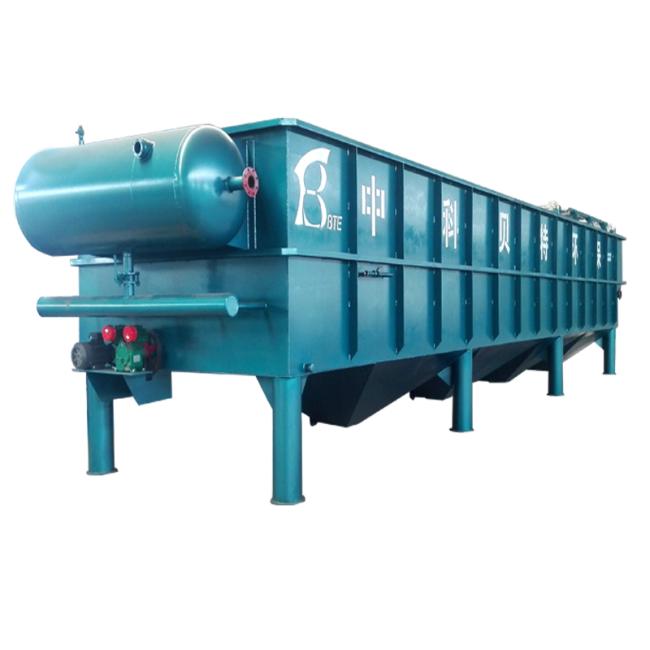

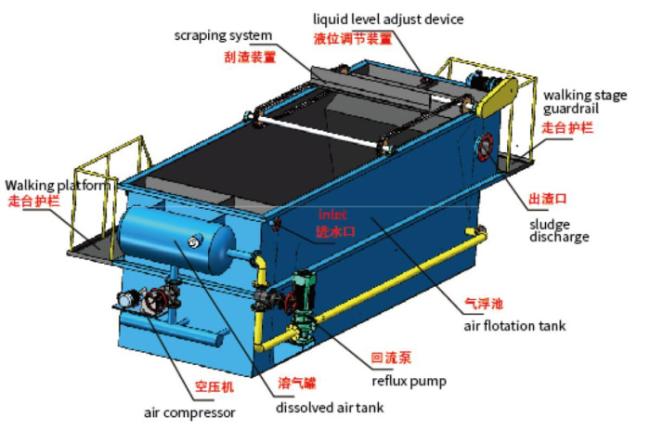

YW series Dissolved Air Flotation Machine is mainly used for solid-liquid separation. Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles which with the same density as wastewater to make the whole float to the surface thus achieve the goal of separation.
Model | Capacity(m³/h) | Main motor power(KW) | Foam scraper power(KW) | Air compressor power(KW) | Overall dimension(mm) |
YW-5 | 4-5 | 3 | 0.37 | 1.5 | 3300x1800x2200 |
YW-10 | 8-10 | 3 | 0.37 | 1.5 | 4000x2100x2200 |
YW-20 | 15-20 | 7.5 | 0.37 | 1.5 | 4600x2400x2200 |
YW-30 | 20-30 | 7.5 | 0.37 | 1.5 | 5200x2600x2400 |
YW-40 | 30-40 | 7.5 | 0.55 | 1.5 | 6000x2600x2400 |
YW-50 | 40-50 | 7.5 | 0.55 | 1.5 | 7000x2600x2400 |
Features of DAF
1).Design treatment capacity:5-300 m3/h.
2).High-rate clarifier for high SS water (light particles, oil and colloid).
3).Fully(100%) manufactured in the factory, and no need secondary welding. It costs 3h for 2 manpower to assemble.
4).Indoor or outdoor layout (environmental temperature should be over 0°C).
5).Apply to automatic & continuous operation.
6).Design life: Carbon steel material:>10years;
304 Stainless steel material:>20years.
316 Stainless steel material:>25 years
1).Design treatment capacity:5-300 m3/h.
2).High-rate clarifier for high SS water (light particles, oil and colloid).
3).Fully(100%) manufactured in the factory, and no need secondary welding. It costs 3h for 2 manpower to assemble.
4).Indoor or outdoor layout (environmental temperature should be over 0°C).
5).Apply to automatic & continuous operation.
6).Design life: Carbon steel material:>10years;
304 Stainless steel material:>20years.
316 Stainless steel material:>25 years
Testing

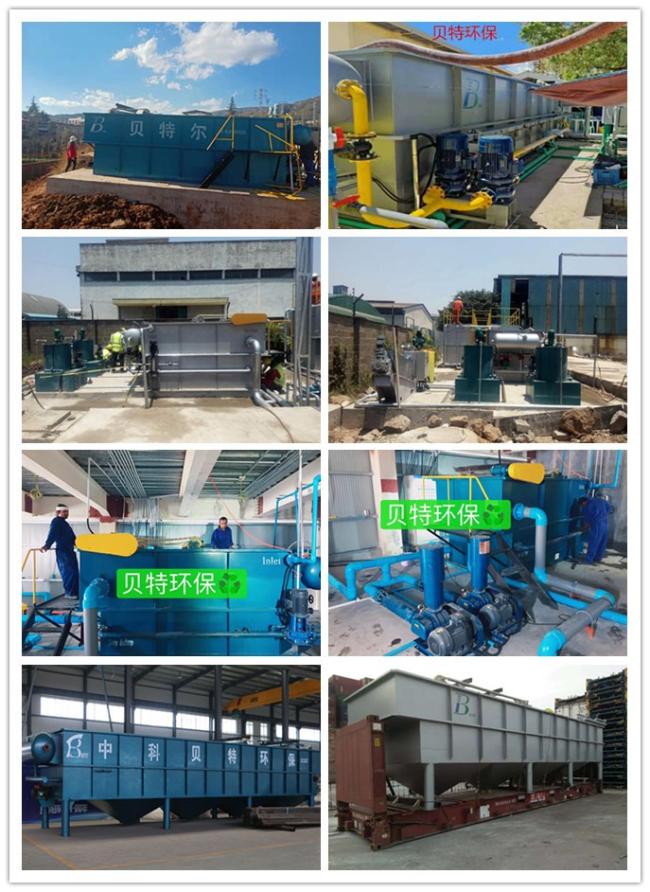

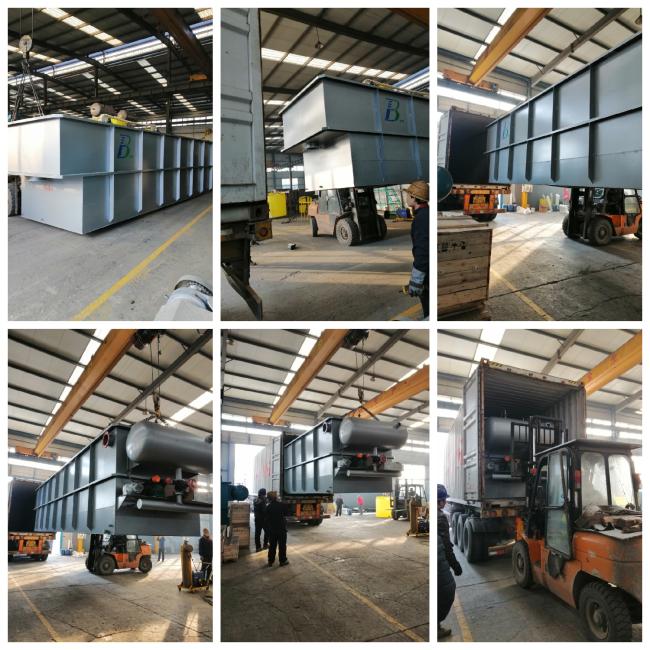

Loading site

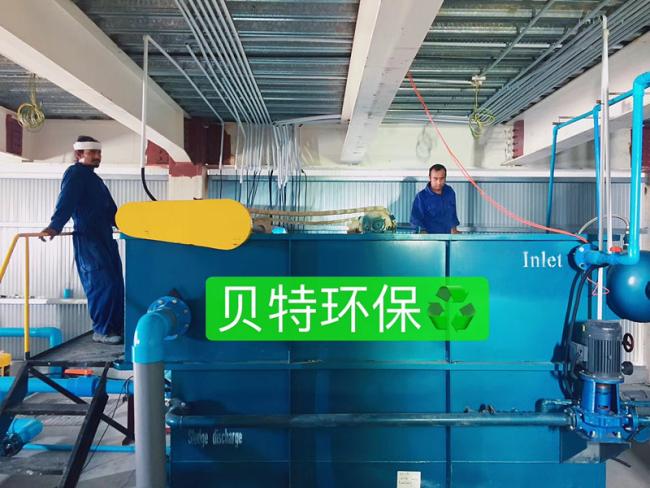

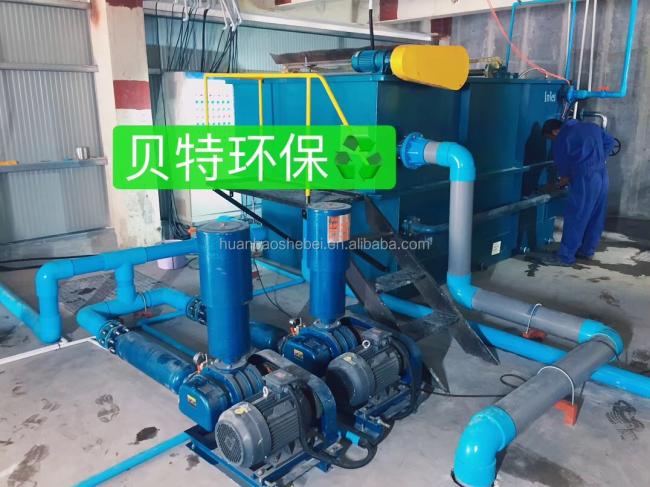

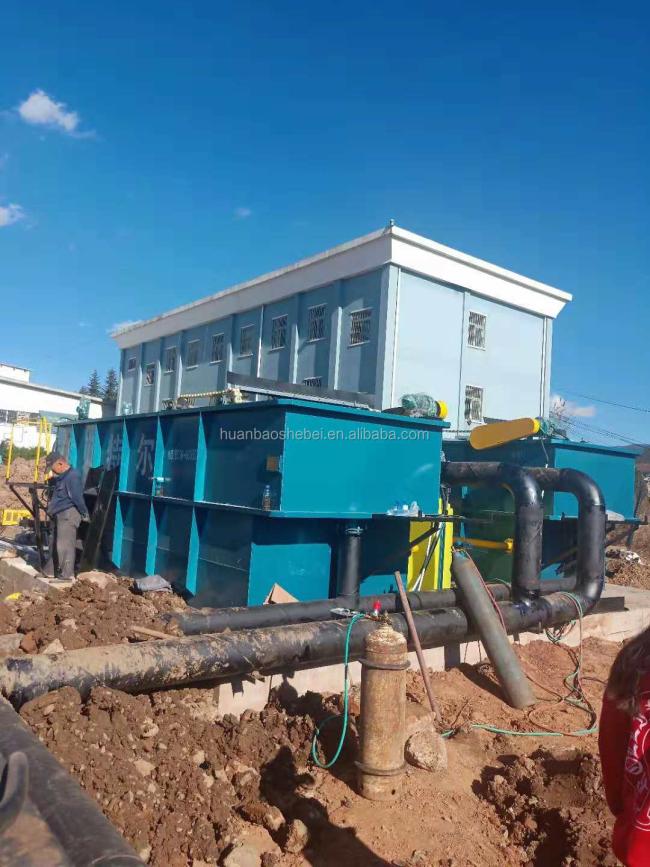

Business case
Application
1) Separating small particles and algae in groundwater.
2) Recovering valuable matters in industrial sewage such as paper pulp.
3) Acting as secondary sedimentation tank to separate and concentrate suspended particles and sludge.
2) Recovering valuable matters in industrial sewage such as paper pulp.
3) Acting as secondary sedimentation tank to separate and concentrate suspended particles and sludge.
After Sales Service
1year warranty
online support
engineer assistance
Certifications
Company Profile
Company profile
Founded in 2006,specialized in technical research and development,production ,design of wastewater treatment equipment,solid-liquid separation and incinerators.
