Features
(1) Large capacity, high efficiency and small occupying space.
(2) Compact structure, easy operation and maintenance.
(3) Silt expansion elimination.
1500 kg Weight DAF Wastewater Treatment Plant for Large-Scale Wastewater Treatment
Price:
$5,000.00/sets >=1 sets
MOQ:
1
Delivery Time:
Negotiable
Brand:
BETTER
Product Description
Product Description
Description:
Yw series Dissolved Air Floatation Machine is mainly used for solid-liquid or liquid-liquid separation. Large sum of micro bubbles
produced by dissolving and releasing system adhere to solid or liquid particles which with the same density as waste water to moke
the whole float to the surface thus achieve the goal of separation.
Yw series Dissolved Air Floatation Machine is mainly used for solid-liquid or liquid-liquid separation. Large sum of micro bubbles
produced by dissolving and releasing system adhere to solid or liquid particles which with the same density as waste water to moke
the whole float to the surface thus achieve the goal of separation.
model | capacity: m3/h |
YW-5 | 1-5 m3/h |
YW-10 | 6-10 m3/h |
YW-15 | 11-15 m3/h |
YW-20 | 16-20 m3/h |
YW-30 | 30 m3/h |
YW-50 | 50 m3/h |
YW-100 | 100 m3/h |
other capacity | can be customized different capacity |
Direction
Description of application effect
(4) Aerate to the water while air floating, it has an obvious effect to the elimination of active agent and foul smell in water.
Meanwhile, the increased dissolved oxygen provides a favorable condition to the follow-up process.
(5) It can achieve the best effect in adopting this method when disposing the water with lower temperature, lower turbidity andMeanwhile, the increased dissolved oxygen provides a favorable condition to the follow-up process.
more algae.
Suitable area:
slaughtering, starch, pharmaceuticals, papermaking, printing and dyeing,leather and tannery, petrochemical industry, domestic
wastewater, etc.
Detailed Images
Widely Application:
(1) Remove oil and TSS.
(2) Separate small particles and algae in groundwater.
(3) Recover valuable products in industrial sewage such as paper pulp.
(4) Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.
(2) Separate small particles and algae in groundwater.
(3) Recover valuable products in industrial sewage such as paper pulp.
(4) Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.
Size Information
Technical Parameter
model | capacity m3/h | main motor power kw | scraper motor power kw | compressor power kw | dissolved air tank size mm | overall dimension mm | ||||||
YW-5 | 4-5 | 3 | 0.55 | 1.5 | φ400*1000 | 3300*1800*2000 | ||||||
YW-10 | 8-10 | 4 | 0.55 | 1.5 | φ500*1512 | 4000*2100*2200 | ||||||
YW-15 | 10-15 | 7.5 | 0.55 | 1.5 | φ500*1512 | 4400*2400*2200 | ||||||
YW-20 | 15-20 | 7.5 | 0.55 | 1.5 | φ500*1512 | 4600*2400*2200 | ||||||
YW-30 | 20-30 | 7.5 | 0.55 | 1.5 | φ500*1512 | 5200*2600*2400 | ||||||
YW-40 | 30-40 | 7.5 | 0.75 | 2.2 | φ600*1880 | 6000*2600*2400 | ||||||
YW-50 | 40-50 | 7.5 | 0.75 | 2.2 | φ600*1880 | 7000*2600*2400 | ||||||
YW-60 | 50-60 | 11 | 0.75 | 2.2 | φ600*1880 | 7600*2800*2400 | ||||||
YW-70 | 60-70 | 11 | 0.75 | 2.2 | φ650*2034 | 8400*2800*2400 | ||||||
YW-80 | 70-80 | 11 | 0.75 | 3 | φ650*2034 | 9200*2800*2400 | ||||||
YW-105 | 90-105 | 15 | 1.1 | 3 | φ700*1980 | 10000*2800*2600 | ||||||
YW-200 | 175-200 | 30 | 1.1 | 5.5 | φ800*2100 | 15800*2800*2600 | ||||||
YW-300 | 280-300 | 37 | 1.1 | 5.5 | φ1000*2900 | 19200*3400*2800 | ||||||

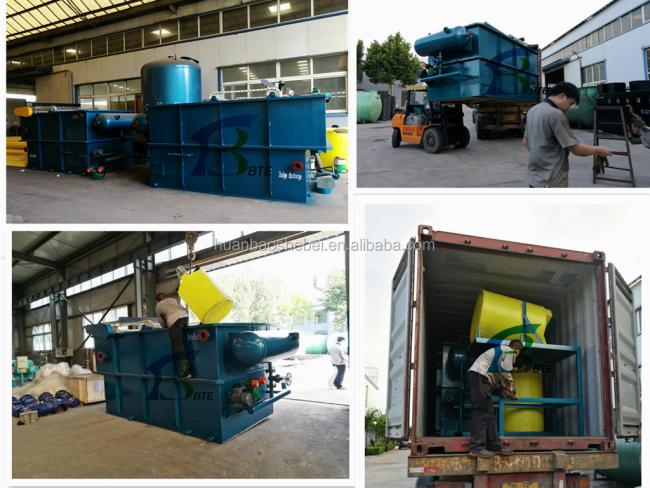

The equipment can be loaded into container or by Flat Rack container, please don't worry loading. The machine can be customized according to different capacity. | ||||||||||||
