1. Detailed installation manual and maintenance guideline are provided with the equipment.
2. Technical training and site-commissioning are available for you.
3. Any equipment issue, we will stand by. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.

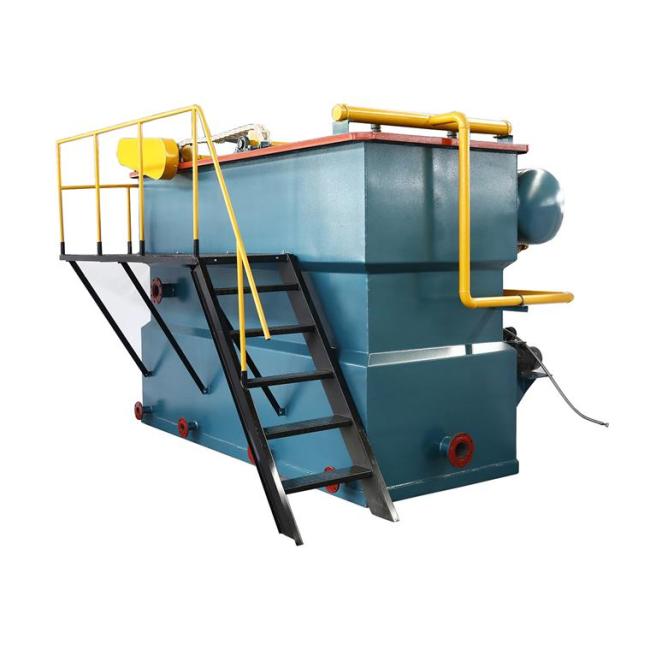

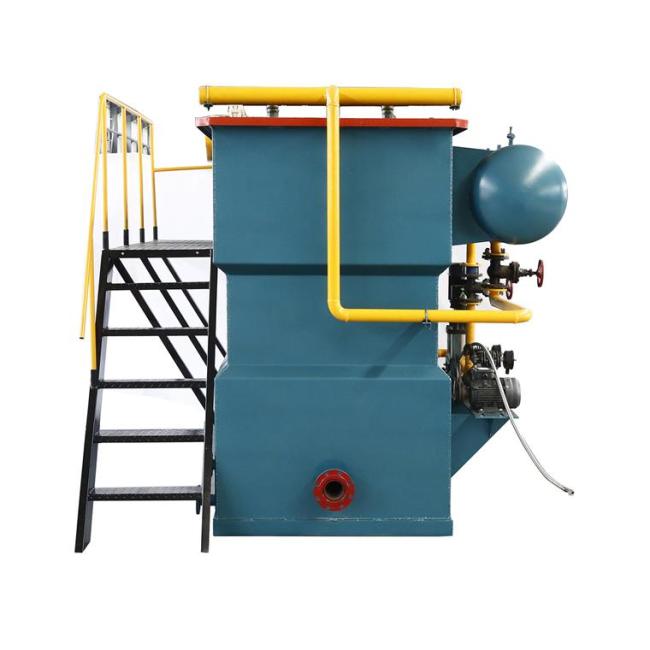

Industrial Floating Industries Oil Water Separator Grease Trap with High Capacity
Price:
$6,990.00/sets
MOQ:
1
Delivery Time:
Negotiable
Brand:
BETTER
Product Description
YW series Dissolved Air Floatation is mainly for solid-liquid or liquid-liquid separation.

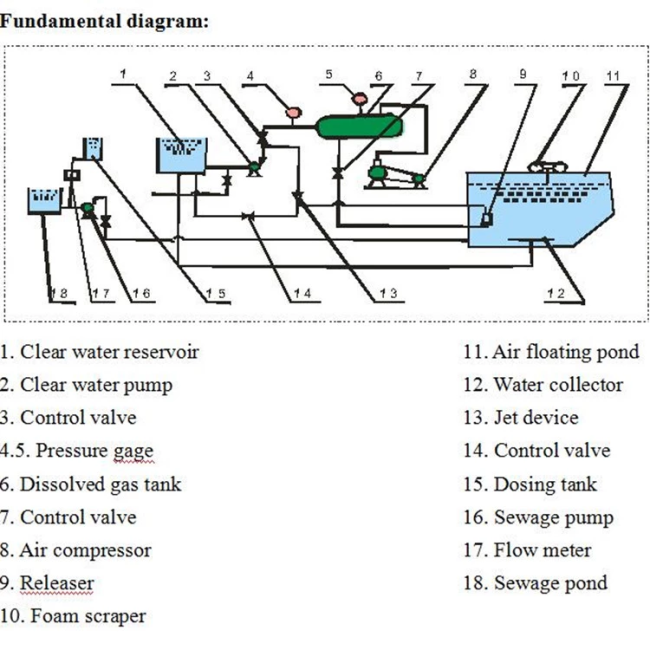

Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles with same density as waste water to make the whole float to the surface thus achieve the aim of solid-liquid or liquid-liquid separation
model | capacity(t/h) | size(mm) |
YW-50 | 40-50 | 600*260*240 |
YW-60 | 50-60 | 700*260*240 |
YW-70 | 60-70 | 760*280*240 |
YW-80 | 70-80 | 840*280*240 |
YW-105 | 90-105 | 920*280*240 |
YW-150 | 125-150 | 1000*280*260 |
used in
(1) Remove oil and TSS. (2) Separate small particles and algae in groundwater.
(3) Recover valuable products in industrial sewage
such as paper pulp.
such as paper pulp.
(4) Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.
(5) Aerate to the water while air floating, it has an obvious effect to the elimination of active agent and foul smell in water. Meanwhile,the increased dissolved oxygen provides a favorable condition to the follow-up process.
Suitable area: slaughtering, starch,pharmaceuticals, papermaking, printing and dyeing, leather and tannery, petrochemical industry, domestic wastewater, etc.
Advantages
1. Extremely high scrapping speed (2-3 times faster than conventional design) and safety operation because of using fully reverse and closed scraper.
1. Extremely high scrapping speed (2-3 times faster than conventional design) and safety operation because of using fully reverse and closed scraper.
2. High hydraulic load and low footprint because of horizontal plates in the separation zone, more effective separation and optimization hydraulic flow in the separation area.
3. Better outlet water quality because of W-shape sludge sedimentation hopper.
4. Effectively minimize chemical consumption because of re-flocculation performance of reverse scraping design.
5. No blind angle in scum collection chamber.
5. No blind angle in scum collection chamber.
