Product Description
Product Description
Car Wash System,Integrated Air Flotation And Filtration Machine For Car Wash Wastewater Recycling is used for
treating sewage with floc specific gravity close to water industries like machinery, chemical, textile, transportation and food, especially for treating oil drilling sewage, oilfield reinjected water and reinery waste water.
It adopts physical-chemical process as main technology. Combined traditional chemical method, flotation method with filter & absorb method, it boasts simple operation, wide application, compact structure, convenient installation and stable performance.It works well in separation oil and water, remove suspended particles, COD, BOD and water after treated n meet discharging standard.

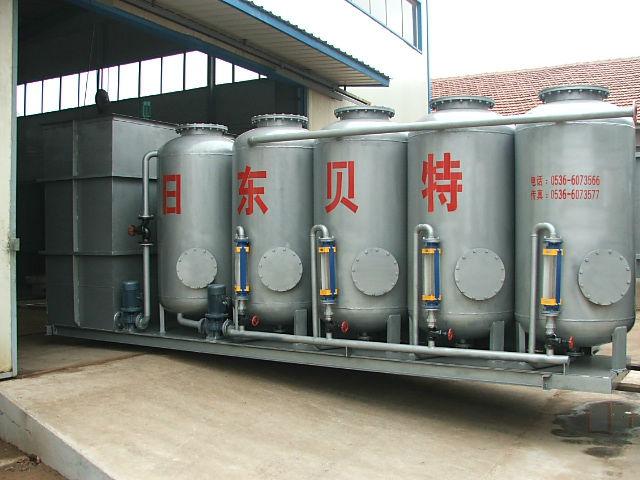

It is composed of sewage pump, measuring device, dosage tank, reaction tank, air flotation system, sand filter, active carbon absorption column and electric control system. They arefixed on the same base for machine with treating capacity less than 10t/h, if treating capacity exceeds 10t/h,these components will be transported andintalled at the side. It will auto-run after the installation.
Product Characteristics:
Filter Media:
treating sewage with floc specific gravity close to water industries like machinery, chemical, textile, transportation and food, especially for treating oil drilling sewage, oilfield reinjected water and reinery waste water.
It adopts physical-chemical process as main technology. Combined traditional chemical method, flotation method with filter & absorb method, it boasts simple operation, wide application, compact structure, convenient installation and stable performance.It works well in separation oil and water, remove suspended particles, COD, BOD and water after treated n meet discharging standard.
It is composed of sewage pump, measuring device, dosage tank, reaction tank, air flotation system, sand filter, active carbon absorption column and electric control system. They arefixed on the same base for machine with treating capacity less than 10t/h, if treating capacity exceeds 10t/h,these components will be transported andintalled at the side. It will auto-run after the installation.
Product Characteristics:
1. Full-automatic operation.
2. High efficency
3. Large capacity
4. Long life time
5. Advanced technolygy
2. High efficency
3. Large capacity
4. Long life time
5. Advanced technolygy
Filter Media:
1.quartz filter
2.active carbon filter
3. fiber ball filter
2.active carbon filter
3. fiber ball filter
Model | FLY-1 | FLY-3 | FLY-5 | FLY-10 |
Capacity | 1 | 2-3 | 3-5 | 7-10 |
Overall Size | 2300*1600*2000 | 3500*2000*2300 | 4100*2200*2500 | 7500*3000*3200 |
Power | 3.5 | 4.0 | 6.0 | 8.0 |
Inlet Pipe Dia | DN25 | DN32 | DN40 | DN65 |
Outlet ipe Dia | DN25 | DN32 | DN40 | DN65 |
Weight | 2000 | 3000 | 4500 | 8000 |
