500L/Hour CAF System Cavitation Air Flotation Machine for Oily Water Separator Design
Price:
$3,500.00/pieces 1-2 pieces
MOQ:
1
Delivery Time:
Negotiable
Brand:
BETTER
Product Description
Product Description
Cavitation Air Flotation widely used in effectively remove grease, colloid and suspended solids in wastewater, such like
papermaking, dairy, brewing, chemical, food, oil refining, pharmaceutical and petrochemical industries.
The oil removal rate is more than 80% - 90%, most of the suspended solids are removed, and the COD/BOD can be removed more than 60% in pretreatment stage after adding Coagulation and flocculation. Low cost, high efficiency , and the operation is simple. The by-products produced in the wastewater can be recycled and reused.
papermaking, dairy, brewing, chemical, food, oil refining, pharmaceutical and petrochemical industries.
The oil removal rate is more than 80% - 90%, most of the suspended solids are removed, and the COD/BOD can be removed more than 60% in pretreatment stage after adding Coagulation and flocculation. Low cost, high efficiency , and the operation is simple. The by-products produced in the wastewater can be recycled and reused.

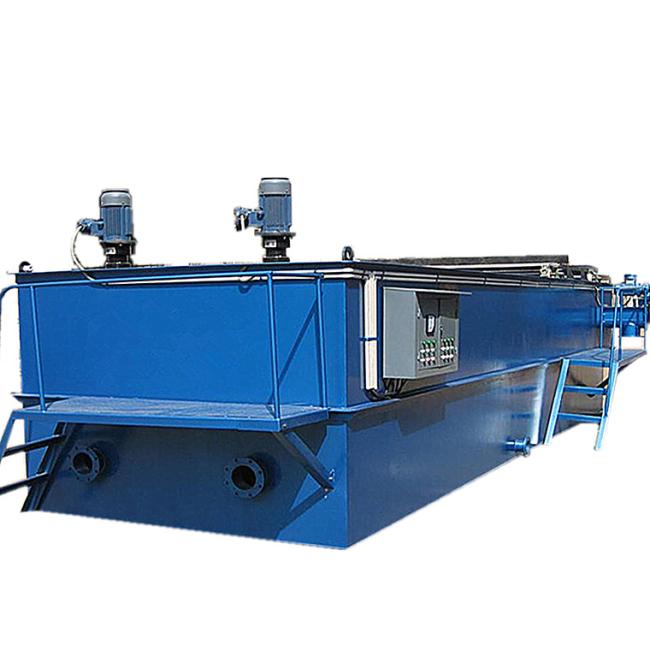

The cavitation flotation machine uses aeration and chemical flocculation to treat sewage.
Excellent results can be achieved in the treatment of industrial wastewater such as papermaking, chemical industry, printing and
dyeing, food and so on.
Advantages:
1. The size of microbubbles between5-15um, large number and high density.
2. High efficiency:microbubbles rising fast because motor high speed 1450r/min.
3. Simple structure, easy maintenance, low power and long service life.
4. Flexible capacity. Adjust the aeration rate according to the actual needs.
5. Low-cost because without air compressor and dissolved gas tank, reflux pump etc.
6. No odor: aeration is an aerobic sewage treatment process, which solves the odor in the sludge
7.Power saving: energy consumption only 1/8 of dissolved air flotation.
Excellent results can be achieved in the treatment of industrial wastewater such as papermaking, chemical industry, printing and
dyeing, food and so on.
Advantages:
1. The size of microbubbles between5-15um, large number and high density.
2. High efficiency:microbubbles rising fast because motor high speed 1450r/min.
3. Simple structure, easy maintenance, low power and long service life.
4. Flexible capacity. Adjust the aeration rate according to the actual needs.
5. Low-cost because without air compressor and dissolved gas tank, reflux pump etc.
6. No odor: aeration is an aerobic sewage treatment process, which solves the odor in the sludge
7.Power saving: energy consumption only 1/8 of dissolved air flotation.

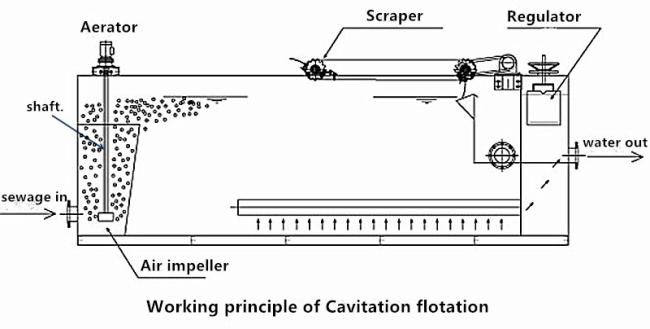

The CAF system consists of five parts: aeration , air flotation , sedimentation and discharge , scraper , scum Collection and discharge system , overflow system

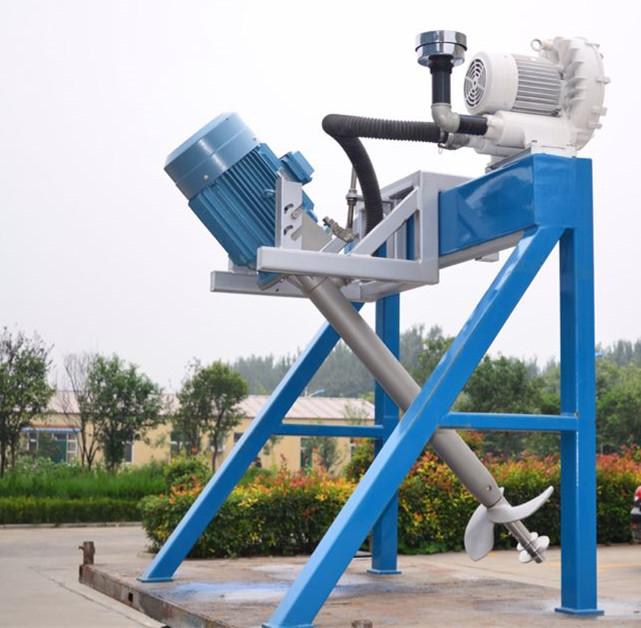

1. The sewage is stirred by motor high speed rotate, meanwhile the air is fed into the water from the central rotating shaft.

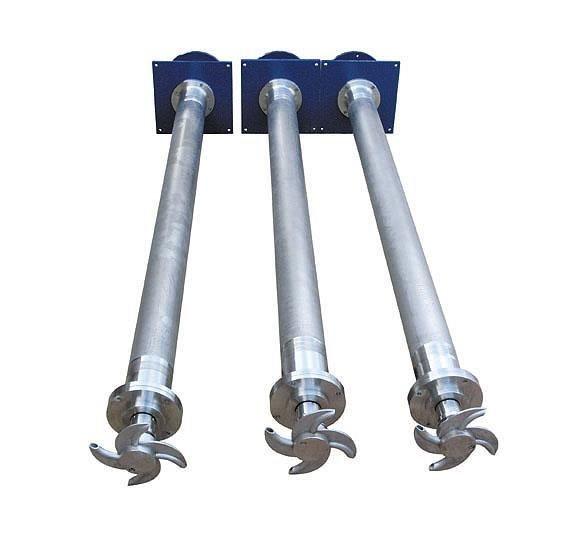

2. The micro bubbles are released from rotating impeller. and then the micro bubbles rise and stick to the suspended solids.
3. The suspended solids rise to the surface and discharged by scraper.
2. The micro bubbles are released from rotating impeller. and then the micro bubbles rise and stick to the suspended solids.
3. The suspended solids rise to the surface and discharged by scraper.

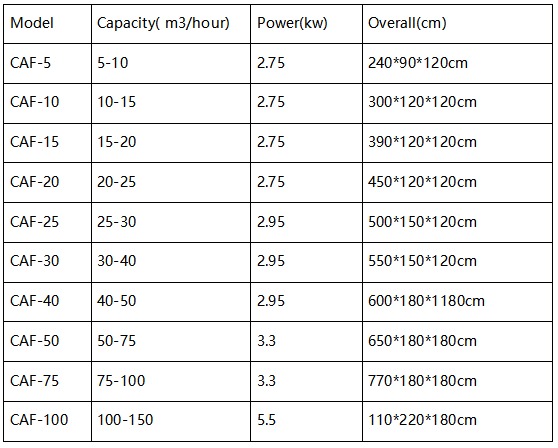

Equipment accessories
1. aerators used：1-6 piece
2. Processing capacity 5 ~ 500 m3 / h（customized）
3. Speed of aerator: 1450 r / min
4. Scraper speed: 5.16-2.58 m/min
5. Application environment: temperature 5-55 ℃, flocculant NaOH, PAC, PAM, etc
6. Oil Grease ≤ 25000 mg / L, water inlet pressure ≤ 0.1MPa
2. Processing capacity 5 ~ 500 m3 / h（customized）
3. Speed of aerator: 1450 r / min
4. Scraper speed: 5.16-2.58 m/min
5. Application environment: temperature 5-55 ℃, flocculant NaOH, PAC, PAM, etc
6. Oil Grease ≤ 25000 mg / L, water inlet pressure ≤ 0.1MPa
Material: carbon steel or SS304. We suggest that concrete structures when the flow is more than 320 m3 / hour.
