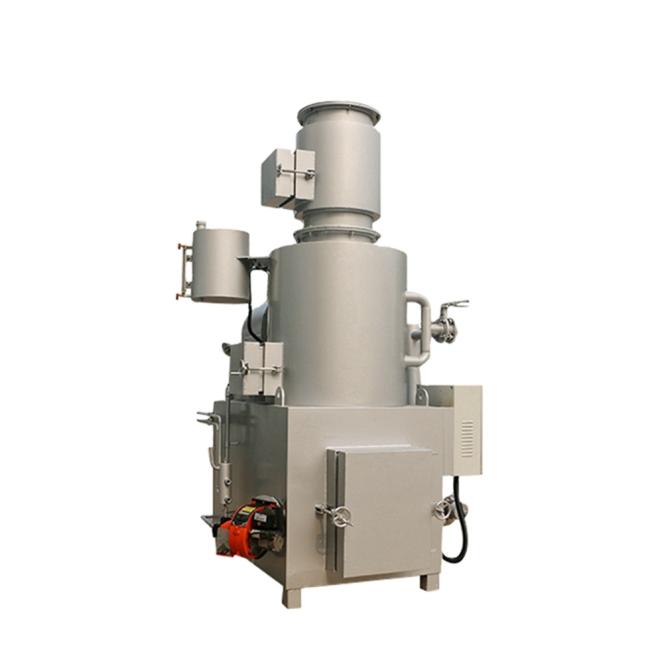

ISO 9001 Certified Combustion Waste Incinerator Machine for Solid Garbage Disposal
Price:
$2,400.00/sets 1-1 sets
MOQ:
1
Delivery Time:
Negotiable
Brand:
Better
Product Description
Product Description
☞More Details>>> Click me! @ Email Us!☜
Model | WFS-30 | WFS-50 | WFS-150 | WFS-300 | WFS-500 |
Treatment capacity | 30-50kg/time | 50-100kg/time | 150-200kg/time | 300-400kg/time | 500-600kg/time |
Incinerator dimension (L*H*B) | 1.9*1.3*2.6 | 2.1*1.4*3.05 | 2.3*1.65*3.55 | 2.45*1.8*3.77 | 3.1*2.2*4.85 |
Feeding door(mm) | 390*510 | 600*750 | 670*870 | 800*1000 | 890*1220 |
Chimney outer diameter (mm) | 273 | 273 | 273 | 273 | 425 |
Air blower | 0.25w | 0.25w | 0.55w | 0.55kw | 0.55kw |
Main burner | CX-10 | CX-10 | CX-10 | CX-26 | CX-26 |
Re-burning device | CX-14 | CX-14 | CX-14 | CX-26 | CX-26 |
Weight(kg) | 2700 | 5000 | 7000 | 8800 | 18000 |
Target Waste Type | Incinerator Temperature (℃) | Flue Gas Residence Time（S) | Burning Efficiency（%） | Heat Reduction Rate Of Incineration Residue（%） |
Hospital clinical waste | ≥800 | ≥2.0 | ≥99 | ≤5 |
Application 1.Hospital waste 2. Waste incineration plants 3.Home waste 4.Infectious diseased animal body/fur/hair 5.Industrial waste,etc Advantages 1.Long lifetime 2.Simple operation 3.Avoid secondary pollution 4. Factory directly manufacture 5.Experienced engineers guidance and technical support 6.Sound after-sales service After Sales Service 1.Online support 2.Field installation 3.Commissioning and training 4.Field maintenance and repair service 5.Video technical support
Features:
1.Enclosed structure,smokeless,avoid secondary pollution,small occupied space.
2.Thickness of refractory material is much thicker than the same product of other company, the effect of preserving heat is better.
3.Energy saving,the working of combustion-supporting system is intermittent,so it won’t consume much fuel.

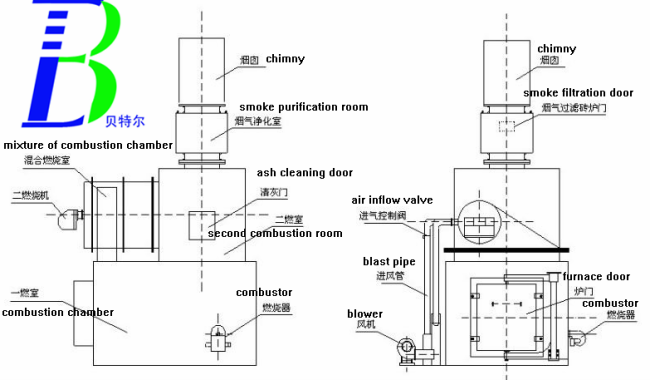

4.The machine is equipped with double chamber and double burner,under high temperature,the waste after treating can be fully decomposed,no black smoke.
5.Unique smoke purification room,its responsible for absorbing the acidic materials through calcium oxide.
6.Electric box with timer, temperature showing system and automatic ignition
7.Refractory material with Anti-rust paint,the service life is longer.
8.Inner air blower is individually controlled, protect from backfire and extend the life of burner.
9.Volume of second combustion chamber is bigger than others,so exhaust gas stays longer
10.3D installation video can be provided by us,save your cost for engineer.
Direction for use
WFS series of waste incinerators adopt the most advanced way of incinerating which is primary pyrolysis gasification+ surrounding air co-firing+ secondary incineration+ burnout treatment. The harmful components in the flue gas are reduced to meet the national GB18484-2001 and other standards.
Incinerator Characteristics
No visible smoke, no smell, no secondary pollution;
Lifetime up to 8-10 years;
Zero failure: less maintenance and operating costs;
Easy operation: easy to burn, effort-saving;
Negative pressure design,non-backfire;
Continuous feeding, and large treatment capacity;
Secondary combustion, higher temperature treatment;
High security.

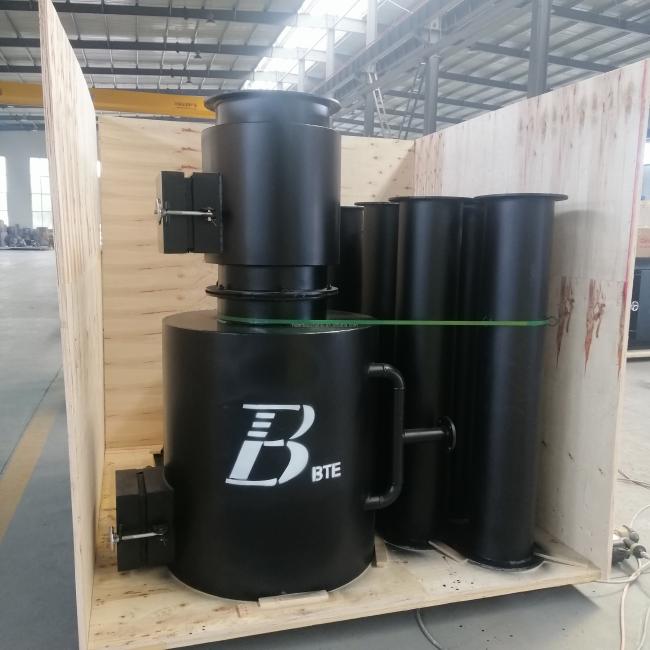

normally the incinerator will be shipped without package, but we can pack them according to cusomers' requirements.
Main Products

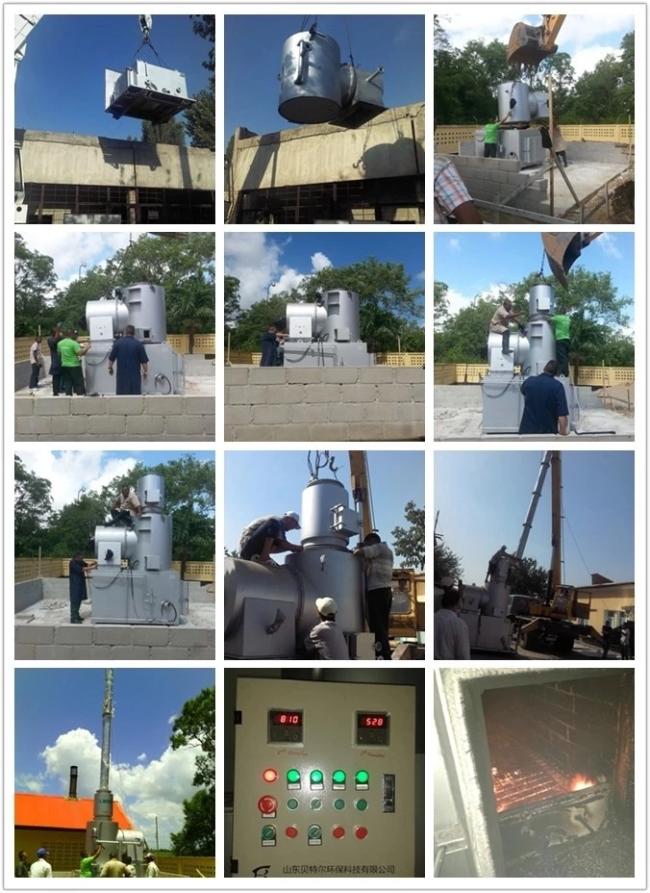

Project Case
