Permanent Iron Ore Separator Process Equipment for Mining Wet Magnetic Separator
Permanent Iron Ore Separator Process Equipment , Mining Wet Magnetic Separator for Crusher Protection
Features:
High magnetic field intensity, usually used in occasions with plenty of iron.
The wholly sealed structure makes the separator water-proof, dust-proof and corrosion resisting.
Made of rare earth NdFeB
High gauss
Energy saving
Easy to install and convenient to use.
High efficiency and stable performance.
Good operational reliability and flexibility

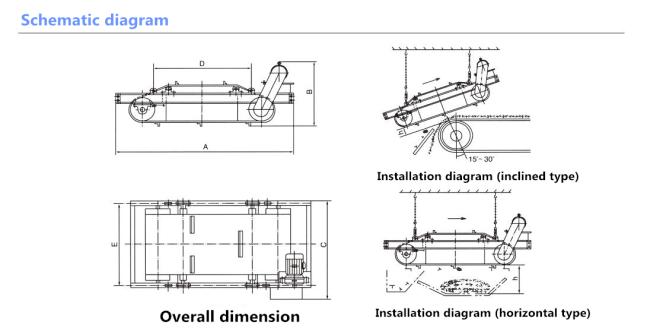

| Mode | Usable belt width (mm) | Standard erection height (mm) | Mass (kg) | Overall dimension (mm) | Unload trigger spec. | Driving motor power (kw) | ||||
|
|
|
|
| A | B | C | D | E |
|
|
| RCYD-6 | 650 | 200 | 880 | 2100 | 950 | 420 | 888 | 900 | 2.7 | 2.2 |
| RCYD-8 | 800 | 250 | 1790 | 2050 | 1105 | 650 | 1038 | 1280 | 2.7 | 2.2 |
| RCYD-10 | 1000 | 300 | 3060 | 2240 | 1310 | 785 | 1238 | 1370 | 3.3 | 2.2 |
| RCYD-12 | 1200 | 350 | 4680 | 2440 | 1585 | 875 | 1512 | 1350 | 3.3 | 4 |
| RCYD-14 | 1400 | 400 | 6600 | 2700 | 1765 | 970 | 1690 | 1550 | 4.1 | 4 |
| RCYD-16 | 1600 | 450 | 8060 | 2900 | 1965 | 1050 | 1890 | 1750 | 4.2 | 4 |
| RCYD-18 | 1800 | 500 | 10250 | 3150 | 2230 | 1150 | 2150 | 1960 | 6.8 | 5.5 |
| RCYD-20 | 2000 | 500 | 12850 | 3380 | 2460 | 1280 | 2380 | 2170 | 16 | 5.5 |
Brief Introduction:
Self-discharge permanent-magnet separator series RCYD is energy
economizing type separator equipment using the latest third generation rare-earth permanent-magnet material NdFeB
to form magnetic system which produces strong magnet field attraction.
This product series links up with transferring equipments to form a complete set to remove the iron magnetic materials
under weight of 0.1-25kg mixed among the non-magnetic materials.
