Long Service Life Electric Motor 2023 RCDD Series Dry Self-Cleaning Overband Magnetic Separator

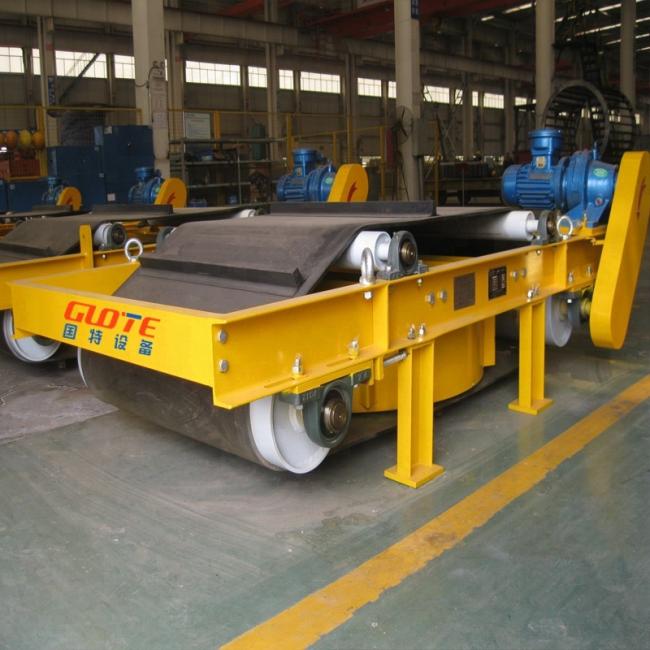

RCDD series dry self-cleaning overband magnetic separator
Summary
RCDD series self-cleaning electromagnetic separator is used for automatically removing particles and block scrap iron in the non magnetic material.It adopts electrical resin casting and self-cooling sealed structure. There are several advantages :large penetration depth, strong suction, dustproof, waterproof and corrosion resistance . Moreover, it can still work in harsh environments.
Overall and installation diagram
| MODEL | BELT WIDTH MM | RATED LIFTING HEIGHT H ≤ MM | MAGNETIC FIELD INTENSITY ≥ MT | MATERIAL THICKNESS ≤ MM | EXCITATION POWER ≤ KW | FAN POWER ≤ KW | BELT SPEED ≤ M/S | WEIGHT | DIMENSIONS MM | ||||
| A | B | C | D | E | |||||||||
| RCDD-5 | 500 | 150 | 60 | 100 | 1 | 1.5 | 4.5 | 950 | 2020 | 1040 | 775 | 853 | 1000 |
| RCDD-6 | 600 | 175 | 60 | 130 | 1.8 | 1.5 | 1380 | 2140 | 1100 | 800 | 910 | 1100 | |
| RCDD-6.5 | 650 | 200 | 70 | 150 | 2 | 2.2 | 1490 | 2275 | 1190 | 820 | 988 | 1250 | |
| RCDD-8 | 800 | 250 | 70 | 200 | 3 | 2.2 | 1770 | 2540 | 1480 | 865 | 1287 | 1350 | |
| RCDD-10 | 1000 | 300 | 70 | 250 | 4.5 | 3 | 2380 | 2750 | 1635 | 940 | 1420 | 1400 | |
| RCDD-12 | 1200 | 350 | 70 | 300 | 5.8 | 3 | 3170 | 3000 | 1800 | 1010 | 1580 | 1700 | |
| RCDD-14 | 1400 | 400 | 70 | 350 | 6.7 | 4 | 4800 | 3500 | 2050 | 1050 | 1800 | 2000 | |
| RCDD-16 | 1600 | 450 | 70 | 400 | 9.5 | 5.5 | 6300 | 3900 | 2450 | 1180 | 2200 | 2350 | |
| RCDD-18 | 1800 | 500 | 70 | 450 | 12.5 | 7.5 | 7800 | 4400 | 2850 | 1290 | 2600 | 2800 | |
