RCDB series dry type electromagnetic separator ( also named PDC Disc series or RCDY series) is one iron-ore collection device used for removing iron-ore from non miscellaneous material in powder or block shape. The internal part is electrical resin casting with self-cooling sealed structure.
Magnetic Penetration depth is higher, strong magnetic strength and anti-water/dust/ corrosion.It could be used in harsh working environment and could work with CF/CFL series suspension electromagnetic separators together.
The main performance factor is above JB/T7689-2004 standard required data and could remove 0.1 KG-5KG ferromagnetic ore from non-magnetic materials.
Automatic Cleaning Cross Belt Electromagnetic Separator for Iron Separation
Price:
$3,000.00/sets >=1 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
GUOTE
Product Description
Product Description
Introduction
Specification

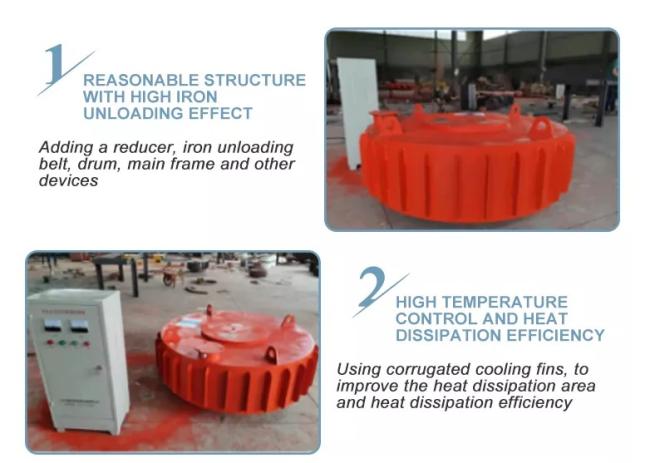

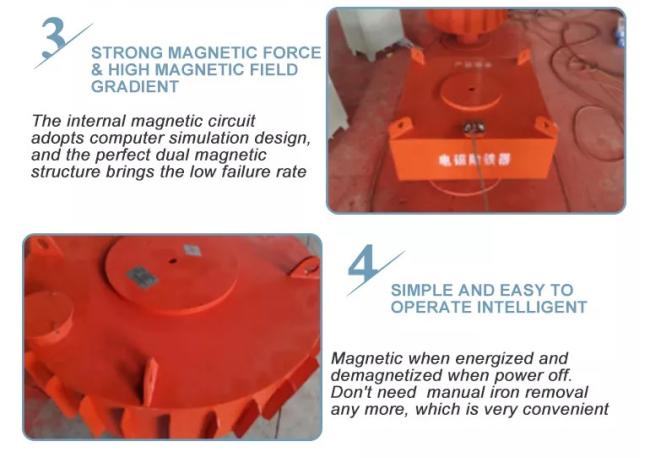

Features:
1)High magnetic field intensity, usually used in occasions with plenty of iron.
2)The wholly sealed structure makes the separator water-proof, dust- proof and corrosion resisting.
3)Made of rare earth NdFeB
4)High gauss
5)Energy saving
6)Easy to install and convenient to use.
7)High efficiency and stable performance.
8)Good operational reliability and flexibility
1)High magnetic field intensity, usually used in occasions with plenty of iron.
2)The wholly sealed structure makes the separator water-proof, dust- proof and corrosion resisting.
3)Made of rare earth NdFeB
4)High gauss
5)Energy saving
6)Easy to install and convenient to use.
7)High efficiency and stable performance.
8)Good operational reliability and flexibility
|
Model
|
Belt width (mm)
|
Magnetic strength (MT)
|
Material thickness (mm)
|
Driving power (kw)
|
Belt speed (m/s)
|
|
RCDB-6
|
600
|
60
|
120
|
1.6
|
4.5
|
|
RCDB-8
|
800
|
70
|
200
|
3.6
|
|
|
RCDB-10
|
1000
|
70
|
250
|
5
|
|
|
RCDB-12
|
1200
|
70
|
300
|
6.8
|
|
|
RCDB-14
|
1400
|
70
|
350
|
9
|
|
|
RCDB-16
|
1600
|
70
|
400
|
13
|
|
|
RCDB-18
|
1800
|
72
|
450
|
18
|
|
|
RCDB-20
|
2000
|
72
|
500
|
23
|
|
