Automatic High Gradient Magnetic Separator for Wet Fine Separation in Waste Sorting Plant

Price Negotiable
Price: $35,000.00/sets 1-4 sets
MOQ: 1 set
Delivery Time: Negotiable
Brand: GUOTE
Product Description
Product Overview

Wet Electromagnetic High Gradient Magnetic Separator Remove Impurities
from silica sand/feldspar/kaolin


FEATURES AT A GLANCE
*The rotary ring vertical rotation and recoil concentrate overcome the problem of magnetic medium blockage of the flat ring strong magnetic separator.

*A pulp high frequency vibration mechanism is set to drive the pulp to produce pulsating fluid force Under the action of pulsating fluid force, the ore particles in the pulp are always in a loose state, which can improve the quality of magnetic concentrate.

*Strengthen Type Wet Fine Separation Selection Ore Processing Magnetic Separator with large beneficiation ratio,The upper limit of feeding particle size of magnetic separator reaches 2.0mm, which simplifies the on-site classification operation and has wider adaptability.

Front elevation
Right elevation
Back elevation
PRODUCT SPECIFICATIONS
Model
GTLH-500
GTLH-750(Z)
GTLH-1000(Z)
GTLH-1250(Z)
Rated background magnetic field(T)
1(0.6)Constant current continuously adjustable
37.5KW
Magnetic field
1.9(1.2)Constant current continuously adjustable
2.8 M3
Energizing power(KW)
≤10(6)
≤13(8)
≤17(10)
≤19(12)
Handing capacity(t/h)
0.1-0.3
0.1-0.5
3.5-7.5
10-20
Slurry throughput(m3/h)
0.25-0.5
5-10
12.5-20
20-50
Magnetizing current(A)
63
72
85
92
Slurry density(%)
10-40
6750ml
Feed particle size
-1.0
-1.0
-1.2
-1.2
Ring speed(r/min)
3
Ring diameter(mm)
Φ500
Φ750
Φ1000
Φ1250
Ring motor power(KW)
0.37
0.75
1.1
1.5
Ripply motor power(KW)
0.37
2.2
3
3
Pulsion stroke(mm)
0-30(Mechanically adjustable)
Pulsion frequency
0-300(Variable frequency conversion)
Excitation voltage(DCV)
0-409(280)(Change with current)
Unloading water pressure(Mpa)
0.1-0.2
0.1-0.2
0.2-0.4
0.2-0.4
Water supply pressure(m3/h)
0.65-1.4
1.4-2.5
8-12
12-20
Host weight(t)
3(1.5)
5(3.5)
9(7)
14(11)
Maximum part weight(t)
0.3(0.25)
0.6(0.5)
2.2(2)
4(3.5)
Dimensions(mm)
1800*1400*1320
2000*1360*1680
2700*2000*2400
3200*2340*2700
PRODUCT CONFIGURATION

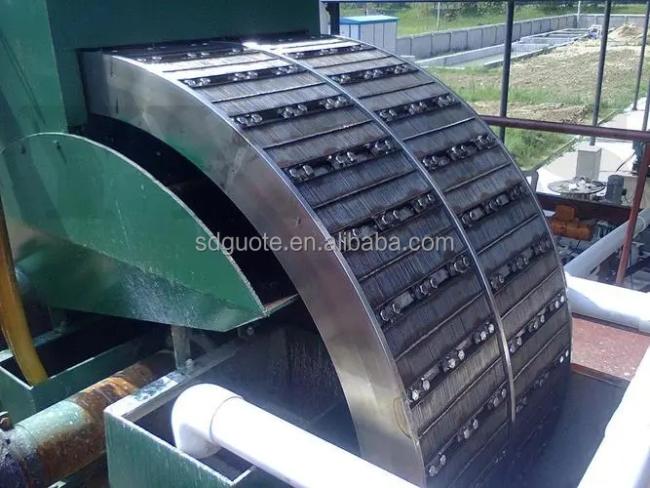

swivel
ore hopper, ore concentrate hopper
rotary drive part
SALES AND SERVICE NETWORK

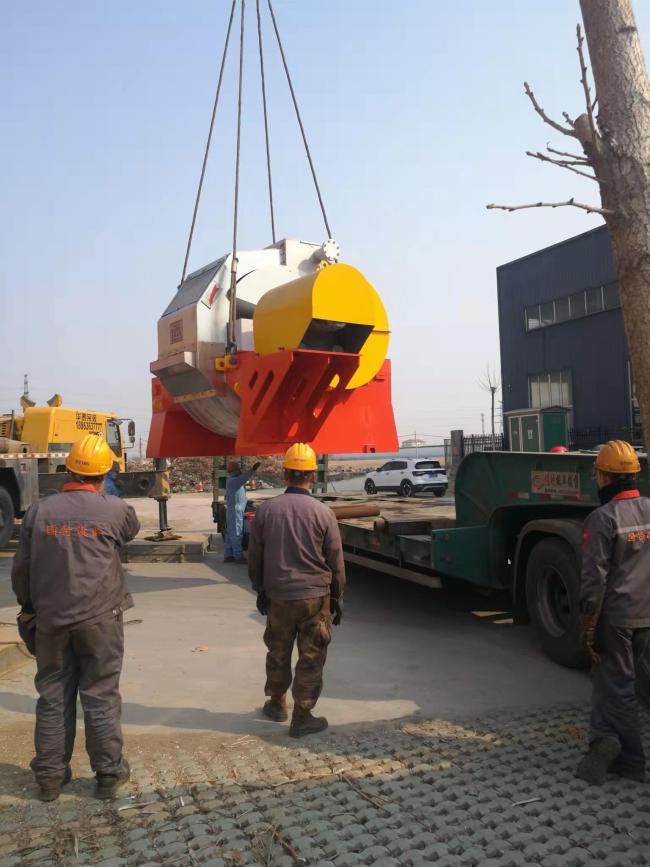

Successful Project
Project in Thailand
Project in India
Project in Dubai
SIMILAR PRODUCTS
FAQ
Q.Why we believe in Weifang GuoteMining Equipment Company?
A: 1. More than 10 years experience.

Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.
A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.

Q: Delivery time
A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part
availability.

Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.

Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the
machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

Q: What should I do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.
