Advanced KR-QFT-A Wound Patch Making Machine for Wound Dressing Plaster 220V/380V
Price:
$20,000.00 - $28,000.00/sets
MOQ:
1
Delivery Time:
Negotiable
Brand:
RuiKang
Product Description
Product Overview
We are machine factory ,export machines more than 15 years till 2024.
Application
The machine is a new computer control system, automatical high speed wound dressing making machine.Using advanced technology at
home and abroad.In the operation of the equipment, computer monitor all the way.Raw materials as followings:PU/PE/PVC/non-woven
fabric, absorbent pad, release paper.
Features:
1.High production speed: To replace the present wound dressing equipment low production efficiency and hiring huge volume of
employees greatly. Only needs one operator.
2. Euipment configuration: The machine uses of Shenzhen Adtech servo motor, Taiwan yonghong PLC control system, 10 inch touch
screen connection. Other appliances are Delixi, software programming;Technology uses the overseas advanced technique, and the
theory of our long-term practical experience in scheduling software programs.
Combined with automatic phase in the operation of the equipment.Adjust the position of absorbent pad automatically.Powder
metallurgy high speed steel hobbing cutter.Stainless outer packing.
3.Change the mould only needs 30minutes, after cutter installed, input the size which needed on computer touch screen, and then
continue production as usual.
4. Uses of magnetic powder brake, and magnetic powder clutch automatic constant tension control system, ensure the equipment
running at the high speed stability.
Application
The machine is a new computer control system, automatical high speed wound dressing making machine.Using advanced technology at
home and abroad.In the operation of the equipment, computer monitor all the way.Raw materials as followings:PU/PE/PVC/non-woven
fabric, absorbent pad, release paper.
Features:
1.High production speed: To replace the present wound dressing equipment low production efficiency and hiring huge volume of
employees greatly. Only needs one operator.
2. Euipment configuration: The machine uses of Shenzhen Adtech servo motor, Taiwan yonghong PLC control system, 10 inch touch
screen connection. Other appliances are Delixi, software programming;Technology uses the overseas advanced technique, and the
theory of our long-term practical experience in scheduling software programs.
Combined with automatic phase in the operation of the equipment.Adjust the position of absorbent pad automatically.Powder
metallurgy high speed steel hobbing cutter.Stainless outer packing.
3.Change the mould only needs 30minutes, after cutter installed, input the size which needed on computer touch screen, and then
continue production as usual.
4. Uses of magnetic powder brake, and magnetic powder clutch automatic constant tension control system, ensure the equipment
running at the high speed stability.
PRODUCT SPECIFICATIONS
Model | KR-QFT-A |
The length of the slice | Can be adjusted according to the product |
The width of the slice | 50mm-200mm or 250mm-350mm |
Production speed | 20m/min (200pcs/min) |
Total power | 3.5KW |
Machine Dimension | 2440X1050X1800mm |
Machine Weight | 1200kg |

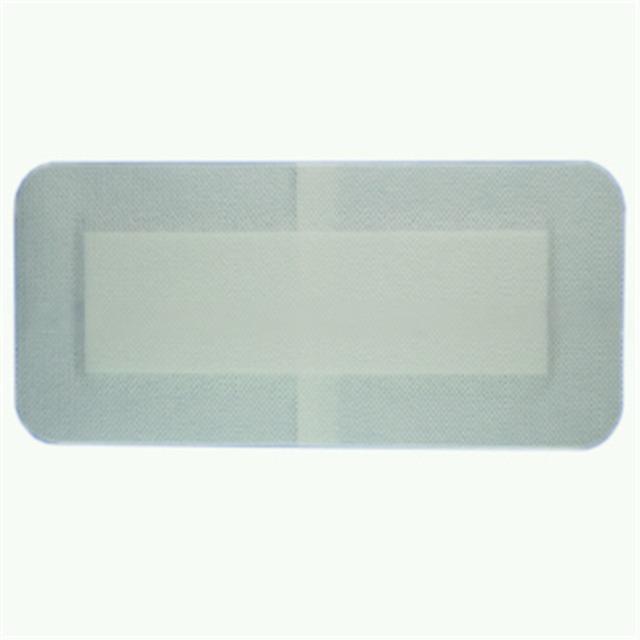

Products can be made
