Electric Driven Automatic Band-Aid Packaging Machine Fast Production
Price:
$10,000.00 - $13,500.00/sets
MOQ:
1
Delivery Time:
Negotiable
Brand:
Ruikang
Product Description
1.Use of frequency control devices, so that is easy to adjust the speed of production.

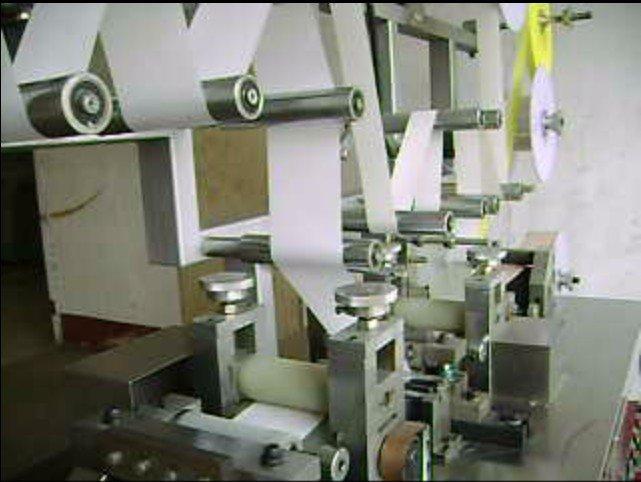

2. KC-360N-B model Multi-floating roller buffer device, so that from the shape of paper and tape at high speed while towing - strip - when the stable compound to reduce the tape deformation and damage to fight wrinkles.
3. The machine is light-control switch control solenoid can be changed any number of products moving off.
4. KC-360N-B model can easily adjust the working condition of tape, pinhole, medicine belt. Wrapping paper in the correct location.
5. KC-360N-B model drug pad tape feeding direction and walking in the same direction.
6. Machine drive with timing belt wheel drive mode. The equipment in high-speed operation and stopped smoothly, while eliminating the phenomenon of machine-inch movement and noise.
7. Equipment enclosure with stainless steel packaging, easy cleaning and maintenance in line with national health .
2. KC-360N-B model Multi-floating roller buffer device, so that from the shape of paper and tape at high speed while towing - strip - when the stable compound to reduce the tape deformation and damage to fight wrinkles.
3. The machine is light-control switch control solenoid can be changed any number of products moving off.
4. KC-360N-B model can easily adjust the working condition of tape, pinhole, medicine belt. Wrapping paper in the correct location.
5. KC-360N-B model drug pad tape feeding direction and walking in the same direction.
6. Machine drive with timing belt wheel drive mode. The equipment in high-speed operation and stopped smoothly, while eliminating the phenomenon of machine-inch movement and noise.
7. Equipment enclosure with stainless steel packaging, easy cleaning and maintenance in line with national health .
8. Technical parameters
Model KC-360N-B
Speed 300 - 360 (pcs / min)
Total Power 1.5kW
Machine dimensions 3.3 m * 0.8 m * 1.8 m(L*W*H)
Machine weight Net weight (NW): 600kgs
9. Band-Aid can be made standard
Speed 300 - 360 (pcs / min)
Total Power 1.5kW
Machine dimensions 3.3 m * 0.8 m * 1.8 m(L*W*H)
Machine weight Net weight (NW): 600kgs
9. Band-Aid can be made standard
KC-360N-B Band-Aid Automatic Packaging Machine
Band-Aid Specifications for KC-360-B
Specifications
Band-Aid Specifications for KC-360-B
Specifications
size |
speed |
pieces |
size |
speed |
pieces |
72*19mm | Pcs/min | 260-360 | 022mm | Pcs/min | 220-300 |
60*19mm | Pcs/min | 260-360 | 70*18mm | Pcs/min | 260-360 |
60*18mm | Pcs/min | 260-360 | 70*18mm | Pcs/min | 260-360 |
65*19mm | Pcs/min | 260-360 | 56*18mm | Pcs/min | 260-360 |
65*18mm | Pcs/min | 260-360 | 76*25mm | Pcs/min | 260-340 |
76*19mm | Pcs/min | 260-360 | 72*25mm | Pcs/min | 260-340 |
Substrate material type: elastic fabric, cotton fabric, PvC, PE, pinhole island type, full substrate, spun lace, calendering bonded non-woven fabric. | |||||
