Highly Integrated Technology Mucking Loader For Water Diversion Tunnel Project
Product Descripton
-The Mucking Loader for Water Diversion Tunnel Project is the new machine with highly integrated technology of optical, mechanical, electric and hydraulic which is mainy designed for water diversion tunnel project.
-Designed with the sturdy construction with high strength, it can support the machine with stable and consistent operation with outstanding performance. And it is endurable with the resistance to corruption, oxygen and water, greatly extending its service time.
-With scientific and ergonomic design, it is equipped with the comfortable seat and cab in order to reduce the labour strength of the workers. And it is convenient to use with simple operation.
-It is widely used for mining of coal mine, metal mine, non-metal mine and tunnel digging of hydropower project and subway station tunnel project and steel factory steel ladle, etc.
-Known as a enviromentally friendly products, it is green with no harmful substances, harmless to the nature and the human body. And the Mucking Loader for Water Diversion Tunnel Project has superior quality which is manfactured with strict standards to make sure its stable operation with outstanding performance
Product Specificaiton
|

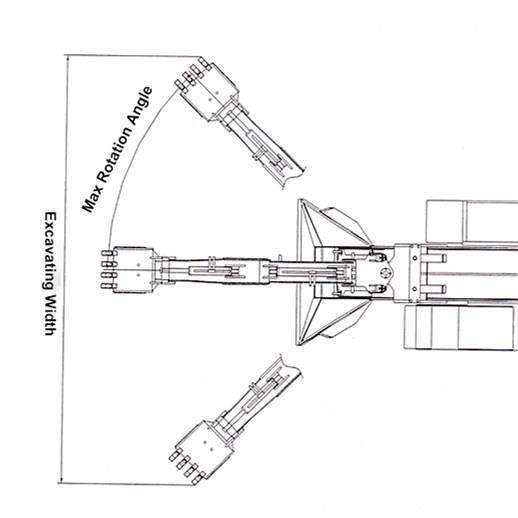

Excavating Width(mm) |
5300 |
|
Excavating Length(mm) |
1970 |
|

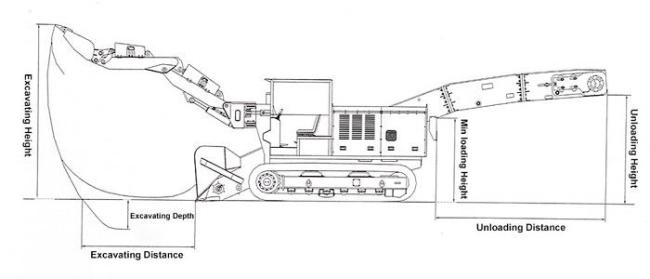

Excavating Height(mm) |
3090 |
|
Excavating Depth(mm) |
550 |
|
Unloading Height(mm) |
1760(changeable) |
|
Minimum Loading Height(mm) |
1480(Changeable) |
|
Unloading Distance(mm) |
1700(changeable) |
|
Maximum Rotation Angle(°) |
±50 |
|
Weight(T) |
10.8 |
|
Dimension(mm) |
7100x1800x2200 |
|
Loading Capacity(m³/hour) |
100 |
|
Min Turning Radius(mm) |
6000 |
|
Climbing Ability(°) |
≤32(hard ground) |
|
Travelling Speed(m/min) |
2-3.8 |
|
Applied Tunnel Gradient(°) |
≤30 |
|
Motor Power(kw) |
45 |
|
Maximum Material By Size(LxWxH) (mm) |
650x700x680 |
|
Ground Clearance(mm) |
320 |
|
Applied Working Section(W*H) (m) |
≥2.4x2.4 |
|
Nominal Working Pressure(Mpa) |
20 |
