20ft Luxury Prefabricated Houses Customizable and Expandable for Your Project Needs
Price:
$8,999.00/sets 2-14 sets
MOQ:
2 sets
Delivery Time:
Negotiable
Brand:
Shengde
Product Description
Products Description
Folded Size: 5800(L)*2200(W)*2530mm(H) Unfolded Size: 5800(L)*6400(W)*2530mm(H)
prefabricated building is a kind of custom-made modular/prefab/mobile house, which is made of two main parts; One is light gauge steel structure as bearing system, through changing its section to meet local wind and snow load condition. Another is insulation panel, doors and windows as its maintenance system. From the strength, fire-proof characters, Insulation panel could be EPS, Glass wool, Rock wool or PU color steel sandwich panel.
Regarding details, please check as follows:
Usage:
Prefabricated homes, Residence, Temporary housing, Accommodation, Camp buildings, Construction site office, Dormitory, Rest-room,Control-room, Dining hall, Classroom, Hospital, Show-room, Public accommodation, Place of recreation and so on.
Usage:
Prefabricated homes, Residence, Temporary housing, Accommodation, Camp buildings, Construction site office, Dormitory, Rest-room,Control-room, Dining hall, Classroom, Hospital, Show-room, Public accommodation, Place of recreation and so on.
Product specifications： | Folded Size: 5800(L)*2200(W)*2530mm(H) Unfolded Size: 5800(L)*6400(W)*2530mm(H) |
Name | Model |
Roof structure | Galvanized steel frame: 120mm*60mm*2.5/80mm*80mm1.5/20mm*40mm*1.0（Ceiling bracket）10*20*1.0（Water separation purlin） |
Bottom structure | Galvanized steel frame 120mm*60mm*2.5/80mm*80mm2.0/80mm*40mm2.0 |
Fold Frame | Galvanized steel frame 80mm*80mm2.0/80mm*40mm2.0//1.5mmU-shaped closure/L-type，Z-shaped water baffle |
Corner pillar | Galvanized steel pipe: 150*150*3mm/80*80*2.5 |
Hanging head | 210*160*140mmNational standard dedicated marine cast iron lifting head/Top 4 sets，Bottom 4 sets |
External wall panel | 75mm rock wool composite/EPS Sandwich cleaning plate，two-sided 0.3/0.4mm thick color steel plate |
Inner wall panel | 50/75mm thick rock wool composite board，two-sided 0.3/0.4mm thick color steel plate |
Roof slab | side 75mm EPS Sandwich board，two-sided 0.4mm thick color steel plate |
Middle top cover | 03/05/06mm thick color steel plate |
Floor | 18 calcium silicate+1.6 plastic cement/high strength bamboo wood membrane board+PVC decorative layer of floor leather |
Connection hinge | Heavy duty steel hinge 15mm、10mm |
Entrance door | KFC Gate/Aluminum alloy insulated broken bridge tempered glass 1930*2000mm |
Window | Socket type plastic steel sliding window/Aluminum alloy sliding window1100*930/rotate，one double layer tempered glass wall. |
Angular line | Wooden plastic decorative line |
Electrical System | Waterproof industrial socket（Including plug） |
Distribution box | |
Circuit breaker、Leakage protector | |
Dedicated socket | |
Approved cable | |
LED Ceiling lamp | |
Sealing Rubber Strip | Sealing tape、Aluminum foil butyl adhesive |
Accessory | Screws, etc |
Accessory | 793 structural adhesive、995 Silicone weather resistant adhesive、Transparent glass adhesive |
Bathroom | 1set closestool、1set wash basin、1set shower head、Floor drain、water supply and drainage |
Detail Display

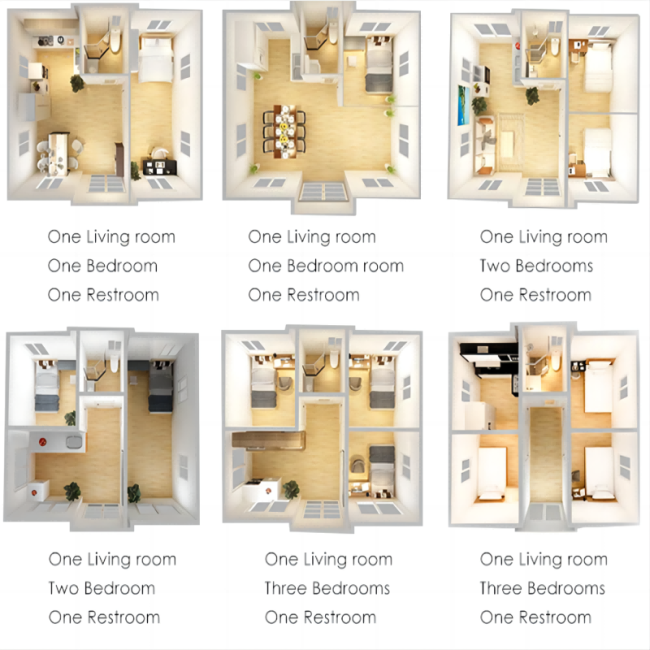

Design Layout
20ft Expanding Container House
1)Folded Size: 5800(L)*2200(W)*2530mm(H)
Unfolded Size: 5800(L)*6400(W)*2530mm(H)
Unfolded Size: 5800(L)*6400(W)*2530mm(H)
2)The color can be choose
3)the panel have eps sandwich panel ,rock wool sandwich panel
4)There is ultrahigh special size
4)There is ultrahigh special size
40ft Expanding Container House
Folded Size: 11800(L)*2200(W)*2530mm(H) Unfolded Size: 11800(L)*6400(W)*2530mm(H) 2)The color can be choose
3)the panel have eps sandwich panel ,rock wool sandwich panel
4)There is ultrahigh special size
3)the panel have eps sandwich panel ,rock wool sandwich panel
4)There is ultrahigh special size
Internal Display
Expandable Modular Prefabricated Living Container Houses
The prefabricated camp house Description:37 or 74m2
Modular Home Inside :
This pop up home has a beautiful open plan lounge and kitchen, with great size bathroom and literally folds out.
Construction and Assembly:
On average, it takes our highly skilled and experienced team 3 days to construct on site. It is fully transportable and
relocatable and can be packed up within hours with very little fuss.
Transport or relocating:
They are transported on a tilt tray and placed onto 12 foundations.
SAA Approved wiring:
You can use it as a granny flat, temporary home or you principle place of residence, and it comes with SAA approved wiring.
Framing:
The structure is galvanised steel with 75mm EPS sandwich panels, making the house very well insulated and keeping it cool in summer and warm in winter, and is compliant with an Australian engineers design certificate and form 15 for council.
The house is very homely, bright, has plenty of windows for natural light and will deliver a fantastic return on investment,however you use it.
size :
The prefabricated camp house Description:37 or 74m2
Modular Home Inside :
This pop up home has a beautiful open plan lounge and kitchen, with great size bathroom and literally folds out.
Construction and Assembly:
On average, it takes our highly skilled and experienced team 3 days to construct on site. It is fully transportable and
relocatable and can be packed up within hours with very little fuss.
Transport or relocating:
They are transported on a tilt tray and placed onto 12 foundations.
SAA Approved wiring:
You can use it as a granny flat, temporary home or you principle place of residence, and it comes with SAA approved wiring.
Framing:
The structure is galvanised steel with 75mm EPS sandwich panels, making the house very well insulated and keeping it cool in summer and warm in winter, and is compliant with an Australian engineers design certificate and form 15 for council.
The house is very homely, bright, has plenty of windows for natural light and will deliver a fantastic return on investment,however you use it.
size :
40FT size :74m2
Folded Size: 11800(L)*2200(W)*2530mm(H) Unfolded Size: 11800(L)*6400(W)*2530mm(H)
20FT size :37m2Folded Size: 5800(L)*2200(W)*2530mm(H)
Unfolded Size: 5800(L)*6400(W)*2530mm(H)
20FT size :37m2
Unfolded Size: 5800(L)*6400(W)*2530mm(H)
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Installation instructions
Company Profile
Weifang Shengde Steel Structure Engineering Co., Ltd. is located in Weifang City, China,which is a large-scale enterprise integrating R&D, production and processing.We have been deeply involved in the field of steel structure and modular housing for more than 20 years.
Shengde is committed to serving the world with temporary construction space, providing customers with first-class products and efficient services.
Customer Photos
FAQ
1. Are you a factory or trading company? A: Weifang Shengde Steel Structure Engineering Co. LTD. is a factory located in Weifang , Shandong province. 2. How can we guarantee quality? A: Strict product quality control, quality makes the future.This is the tenet of our factory. Each product from our factory has strict testing procedures, and must be 100% quality before delivery. 3. What can you buy from us? A: Container House,Prefab House,Portable Toilet,Steel Structure,Guard House,Light Steel Villa,etc. 4. Why should you buy from us not from other suppliers? A: We have over 10 years experience of manfacturering &5 years of designing experice in light steel villa,prefab building,container house etc,we produce sandwich panel,steel materials by ourselves,which ensure you the stable quality and lowest purchase expense . 5. How can I get the quotation of the project ? A: If you have drawing ,we can offer you our quotation according to your drawing . If you have no design , Our engineer will design some drawings for you to confirm. And then offer you a quotation.
6. Q: How to install? A: We will provide installation instruction and video for you.
