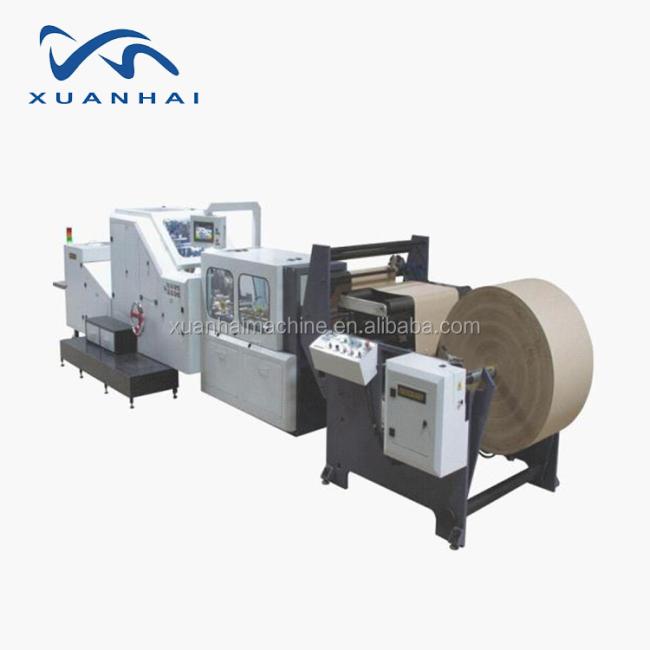

Eco Friendly Full Automatic Small Paper Bag Making Machine Spare Parts for Your Profit
Price:
$80,000.00 - $150,000.00/sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
XUANHAI
Product Description
Product Description
Structure features： 1. Introduce PLC and In-touch screen human-machine interface centralized control system, with reliable performance, easy for operation and maintenance. English/Chinese language can be changed easily. 2. Shaft less hydraulic material loading system with chuck, hydraulic up/down system 3. Automatic constant tension control for unwinding, EPC web guider system, motor for material feeding with inverter Wheel type gusset unit with motor driving. 4. Servo motors for main feeding and bag length control Closed type automatic glue application and forming system Paper impress, bottom folding, gluing and bag formation can be completed automatically. 5. Side lay working table, easy operation.
Type | CY-460 |
Paper Roll Width | 600-1300mm |
Bag Length | 155-505mm |
Bag Width | 80-290mm |
Bottom Width | 60-160mm |
Paper Weight | 80-180g/m2 |
Max. Production Speed | 180bags/min |
Max Unwinding Diameter | 1500m |
Total Power | 15Kw |
Machine Weight | 10000kg |
Machine dimensions (L*W*H) | 8600*3000*1800mm |

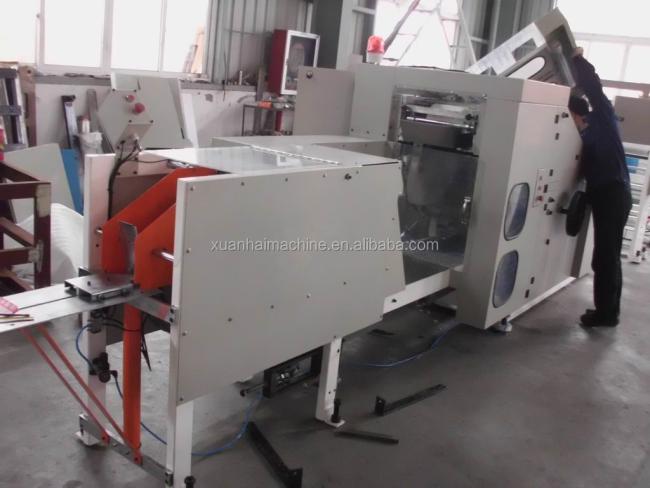

Details Images
More Products

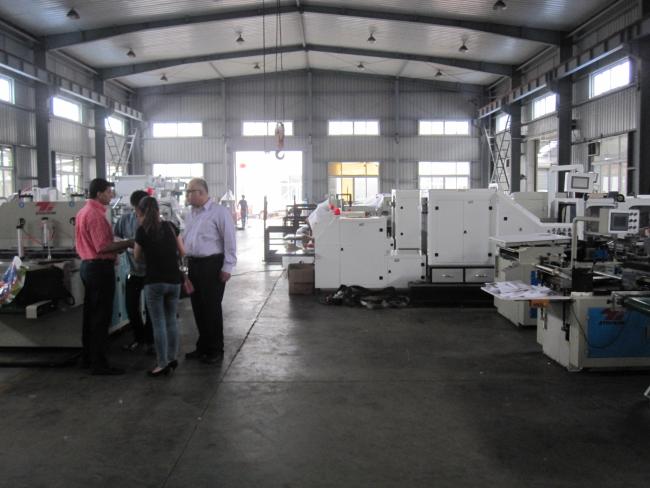

Company Profile
Our Team
Packing & Delivery
FAQ
Q1:Where is your factory located? How can I visit there? A1: Our factory is established from 1988,located in Rui an,Wenzhou City, Zhejiang Province, China, about 1 hour by air and 3-4 hours by train from Shanghai. Q2: How does your factory do regarding quality control? A2: All machines are doing 24 hours running test to ensure quality. Q3: How about the payment term? A3: 30% downpayment and pay the balance before shipment after testing the machine in our factory. Q4:What about warranty and do the engineers available to overseas? A4: one year for mechnical parts,half year for electrical parts. if you need our enginner to go to your factory,you need to bear his all costs. such as visa,hotels,eating and lodging at your side. salary USD100/day. Q5:What about the service after sale? A5: we can provide video online service or send enginner to go to your factory to do the trainning if you need.and we have english,spanish speaker. Q6: Do you need agent for overseas? A6: yes,we need you to be our agent. welcome to contact us.
