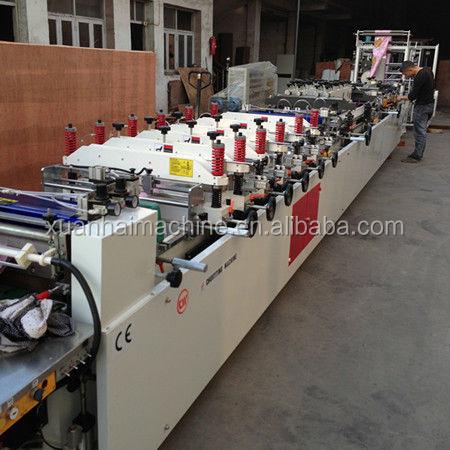

Supermarket Food Packing Three Side Sealing Zipper Bag Making Machine at 220V Voltage
Price:
$20,000.00 - $30,000.00/sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
XUANHAI
Product Description
Product Description
Model | ZD-400 |
Product name | Multi function laminated three side zipper bag making machine |
The speed of feeding | ≤45 m/min (decided according the material) |
Bag making function | three side sealing, zipper bag ,stand up bag |
Main electric scheme | 1) three servo motor for traction, with PLC used Panasonic from Japan. Touch Screen from Taiwan; main driving is alternating current with yaskawa from JAPAN Transducer, automatic constant tension for unwinding. |
Suitable material | this machine is suitable for producing multi-layer three side sealing laminated film, plating ALU laminated film, paper-plastic laminated film, pure-ALU laminated film which takes BOPP, CPP,PET, ALU, and Nylon etc plastic laminated film as base material. |
The speed of machine | 150 hypo-minute |
The speed of feeding | ≤45 m/min (decided according the material) |
The dimension of roll material | ф600*1200mm (diameter* web-width) |
Accuracy of orientation | ≤± 0.5mm |
The quantity of temperature heating | 22 |
The bound of temperature | 0-300 ℃ |
Total power | 34kw |
Overall Dimension | (L*W*H) 10000X1800X1700mm |
Weight of machine | About 4220 kg |
Machine Color | white of cover, white blue of fuselage+ red door |
The type of control system | SSF-Ⅱ High speed laminating film bag making machine control system |
solid state relay | 22 pcs |
Details Images
More Products
Company Profile
Our Team
Exhibition
Clients
Packing & Delivery
FAQ
Q1:Where is your factory located? How can I visit there? A1: Our factory is established from 1988,located in Rui an,Wenzhou City, Zhejiang Province, China, about 1 hour by air and 3-4 hours by train from Shanghai. Q2: How does your factory do regarding quality control? A2: All machines are doing 24 hours running test to ensure quality. Q3: How about the payment term? A3: 30% downpayment and pay the balance before shipment after testing the machine in our factory. Q4:What about warranty and do the engineers available to overseas? A4: One year for mechnical parts,half year for electrical parts. if you need our enginner to go to your factory,you need to bear his all costs. such as visa,hotels,eating and lodging at your side. salary USD100/day. Q5:What about the service after sale? A5: We can provide video online service or send enginner to go to your factory to do the trainning if you need.and we have english,spanish speaker. Q6: Do you need agent for overseas? A6: Yes,we need you to be our agent. welcome to contact us.
